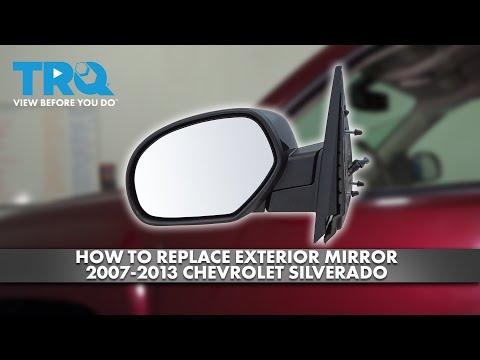

🔧 Silverado 1500 - Side View Mirror Replacement

You’ll be removing the interior door trim at the mirror area, unplugging the mirror wiring, then unbolting and swapping the mirror assembly. The left and right sides are almost identical, just mirrored.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Park the truck on level ground, shift to PARK, and set the parking brake.
• ⚠️ Turn ignition OFF and remove the key before working on the door.
• ⚠️ Disconnect the negative battery cable to avoid accidental airbag or window switch activation.
• ⚠️ Be gentle around the side airbag inside the door; do not poke or drill anywhere in the door shell.
• ⚠️ Support the mirror with one hand when taking the last nut off so it doesn’t fall and chip the paint.
• ⚠️ Use plastic trim tools instead of metal screwdrivers on visible plastic to avoid scratches.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 7mm socket
• 🧰 1/4" drive ratchet
• 🧰 1/4" drive extension (3-6")
• 🧰 Phillips screwdriver #2
• 🧰 Flat trim removal tool (plastic)
• 🧰 Panel clip removal tool (specialty)
• 🧰 Small flathead screwdriver 3-4mm
• 🧰 Needle-nose pliers
• 🧰 Torque wrench 2–20 ft-lbs range
• 🧰 Shop light or headlamp
• 🧰 Fender cover or clean towel
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Side view mirror assembly (driver side, power) - Qty: 1
• 🔩 Side view mirror assembly (passenger side, power) - Qty: 1
• 🔩 Door trim panel push clips - Qty: 6–10 (have spares)
• 🔩 Mirror mounting nuts (10mm, flanged) - Qty: 3 per mirror (reuse if undamaged)
• 🔩 Butyl seal strip or foam tape (for mirror triangle sealing) - Qty: enough for both sides
• 🔩 Dielectric grease (for electrical connectors) - Qty: small tube

---

📋 Before You Begin

• 📝 Park on a flat surface, steering wheel straight, and lower the window on the side you’re working on. Lower window helps access and prevents slamming.
• 📝 Turn ignition OFF, remove the key, and wait at least 2 minutes.
• 📝 Disconnect the negative battery cable using the 10mm socket and move the cable aside so it cannot spring back.
• 📝 Protect the paint around the mirror with a towel or fender cover.
• 📝 If your mirror has turn signal, defrost, or power-fold, match the new mirror features so the connector plugs in correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the small sail panel at the mirror base

• Use the flat trim removal tool to gently pry off the small triangular plastic cover on the inside top corner of the door, next to the mirror.
• Start at the top edge and work down; there are small plastic clips holding it. Work slowly to avoid snapping clips.
• If there is a small tweeter speaker in this panel, unplug its connector by pressing the tab with the small flathead screwdriver and pulling gently.

Step 2: Remove door panel screws

• Pry off the small plastic cover behind the interior door handle using the small flathead screwdriver to expose a screw.
• Use the Phillips screwdriver #2 to remove that screw.
• At the bottom and sides of the door panel there are several screws (usually 7mm hex heads). Use the 7mm socket and ratchet to remove all visible screws along the bottom edge and near the armrest.
• Place all screws in a small tray so you do not lose them.

Step 3: Release the door panel clips

• Slide the panel clip removal tool between the door panel and the metal door near the bottom edge.
• Feel for a clip, then twist or lever the tool to pop the clip free. You will hear a popping sound.
• Work your way around the sides and bottom of the panel until all clips are released. Lift, don’t yank, to protect clips.

Step 4: Lift off the door panel and disconnect wiring

• With all screws and clips loose, lift the door panel straight up about 2–3 cm to unhook it from the window channel.
• Support the panel with one hand and reach behind it.
• Disconnect the electrical connectors for the window/lock switch using the small flathead screwdriver to press release tabs if needed.
• If there is a cable to the inside door handle, unclip it gently with needle-nose pliers.
• Set the door panel somewhere safe where it will not fall or get stepped on.

Step 5: Expose the mirror wiring connector

• Peel back the plastic water shield near the top front of the door using your hands. Do not tear it; just pull it back enough to see the mirror wiring.
• Locate the mirror wiring connector leading up to the mirror mounting area.
• Use the small flathead screwdriver to press the locking tab, then unplug the mirror connector.
• Apply a small dab of dielectric grease to the new mirror connector pins if you have it. Grease helps prevent corrosion.

Step 6: Remove the old mirror

• From the inside of the door at the mirror area, locate the three mirror mounting nuts (10mm).
• Use the 10mm socket, ratchet, and extension to loosen all three nuts, but leave one nut threaded on a few turns to hold the mirror.
• With your free hand outside, hold the mirror housing firmly.
• Remove the last nut with the 10mm socket while still supporting the mirror.
• Carefully pull the mirror away from the door, guiding the wiring harness and grommet out of the hole.

Step 7: Prepare the mounting surface

• Wipe the mirror mounting area on the door with a clean rag to remove dirt and old sealant.
• If the old foam gasket or seal on the mirror left residue, peel it away by hand.
• If there is damage to the original seal, apply a thin bead of butyl seal strip or foam tape around the mounting area where the new mirror will sit. Good seal keeps water out of door.

Step 8: Install the new mirror

• Feed the new mirror wiring harness through the hole in the door, making sure the grommet seats correctly in the opening.
• Position the new mirror against the door from the outside, holding it with one hand.
• From inside the door, start one of the mirror mounting nuts by hand on a stud to hold the mirror in place.
• Start the remaining two nuts by hand to avoid cross-threading.
• Use the 10mm socket and ratchet to snug the three nuts evenly in a criss-cross pattern. Tighten to manufacturer spec; if you don’t have it, tighten snug but not extremely hard.

Step 9: Reconnect wiring and reinstall water shield

• Plug the new mirror connector into the body harness until it clicks.
• Gently tug on the connector to confirm it is locked.
• Reposition the plastic water shield back onto the door, pressing the adhesive all the way around to reseal it.

Step 10: Reinstall the door panel

• Reconnect all electrical connectors for the window and lock switches by hand until they click.
• Reconnect the interior door handle cable and clip it back in using needle-nose pliers if needed.
• Hook the top of the door panel over the window channel, lining it up carefully.
• Once the top is seated, push the panel straight down slightly to lock it on the channel.
• Use your hands to press around the edges of the panel to snap all the clips back into the door.

Step 11: Reinstall screws and trim pieces

• Reinstall all the door panel screws using the 7mm socket and the Phillips screwdriver #2 where required. Tighten to manufacturer spec; usually just snug is enough.
• Snap the small trim cover back behind the interior door handle by hand.
• Reinstall the small triangular sail panel by aligning the clips and pressing it firmly into place. If it has a tweeter, reconnect the tweeter connector first.

Step 12: Reconnect the battery and test

• Reconnect the negative battery cable using the 10mm socket and tighten it securely.
• Turn the ignition to RUN (engine can be off) and test all mirror functions: adjustment, heat, turn signal, and power-fold if equipped.
• If everything works, repeat the same procedure on the other side if you are replacing both mirrors.

---

✅ After Repair

• ✅ Verify both mirrors adjust correctly in all directions from the switch.
• ✅ Turn on the rear defrost and confirm heated mirrors warm up after a few minutes (if equipped).
• ✅ Turn on the hazard lights and make sure mirror turn signals flash (if equipped).
• ✅ Close the doors and drive at low speed to confirm there are no rattles from the door panel or mirror.
• ✅ Check for any wind noise around the mirror at highway speed later; if present, recheck that the mirror is fully seated and nuts are snug.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$650 per side (parts + labor)

DIY Cost: $120–$300 per side (parts only, depending on options like heat/turn signal/power-fold)

You Save: $230–$350 per side by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours per side.

---
