🔧 Escape - Side View Mirror Replacement

Replacing a side view mirror on your Escape involves removing the interior door trim panel, unplugging the mirror wiring connector, unbolting the mirror, and installing the new mirror assembly. This is a good beginner-friendly job if you work slowly and protect the door panel clips from breaking.

Difficulty Level: Beginner | Estimated Time: 1-2 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and keep the key away from the vehicle before disconnecting mirror wiring.
• ⚠️ Disconnect the negative battery cable if your mirror has power adjustment, heat, turn signal, or blind-spot features.
• ⚠️ Wear safety glasses because trim clips can pop loose suddenly.
• ⚠️ Use plastic trim tools only on the door panel to avoid scratching the interior.
• ⚠️ Support the mirror with one hand while removing the last nut so it does not fall and damage the paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• Ratchet handle
• 6-inch extension
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Phillips screwdriver
• Needle-nose pliers
• Torque wrench inch-pound range
• Painter’s tape
• Shop towel
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Qty: 1 per side
• Door trim panel clips - Qty: 3-5 recommended spares

---

📋 Before You Begin

• 🅿️ Park your Escape on level ground, shift to Park, and set the parking brake.
• 🔋 Open the hood and disconnect the negative battery cable using a 10mm socket. A negative battery cable is the black cable marked “-”.
• 🪟 Lower the window on the door you are working on. This gives you a safe handhold and better access.
• 🧼 Apply painter’s tape around the mirror base on the outside of the door to protect the paint.
• 💡 If the replacement mirror is paint-to-match, have it painted before installation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket and ratchet handle to loosen the negative battery cable clamp.
• Lift the cable off the battery post and tuck it aside so it cannot touch the post.
• Take a photo before unplugging connectors.

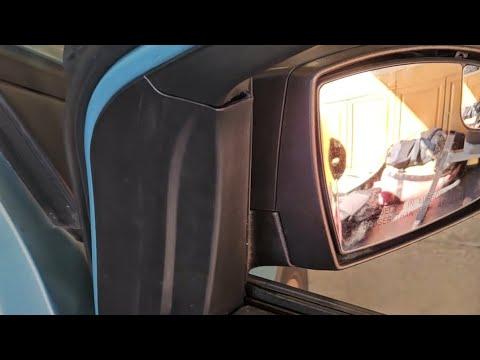

Step 2: Remove the Interior Mirror Trim Cover

• Open the front door fully.
• Use a plastic trim removal tool to gently pry off the small triangular trim cover at the inside corner of the mirror.
• A trim tool is a soft plastic pry tool that helps remove panels without scratching them.
• Set the cover aside on a shop towel.

Step 3: Remove Hidden Door Panel Covers

• Use a small flat-blade screwdriver to carefully lift the small screw cover behind the inside door handle.
• Use a small flat-blade screwdriver to remove the cover inside the door pull handle area.
• Wrap the screwdriver tip with a shop towel if needed to reduce scratches.

Step 4: Remove Door Panel Screws

• Use a 7mm socket, 6-inch extension, and ratchet handle to remove the door panel screws.
• Common screw locations are behind the inside handle cover, inside the pull handle pocket, and along the lower edge of the door panel.
• Place all screws in a small cup or on a towel so none get lost.

Step 5: Release the Door Panel Clips

• Start at the lower rear edge of the door panel.
• Use a plastic trim removal tool to pry between the door panel and metal door shell.
• Pull outward gently until the clips pop loose.
• Work around the bottom and sides of the panel one clip at a time.
• A door clip is a small plastic fastener that snaps the panel to the metal door.
• Slow pressure breaks fewer clips.

Step 6: Lift the Door Panel Up and Away

• Use both hands to lift the door panel straight upward to unhook it from the window ledge.
• Do not pull the panel far away yet because wiring and cables are still attached.
• Rest the panel close to the door while you disconnect the connectors.

Step 7: Disconnect Door Panel Wiring and Cable

• Use your fingers or a small flat-blade screwdriver to press the locking tabs on the window switch and door lock connectors.
• Pull the connectors straight out. Do not pull on the wires.
• If needed, use needle-nose pliers to carefully release the inside handle cable retainer.
• Set the door panel on a shop towel in a safe place.

Step 8: Disconnect the Mirror Wiring Connector

• Find the mirror wiring connector near the upper front inside area of the door.
• Use your fingers or a small flat-blade screwdriver to press the connector lock.
• Pull the connector apart by the plastic body, not the wires.

Step 9: Remove the Mirror Mounting Nuts

• Support the outside mirror with one hand.
• Use a 10mm socket, 6-inch extension, and ratchet handle to remove the mirror mounting nuts from inside the door.
• There are typically three mirror mounting nuts.
• Hold the mirror before removing the final nut so it does not fall.

Step 10: Remove the Old Mirror

• Guide the mirror wiring through the door opening by hand.
• Pull the mirror straight away from the outside of the door.
• Use a shop towel to clean dirt from the mirror mounting area.
• Do not scrape the paint with metal tools.

Step 11: Install the New Mirror

• Feed the new mirror wiring through the door opening by hand.
• Set the mirror studs into the door holes.
• Install the mounting nuts by hand first to avoid cross-threading.
• Use a 10mm socket, 6-inch extension, and torque wrench inch-pound range to tighten the mirror nuts to Torque to 9 Nm (80 in-lbs).
• Hand-start every nut first.

Step 12: Reconnect the Mirror Wiring

• Plug the mirror connector into the door harness by hand until it clicks.
• Gently tug the connector body to confirm it is locked.
• Route the wiring the same way it was originally placed so it will not interfere with the window glass.

Step 13: Reinstall the Door Panel

• Reconnect the window switch and lock connectors by hand until they click.
• Reconnect the inside handle cable using your fingers or needle-nose pliers.
• Hang the top of the door panel over the window ledge.
• Line up the clips with the door holes.
• Press around the edges of the panel by hand until the clips snap in.

Step 14: Reinstall Door Panel Screws and Covers

• Use a 7mm socket, 6-inch extension, and ratchet handle to reinstall the door panel screws.
• Tighten the screws snugly. Do not overtighten because the panel is plastic.
• Use your fingers to snap the small screw covers back into place.

Step 15: Reinstall the Interior Mirror Trim Cover

• Line up the triangular trim cover with its clips.
• Press it into place by hand until it snaps in.
• Remove the painter’s tape from the outside of the door.

Step 16: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and ratchet handle to tighten the clamp snugly.
• Do not overtighten the battery terminal clamp.

---

✅ After Repair

• ✅ Turn the ignition on and test mirror adjustment in all directions.
• ✅ If equipped, test mirror heat with the rear defrost button.
• ✅ If equipped, test the mirror turn signal or puddle lamp.
• ✅ Roll the window fully down and up to confirm the mirror wiring is not touching the glass.
• ✅ Check that the door lock, inside handle, outside handle, speaker, and window switch all work.
• ✅ If the auto-up window feature loses its memory, hold the window switch down until fully open, then hold it up until fully closed and continue holding for about 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 per side (parts + labor)

DIY Cost: $80-$350 per side (parts only)

You Save: $170-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours.

---
