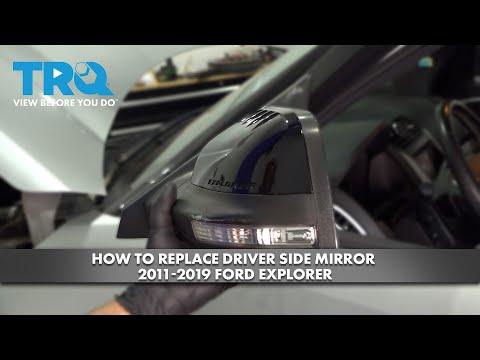

🔧 Explorer - Side View Mirror Replacement

You can replace either the entire mirror assembly (housing + motor + glass) or just the glass on your Explorer. The process mainly involves removing the door trim enough to access the mirror bolts, unplugging the wiring, and swapping parts carefully.

Difficulty Level: Intermediate | Estimated Time: 1–1.5 hours per side

---

⚠️ Safety & Precautions

• 🔸Disconnect the negative battery cable before unplugging mirror wiring to avoid shorts and airbag warnings.
• 🔸Work with the ignition OFF so power windows and mirrors do not move unexpectedly.
• 🔸Be careful near the side curtain airbag in the door area; do not poke tools deep into the door.
• 🔸Wear safety glasses and gloves; mirror glass can crack and cut you easily.
• 🔸Support the mirror with one hand when removing the last mounting nut so it does not fall and damage the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸Ratchet handle 3/8"
• 🔸8mm socket
• 🔸10mm socket
• 🔸Torx T20 screwdriver
• 🔸Torx T25 screwdriver
• 🔸Phillips #2 screwdriver
• 🔸Flathead screwdriver small
• 🔸Plastic trim removal tool set
• 🔸Needle-nose pliers
• 🔸Panel clip removal tool
• 🔸Torque wrench 3/8" drive (5–30 Nm range)
• 🔸Electrical tape
• 🔸Work light or headlamp
• 🔸Safety glasses
• 🔸Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Complete side view mirror assembly (power-fold, heated, memory, BLIS, painted cap) – left or right, Explorer Platinum - Qty: 1 per side
• 🔸Mirror glass with heating and BLIS symbol – left or right - Qty: 1 (only if your glass is damaged and you are reusing the housing)
• 🔸Door panel push clips - Qty: 6–10 (to replace any broken clips)
• 🔸Butyl seal strip or foam tape - Qty: 1 roll (if mirror area seal is damaged)

---

📋 Before You Begin

• Park the Explorer on level ground, set the parking brake, and switch ignition OFF.
• Lower the window on the side you are working on; it makes it easier to hold the mirror and remove the door panel.
• Open the hood, use a 10mm socket, and disconnect the negative battery cable from the battery. Isolate the cable so it cannot spring back.
• Have a soft blanket or towel ready under the door area in case you drop screws or the mirror.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Decide: Whole Mirror or Glass Only

• If the housing, power-fold, or blind spot indicator is damaged, replace the entire mirror assembly.
• If only the reflective glass is cracked and all functions still work, you can replace just the mirror glass.
• Steps below cover full assembly; glass-only steps are later.

Step 2: Remove Interior Sail Panel Cover

• The sail panel is the small plastic trim at the inside front corner of the window, by the mirror.
• Use a plastic trim removal tool and gently pry along the edges of the sail panel.
• Pull straight outward to release the clips; do not twist hard.
• If there is a foam pad or small speaker, set it aside carefully.

Step 3: Remove Door Panel Fasteners

• Use a plastic trim removal tool to pop off the small cover behind the inside door handle; this hides a screw.
• Use a Torx T20 screwdriver to remove the screw behind the handle.
• At the armrest/pull handle area, there may be 1–2 covered screws: pry off the small trim caps with a small flathead screwdriver.
• Remove these screws using a Torx T25 screwdriver or Phillips #2 screwdriver (Ford uses either Torx or Phillips here).
• Keep screws in a cup so you do not lose them.

Step 4: Release Door Panel Clips

• Start at the bottom corner of the door panel.
• Insert a plastic trim removal tool between the panel and the metal door.
• Pry gently to release the first clip; you will hear a pop.
• Work your way around the sides and bottom using the panel clip removal tool until all clips are loose.
• Lift the whole door panel upward to unhook it from the window ledge.

Step 5: Disconnect Door Panel Wiring

• Carefully pull the door panel a few inches away from the door.
• Unplug the window/mirror switch connector: press the locking tab with a small flathead screwdriver and pull the connector straight out.
• Unclip any courtesy light connectors at the bottom using your needle-nose pliers if needed.
• Unhook the door handle cable: rotate the plastic housing out of its holder and unclip the cable end from the handle lever.
• Set the door panel somewhere safe so you do not step on it.

Step 6: Locate Mirror Electrical Connector

• Look at the front upper corner of the door, near where the sail panel was.
• Find the wire harness going to the mirror; it ends in a multi-pin connector.
• Use a small flathead screwdriver to gently lift the locking tab and unplug the connector.
• If the wire is taped or clipped to the door, use needle-nose pliers to free it, without cutting the wire.

Step 7: Remove Mirror Mounting Nuts

• Support the mirror from the outside with one hand so it does not fall.
• From inside, use an 8mm socket and ratchet to remove the 3 mirror mounting nuts on the mirror studs.
• Keep track of the nuts; they are easy to drop inside the door.
• Once the last nut is almost off, hold the mirror firmly from outside, then remove the nut and pull the mirror away from the door.

Step 8: Remove Old Mirror and Inspect Mounting Area

• Pull the mirror wiring through the opening in the door.
• Check the paint and the foam seal on the door where the mirror sits; if the foam seal is badly damaged, plan to use butyl seal strip or foam tape on the new mirror base.
• Clean the mounting area with a clean cloth.

Step 9: Install New Mirror Assembly

• Feed the new mirror’s wire harness through the hole in the door.
• Position the mirror against the door, lining up the studs with the holes. Hold it in place with one hand from outside.
• From inside, hand-thread the 3 mounting nuts onto the studs using your fingers.
• Then tighten them using an 8mm socket and ratchet.
• Finally, use a torque wrench with the 8mm socket and tighten the nuts evenly to 8–10 Nm (6–7 ft-lbs). Do not overtighten or you can crack the mirror base.

Step 10: Reconnect Mirror Wiring

• Plug the mirror connector into the door harness until it clicks.
• If the harness had clips, reattach them to the door using your needle-nose pliers.
• Use a bit of electrical tape to secure any loose sections of wire so they do not rattle.

Step 11: Reinstall Door Panel

• Reconnect the door handle cable and snap it back into its holder.
• Reconnect the window/mirror switch connector and any courtesy light connectors.
• Hook the top of the door panel over the window ledge first.
• Once the top is seated, push around the edges with your hands to pop all the clips back into the door.

Step 12: Reinstall Door Panel Screws and Sail Panel

• Reinstall the screws behind the door handle with a Torx T20 screwdriver.
• Reinstall the armrest screws with a Torx T25 screwdriver or Phillips #2 screwdriver, depending on what you removed.
• Snap the trim caps back over the screws by hand.
• Place the sail panel back over the mirror area and push until its clips snap into place.

Step 13: Reconnect Battery and Test

• Under the hood, reconnect the negative battery cable using a 10mm socket and tighten to 8–10 Nm (6–7 ft-lbs).
• Turn the ignition ON.
• Test mirror up/down/left/right adjustment, power-fold, heating (if you can, with rear defrost), memory positions, and blind spot indicator lamp.
• If any function fails, recheck the mirror connector inside the door.

Step 14: Glass-Only Replacement (If Needed)

• Turn the mirror angle fully inward using the switch so you can reach behind the outer edge.
• Place a towel on the door to catch the glass if it falls.
• Use both hands; with your thumbs on the glass center and fingers on the housing, gently pry the outer edge of the glass up. You can also slip a plastic trim tool behind the edge and twist slightly.
• The glass is held by snap tabs to the motor plate; it will pop free.
• Carefully unplug the small heater connectors from the back of the glass using your needle-nose pliers (pull by the connector, not the wire).
• On the new glass, connect the heater terminals the same way.
• Line up the new glass with the central mounting plate and press firmly in the middle until it clicks all around.

---

✅ After Repair

• 🔸Recheck all door functions: window, lock/unlock, and door handle operation.
• 🔸Drive at low speed and check that the mirror glass does not vibrate excessively.
• 🔸Verify blind spot monitoring: have another car pass you on a safe road and confirm the indicator lights up correctly.
• 🔸If your Explorer has memory seats/mirrors, re-store your positions using the door memory buttons.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$900 per side (parts + labor)

DIY Cost: $250–$550 per side (parts only, depending on painted/option level)

You Save: $300–$400 per side by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per side.

---
