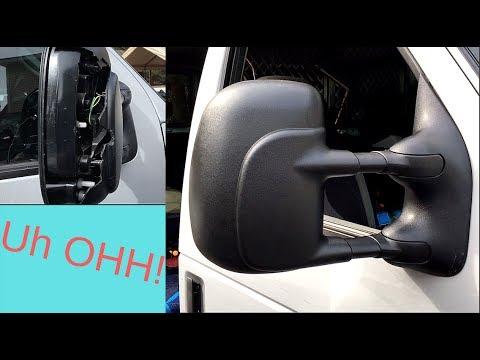

🔧 E-150 - Side View Mirror Replacement

Replacing the side mirror is usually straightforward: remove the interior trim at the front of the door, unplug the mirror (if powered), remove the mounting nuts, and swap the mirror. The only “gotcha” is that your A4—sorry—your E-150 can have different mirror types (manual vs power/heated), and the fastener sizes/torque can differ.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours (per side)

I need 2 quick details to give you the exact, factory-correct steps + torque:

• ❓ Is the mirror manual (no wiring) or power (and is it heated)?
• ❓ Which side are you replacing: driver or passenger?

---

⚠️ Safety & Precautions

• ⚠️ If your mirror is power/heated, turn the key off and disconnect the negative battery cable before unplugging door wiring.
• ⚠️ Support the mirror with one hand while removing the last nut so it doesn’t fall and chip paint.
• ⚠️ Use trim tools (not a screwdriver) to avoid cracking the interior trim.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• 8mm socket
• 10mm socket
• Torx bit set (T20-T30)
• Phillips #2 screwdriver
• Flat trim pick
• Torque wrench (in-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (correct side, correct option) - Qty: 1
• Mirror mounting gasket/seal (if not included) - Qty: 1
• Door trim panel clips (if any break) - Qty: 2-6

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the door fully for working room.
• If equipped with a power/heated mirror: use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Lay a towel on the door to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner mirror trim (“sail panel”)

• Use a plastic trim removal tool set to gently pry off the small triangular trim at the front upper corner of the door (inside).
• If it resists, check for a hidden screw and remove it with a Phillips #2 screwdriver or Torx bit set (T20-T30) (varies by build).

Step 2: Access the mirror fasteners

• Behind the sail panel you’ll see the mirror mounting studs/nuts.
• If your mirror is power/heated, locate the mirror connector and release the lock using a flat trim pick, then unplug it.

Step 3: Remove the mirror

• Support the mirror with one hand from the outside.
• Use a 1/4" drive ratchet, 3" extension (1/4" drive), and the correct socket (8mm socket or 10mm socket, depends on mirror) to remove the mounting nuts.
• Lift the mirror straight off the door and remove the old gasket if it stayed behind.

Step 4: Install the new mirror

• Place the new gasket/seal on the mirror or door (match how the original sat).
• Set the mirror in place and hand-start all nuts to avoid cross-threading.
• Tighten the nuts evenly using a 1/4" drive ratchet.
• Torque: I’ll provide the exact factory torque once you tell me manual vs power/heated (it varies). Use a torque wrench (in-lb range) to finish tightening.

Step 5: Reconnect and reassemble

• If equipped, reconnect the mirror plug until it clicks (use a flat trim pick only if needed to guide the lock).
• Reinstall the sail panel by aligning clips and pressing it back on by hand.
• If you removed screws, reinstall them with a Phillips #2 screwdriver or Torx bit set (T20-T30).

Step 6: Restore power (if applicable)

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Verify the mirror is secure by gently pushing on it (no wobble).
• If power mirror: turn the key on and test up/down/left/right adjustment.
• If heated mirror: with engine running, turn on rear defrost and confirm the mirror warms after a few minutes.
• Check that the sail panel is fully seated with no gaps or rattles.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
