🔧 Q5 - 12V Battery Replacement

Your Q5 uses a battery energy management system, so replacing the 12V battery is more than just swapping it out. You’ll remove the old battery, install the correct new one (usually AGM), then perform a battery “registration/adaptation” so charging and start/stop work correctly.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep the key/fob at least 15 feet away and ignition OFF to prevent modules waking up.
• ⚠️ Wear eye protection and gloves; batteries can vent acid and hydrogen gas.
• ⚠️ Disconnect negative (-) first and reconnect negative (-) last to reduce short-circuit risk.
• ⚠️ Do not let a tool bridge the battery terminal to body metal.
• ⚠️ Battery registration is recommended/required on most Audis to prevent charging faults and shortened battery life.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" socket extension
• Trim clip removal tool
• Torque wrench (5-60 Nm range)
• Battery terminal puller (specialty)
• OBDeleven or VCDS scan tool (specialty)
• Battery memory saver (OBD-II) (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V AGM battery (H8 / Group 49 / LN5 size, match your Ah rating) - Qty: 1
• Battery vent elbow/tube (if equipped and brittle) - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, select Park, and set the parking brake.
• Open the driver window and keep the hood open (prevents lockout if the car auto-locks).
• If you use a battery memory saver (a device that keeps power to settings), plug it into the OBD-II port before disconnecting the battery.
• Plan for battery registration: have OBDeleven/VCDS ready before you start.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

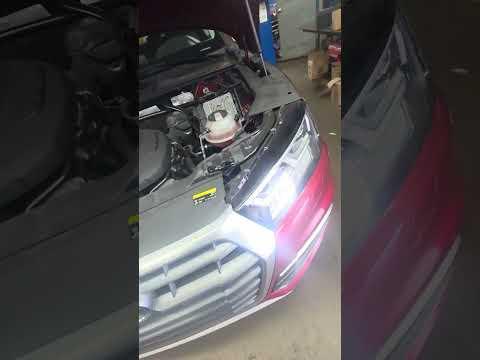

Step 1: Access the battery

• Open the hood.
• Remove the rear engine-bay plastic/cowl battery cover (if fitted) using a trim clip removal tool and/or 10mm socket (fasteners vary by cover).
• Tip: Set clips/bolts in a small cup.

Step 2: Disconnect the battery (negative first)

• Use a 10mm socket to loosen the negative (-) terminal clamp.
• Lift the negative clamp off and tuck it aside so it can’t spring back onto the post.
• Use a 10mm socket to loosen and remove the positive (+) terminal clamp (and lift it off).
• When reinstalling later: Torque terminal clamp bolts to 6 Nm (4 ft-lbs).

Step 3: Remove the battery hold-down

• At the base of the battery, remove the hold-down bolt using a 13mm socket, 3/8" ratchet, and 6" extension.
• Remove the hold-down bracket.
• When reinstalling later: Torque the battery hold-down bolt to 20 Nm (15 ft-lbs).

Step 4: Disconnect the battery vent (if equipped)

• If your battery has a small vent tube/elbow on the side, pull it out gently by hand.
• This vent routes battery gases safely—do not leave it disconnected.

Step 5: Lift out the old battery

• Lift the battery straight up and out. It’s heavy.
• If the terminals feel stuck, use a battery terminal puller (specialty) (a small tool that presses the clamp off without prying).

Step 6: Install the new battery

• Place the new battery in the tray in the same orientation as the old one.
• Reconnect the vent tube/elbow (if equipped).
• Reinstall the hold-down bracket and bolt using a 13mm socket, then Torque the battery hold-down bolt to 20 Nm (15 ft-lbs).

Step 7: Reconnect terminals (positive first)

• Install the positive (+) terminal clamp first using a 10mm socket, then Torque to 6 Nm (4 ft-lbs).
• Install the negative (-) terminal clamp last using a 10mm socket, then Torque to 6 Nm (4 ft-lbs).
• Apply a light coat of battery terminal protectant to reduce corrosion.

Step 8: Register/adapt the new battery

• Connect your OBDeleven or VCDS scan tool (specialty).
• Perform Battery Adaptation/Replacement in the Battery Energy Management module (wording varies by tool).
• Enter the new battery details (type: AGM, capacity/Ah, and a new serial number). This tells the car it has a fresh battery so it charges correctly.
• Tip: Use “0000000000” if serial is required.

Step 9: Reinstall covers

• Reinstall the battery/cowl cover using the trim clip removal tool and 10mm socket (as applicable).

---

✅ After Repair

• Start the engine and confirm no warning lights related to battery/charging remain.
• Set the clock and one-touch window function if needed (hold the window switch up for a few seconds after fully closed).
• Verify auto start/stop operation after a short drive (it may stay disabled until the system sees the battery is fully charged).
• If you did not register the battery, expect possible charging/start-stop issues and shorter battery life—registration is strongly recommended.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $200-$350 (parts only)

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
