🔧 Tundra - Rear Window Regulator Replacement

Your Tundra can mean two different “rear window” systems: the rear door windows (left/right) or the power rear cab window (the big back glass that lowers). The removal steps and parts are different, so I’ll lay out both paths below.

Quick check (reply with 1-2 answers): 1) Is it a rear door window or the rear cab back glass? 2) If it’s a rear door window, is it left or right?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working around door wiring and trim; wait 90 seconds after disconnecting (SRS precaution).
• ⚠️ Support the glass at all times. Use painter’s tape to hold it so it can’t drop.
• ⚠️ Keep fingers clear of the regulator arms/cables when powering the motor.
• ⚠️ Use jack stands if you lift the truck for access (usually not needed for this job).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool
• Panel clip pliers
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Painter’s tape (1.5" wide)
• Work light
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door window regulator assembly - Qty: 1
• Rear door window motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set
• Water shield butyl tape - Qty: 1 (if original adhesive won’t reseal)
• Rear cab power back window regulator/motor assembly - Qty: 1 (only if you mean the back glass)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window you’re working on to about halfway if it still moves (easier access to the glass fasteners).
• Disconnect the negative battery terminal using a 10mm socket, then wait 90 seconds.
• Lay a towel on the door sill / rear trim to protect paint and plastics.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which “rear window” you’re repairing

• If the glass is in a rear door, follow Path A below.
• If the glass is the big back window behind the rear seats (power drop-down), skip to Path B.

Path A — Rear Door Window Regulator (left or right)

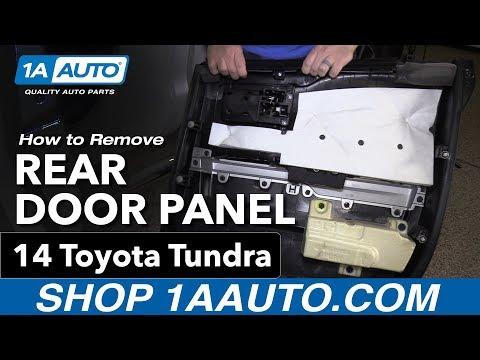

Step 2: Remove the rear door trim panel

• Pop the small trim covers using a small flat-blade screwdriver.
• Remove visible screws with a Phillips #2 screwdriver.
• Use a trim panel removal tool to pry around the panel clips (start at the bottom corner).
• Lift the panel straight up and off the window ledge.
• Unplug connectors (window switch, courtesy light) by pressing the tabs by hand.

Step 3: Remove the water shield (vapor barrier)

• Carefully peel the plastic water shield back by hand.
• If the adhesive won’t stick later, plan to use water shield butyl tape during reassembly.

Step 4: Secure the glass so it can’t drop

• Use painter’s tape (1.5" wide) to tape the glass to the door frame in 2–3 strips.
• Use long strips; short ones let go.

Step 5: Disconnect the window motor and access the glass clamps

• Unplug the motor connector by hand.
• If needed to line up bolts, temporarily reconnect the switch and battery, then move the glass/regulator to access openings; disconnect again before touching the mechanism.

Step 6: Unbolt the glass from the regulator

• Through the door access holes, remove the glass-to-regulator fasteners using a 10mm socket and 1/4" ratchet.
• Lift the glass fully up by hand and retape it securely.
• Torque to 8 Nm (71 in-lbs) on reassembly.

Step 7: Remove the regulator/motor assembly

• Remove the regulator mounting bolts using a 10mm socket and 3/8" ratchet.
• If the motor is separate, remove motor fasteners using a 10mm socket.
• Wiggle the regulator out through the largest access opening in the door.
• Torque to 10 Nm (89 in-lbs) for regulator/motor mounting bolts on reassembly.

Step 8: Install the new regulator and reconnect the motor

• Feed the new regulator into the door and hand-start bolts using your fingers first.
• Tighten with a 10mm socket and finish with a torque wrench (inch-pound).
• Plug in the motor connector until it clicks.

Step 9: Reattach the glass and check operation

• Lower the regulator carrier to the glass using the switch (battery temporarily reconnected) so the clamp holes align.
• Install the glass fasteners using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).
• Remove the tape and cycle the window fully up/down while watching for binding.

Step 10: Reassemble the door

• Re-seal the water shield (use water shield butyl tape if needed).
• Reconnect all electrical connectors by hand.
• Hang the panel on the top ledge and press clips in place (use palm pressure).
• Reinstall screws with a Phillips #2 screwdriver.

Path B — Power Rear Cab Back Window Regulator (sliding/drop-down rear glass)

Step 11: Remove rear seat and rear trim for access

• Fold/position rear seat cushions as needed to access rear trim.
• Remove rear trim fasteners using a Phillips #2 screwdriver and 10mm socket.
• Use a trim panel removal tool to release trim clips carefully.

Step 12: Disconnect rear window electrical connectors

• Unplug the rear window motor and any nearby connectors by pressing the lock tabs by hand.

Step 13: Support the rear glass and remove fasteners

• Apply painter’s tape (1.5" wide) across the rear glass to prevent sudden movement.
• Remove regulator/mounting bolts using a 10mm socket and 3/8" ratchet.
• Torque to 10 Nm (89 in-lbs) for regulator mounting bolts on reassembly.

Step 14: Remove and replace the rear window regulator/motor assembly

• Guide the assembly out carefully to avoid scratching glass or trim.
• Install the new assembly, hand-start bolts, then tighten using a torque wrench (inch-pound).
• Reconnect connectors until they click.

Step 15: Function test before reinstalling trim

• Reconnect the battery negative terminal using a 10mm socket.
• Cycle the rear window fully open/closed and listen for skipping/clicking.
• Disconnect battery again before snapping trim back in if you still need to route wiring or set clips.

Step 16: Reinstall trim and rear seat

• Reinstall trim panels by aligning clips, then pressing evenly by hand.
• Reinstall fasteners using a 10mm socket and Phillips #2 screwdriver.

---

✅ After Repair

• Verify the window moves smoothly, seals evenly at the top, and doesn’t rattle.
• Check that the door locks, handle, and speaker (if equipped in that door) work normally.
• If auto-up/down acts odd, cycle the window fully down then fully up once (basic relearn).
• Listen for wind noise on a short test drive; re-check the water shield and panel clips if you hear it.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$800 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $230-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.5 hours.

---
