🔧 Equinox - Rear Window Regulator Replacement

You’ll be removing the rear interior door panel, unbolting the window glass from the regulator, then swapping the old regulator/motor assembly for a new one. This restores smooth up/down window movement if your rear window is stuck, slow, or making grinding noises.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.0 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting to avoid accidental airbag or window motor movement.
• ⚠️ Your rear doors have side airbags; do not probe connectors or wiring with test lights or metal tools.
• ⚠️ Wear safety glasses; you’ll work close to glass and sharp door edges.
• ⚠️ Support the window glass securely (with tape or a helper) when the regulator is detached so it doesn’t drop and shatter.
• ⚠️ Work with the vehicle on level ground, in park, and parking brake firmly set.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 7mm socket
• 🛠️ Ratchet handle (3/8" drive)
• 🛠️ 3/8" drive extension (3–6")
• 🛠️ T20 Torx screwdriver
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flathead screwdriver (small)
• 🛠️ Trim removal tool set (plastic)
• 🛠️ Needle-nose pliers
• 🛠️ Panel clip removal tool (specialty)
• 🛠️ Masking tape (wide)
• 🛠️ Torque wrench (inch-lb and ft-lb, 5–30 ft-lb range)
• 🛠️ Work light or flashlight
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear window regulator with motor (left rear) - Qty: 1
• 🔩 Rear window regulator with motor (right rear) - Qty: 1 (only if doing both sides)
• 🔩 Rear door trim panel clips - Qty: 10–12 per door (have spares; they often break)
• 🔩 Butyl sealant or waterproof adhesive strip - Qty: 1 roll (for resealing vapor barrier if damaged)
• 🔩 Dielectric grease (electrical contact grease) - Qty: small tube
• 🔩 Painter’s or masking tape - Qty: 1 roll

---

📋 Before You Begin

• Park the Equinox on level ground, shift to park, and set the parking brake.
• Roll the affected rear window until you can see the glass mounting bolts through the access holes (if it will still move).
• Turn the ignition off and remove the key.
• Disconnect the negative battery cable using a 10mm socket and move the cable aside so it cannot touch the terminal.
• Open the rear door fully and make sure you have enough space to work beside it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Secure the window glass

• If the window still moves, turn ignition on briefly and lower/raise it until you see the glass mounting points through the large oval opening in the inner door metal, then turn ignition off again.
• Open the door fully and support the glass by running several strips of masking tape from the outside of the glass over the top of the door frame and down the inside.
• Use at least 4–6 long strips for safety.

Step 2: Remove rear door trim panel

• Use a small flathead screwdriver to gently pop off the plastic cover behind the interior door handle (the little trim piece).
• Remove the screw behind that cover with a Phillips #2 screwdriver or T20 Torx screwdriver (varies by build).
• Carefully pry up the power window switch trim using a trim removal tool; unplug the window switch connector by pressing the tab with your fingers.
• Remove the screw in the armrest pull pocket using a 7mm socket and ratchet.
• Along the bottom and sides of the door panel, check for additional 7mm screws and remove them with the 7mm socket if present.
• Slide a trim removal tool between the panel and metal door at the bottom edge and gently pry to release the plastic clips around the perimeter. A panel clip removal tool can help pop stubborn clips.
• Once all clips are free, lift the door panel straight up and off the window ledge, then move it slightly away from the door.
• Unplug any remaining connectors (courtesy light, if equipped) by hand, and unhook the inner door handle cable using needle-nose pliers if needed.
• Set the door panel somewhere safe where it won’t get stepped on.

Step 3: Remove the vapor barrier

• The clear plastic sheet on the inner door is the vapor barrier; it keeps water away from the interior.
• Carefully peel back the vapor barrier using your hands, starting at a corner. If the butyl adhesive is very sticky, use a trim removal tool to help lift it.
• Try not to tear the plastic; peel it back enough to expose the regulator, motor, and window glass mounts.
• Stick the loose plastic to the door above the opening.

Step 4: Detach the glass from the regulator

• Locate the two glass clamp bolts where the regulator holds the bottom edge of the glass. They are usually 10mm bolts.
• Hold the glass gently with one hand while you use a 10mm socket, extension, and ratchet to loosen (do not fully remove) both glass clamp bolts.
• Slip the glass upward out of the clamp channels by hand.
• Once free, carefully slide the glass all the way up into the frame and add more masking tape across the top to secure it firmly.

Step 5: Unplug and unbolt the regulator and motor

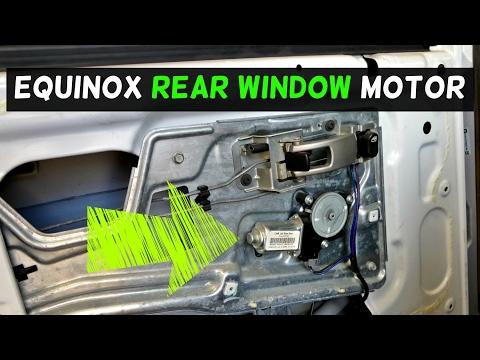

• Find the power window motor on the inner door (round or oval metal section with attached box).
• Unplug the motor electrical connector by pressing the locking tab with your fingers or needle-nose pliers and pulling straight out.
• Locate all the regulator and motor mounting bolts (usually 6–8 total, 10mm).
• Using a 10mm socket, extension, and ratchet, remove each mounting bolt and set them aside.
• Torque for reassembly: 10 N·m (89 in-lb).

Step 6: Remove the old regulator assembly

• With all bolts out and the glass secured up, carefully slide the regulator and motor assembly out through the largest opening in the inner door metal.
• You may need to tilt and rotate the assembly slightly; use both hands to avoid bending it.
• Remove the assembly from the door and place it on your workbench or the ground.

Step 7: Prepare and install the new regulator

• Compare the new regulator/motor assembly to the old one to make sure mounting points, connector, and cable layout match.
• If the new unit shipped in a “locked” position, leave any shipping bolts or clamps in place until it's inside the door, as directed by its instructions.
• Slide the new regulator assembly into the door through the same opening, aligning it with the original mounting holes.
• Install the 10mm mounting bolts by hand to start the threads and prevent cross-threading.
• Once all bolts are started, tighten them evenly with a 10mm socket and ratchet, then finish with a torque wrench to 10 N·m (89 in-lb).
• Plug the motor electrical connector back in; apply a small dab of dielectric grease inside the connector if you have it.

Step 8: Reattach the glass to the regulator

• Carefully remove only the lower part of the masking tape so you can slide the glass down, but leave some tape on top as a backup.
• Lower the glass by hand until it sits into the new regulator’s glass clamps.
• Make sure the glass edge is fully seated in the clamps and centered in the run channels (the rubber tracks at the front and rear of the glass).
• Lightly snug the glass clamp bolts with a 10mm socket and ratchet.
• Reconnect the negative battery cable temporarily: use a 10mm socket and tighten to snug (about 7–10 N·m / 62–89 in-lb).
• Turn the ignition to ON and gently run the window up and down using the door switch so the regulator self-centers and the glass settles in the channels.
• Stop with the glass in the middle of its travel, turn ignition off, and disconnect the negative battery cable again.
• Now tighten the glass clamp bolts to 10 N·m (89 in-lb) using a 10mm socket and torque wrench.

Step 9: Reinstall the vapor barrier

• Press the vapor barrier plastic back onto the door, aligning it with its original outline.
• If the original adhesive is weak, add a thin bead of butyl sealant around the opening and press the plastic into it all the way around.
• Seal completely to prevent future water leaks.

Step 10: Reinstall the door trim panel

• Reconnect any electrical connectors (courtesy light, window switch harness) by hand; make sure they click.
• Reattach the inner handle cable to the door panel handle using your fingers or needle-nose pliers if needed.
• Hook the top of the door panel over the window ledge and push it down into place.
• Align the panel clips with their holes, then press firmly around the edges with your hands to snap all clips in.
• Install any new panel clips first if you broke old ones, pressing them into the panel using your fingers.
• Reinstall all panel screws using the correct tools:
  • Armrest/pull pocket screw with 7mm socket.
  • Interior handle screw with Phillips #2 or T20 Torx screwdriver.
• Snug these screws; do not overtighten. Target about 2–3 N·m (18–27 in-lb).
• Snap the plastic covers back over the screws and press the window switch trim back into place until it clicks.

Step 11: Final reassembly and initial test

• Reconnect the negative battery cable one last time with a 10mm socket and tighten to about 7–10 N·m (62–89 in-lb).
• Turn ignition to ON and operate the rear window switch up and down several times.
• Listen for smooth motor sound and watch for smooth, straight glass travel in the frame.
• If the glass binds or tilts, stop and recheck clamp tightness and glass alignment before continuing.

---

✅ After Repair

• Cycle the repaired rear window fully up and down at least 5–10 times to confirm smooth operation.
• From the driver’s master switch, test the rear window again to ensure both switches work.
• Check the door for rattles by closing it gently several times and tapping near the panel edges.
• After the first drive in rain or after a wash, check inside the rear door area for any signs of water leaks or damp carpet.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$500 per rear window (parts + labor)

DIY Cost: $80–$150 per rear window (parts only)

You Save: $200–$350 per window by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per side.

---
