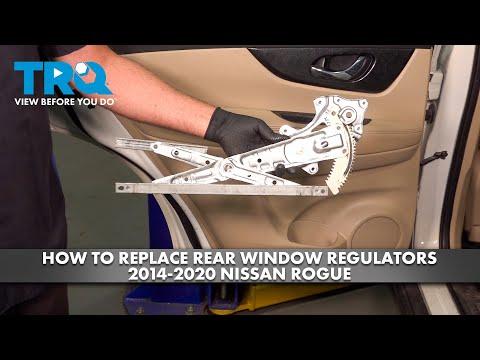

🔧 Rogue - Rear Window Regulator Replacement

You’ll be removing the rear door trim, unbolting the glass from the regulator, then swapping in a new rear window regulator and motor assembly on your Rogue. This restores proper window movement when it’s slow, stuck, or grinding.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before unplugging window motor connectors to avoid accidental window movement.
• ⚠️ Support the glass securely with tape before loosening its mounting bolts so it doesn’t drop and shatter.
• ⚠️ Work with the ignition OFF; do not turn key/Start button on while the regulator is unbolted.
• ⚠️ Use plastic trim tools to avoid damaging the interior door panels and clips.
• ⚠️ Keep fingers clear of regulator arms and cable tracks; they can pinch if they move suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Ratchet handle 3/8"
• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ 3/8" drive extension (3–6")
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flathead screwdriver (small)
• 🛠️ Trim removal tool set (plastic)
• 🛠️ Needle-nose pliers
• 🛠️ T20 Torx screwdriver
• 🛠️ Panel clip pliers (specialty)
• 🛠️ Utility knife
• 🛠️ Masking tape (1" or 2")
• 🛠️ Multimeter
• 🛠️ Torque wrench 3/8" drive (5–30 ft-lb range)
• 🛠️ Shop rags
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear left window regulator with motor assembly - Qty: 1
• 🔩 Rear right window regulator with motor assembly - Qty: 1
• 🔩 Rear door vapor barrier butyl tape/sealer - Qty: 1 roll
• 🔩 Rear door trim panel clips - Qty: 10–15 (have extras)
• 🔩 Rear door glass mounting bolts (10mm) – optional - Qty: 2 per door
• 🔩 Rear window regulator mounting bolts – optional - Qty: 5–6 per door

---

📋 Before You Begin

• 📝 Park the Rogue on level ground, shift to Park, and set the parking brake.
• 📝 Lower the rear window you’re working on until you can just see the glass mounting bolts through the inner opening; if the regulator is dead, skip this and you’ll move the glass by hand later.
• 📝 Turn ignition OFF and remove the key, or push the Start/Stop button to fully off.
• 📝 Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot touch the post.
• 📝 Open the rear door fully for better access and lighting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove door handle and visible screws

• Use a trim removal tool to gently pry off the small plastic cover behind the interior door handle (the part you pull to open the door).
• Remove the screw behind that cover using a Phillips #2 screwdriver.
• Use the trim removal tool to pop up the small trim piece around the window switch on the rear door.
• Lift out the switch panel and disconnect its electrical connector by pressing the locking tab with a flathead screwdriver and pulling gently.
• Remove any screw hidden under the switch panel using a Phillips #2 screwdriver.

Step 2: Remove rear door trim panel

• Starting at the bottom edge of the door, slide a trim removal tool between the door panel and the metal door frame.
• Pry outwards to release the plastic clips; move along the edge until all clips pop free. Work slowly to avoid breaking clips.
• Once all sides are loose, lift the door panel straight up to unhook it from the top edge at the window.
• Reach behind and disconnect the door handle cable from the interior handle: use needle-nose pliers to rotate the cable end out of its slot and unclip the sheath from its bracket.
• Disconnect any remaining electrical connectors (courtesy light, etc.) by hand or with a flathead screwdriver.
• Set the door panel aside in a safe place.

Step 3: Remove vapor barrier and expose regulator

• The thin plastic sheet on the metal door is the vapor barrier. Carefully peel it back using your hands and a trim removal tool to help separate the sticky butyl sealer.
• Do not tear it if you plan to reuse it; if it’s damaged, you’ll reseal with new butyl tape later.
• Use a utility knife to cut only the sealer if it’s very stuck, not the plastic itself.
• Fold the vapor barrier up and tape it temporarily out of the way with masking tape.

Step 4: Secure the glass

• If the window is still partly down, gently push it up by hand until it is fully closed.
• Use masking tape on the outside of the door: run 3–4 strips from the glass over the top of the door frame and down the inside to hold the glass securely.
• Use plenty of tape; glass is heavy.

Step 5: Position glass to access mounting bolts (if regulator still moves)

• If your regulator still works somewhat, briefly reconnect the window switch and battery negative cable using a 10mm socket.
• Turn the ignition ON and lower or raise the window until the two glass mounting bolts are visible through the large access openings in the inner metal panel.
• Turn ignition OFF, disconnect the battery negative again with the 10mm socket, and unplug the switch.

Step 6: Loosen glass mounting bolts and separate glass

• Locate the two glass-to-regulator clamps/bolts through the access holes.
• Use a 10mm socket and ratchet to loosen each glass mounting bolt 3–4 turns so the glass can slide out of the clamp. Do not fully remove the bolts.
• With one hand supporting the glass at the bottom edge, gently lift it straight up out of the clamps.
• Slide the glass fully into the top of the door frame and secure it again with several layers of masking tape over the top of the door.

Step 7: Disconnect window motor and remove regulator bolts

• Locate the window motor on the inner metal panel (round/oval shape where the cables meet).
• Press the tab on the motor connector and unplug it by hand or with a flathead screwdriver.
• Use a 10mm socket and ratchet to remove the regulator mounting bolts around the tracks and motor—usually 5–6 bolts.
• Also remove any smaller screws (T20 Torx) if your regulator uses them, with a T20 Torx screwdriver.
• Torque for reinstallation: 8–10 Nm (6–7 ft-lb) for regulator bolts.

Step 8: Remove the old regulator assembly

• Once all bolts are removed, support the regulator assembly with one hand.
• Carefully maneuver the regulator and motor out through the largest opening in the inner door skin. Rotate it as needed to clear the openings.
• Note the orientation of the old regulator so you install the new one the same way. A quick phone photo helps.

Step 9: Install the new regulator assembly

• Feed the new regulator and motor into the door cavity in the same orientation as the old one.
• Align the mounting holes in the tracks and motor with the threaded holes in the door.
• Hand-thread all regulator bolts using your fingers to avoid cross-threading, then snug them with a 10mm socket and ratchet.
• Using a torque wrench and 10mm socket, tighten the regulator mounting bolts to 8–10 Nm (6–7 ft-lb).
• Reconnect the motor electrical connector by hand until it clicks.

Step 10: Reattach the glass to the new regulator

• Peel back only the top tape enough to let the glass move, but keep some tape ready in case.
• From inside the door, gently lower the glass by hand until it rests in the new regulator clamps.
• Make sure the glass sits evenly in both clamps and is centered in the window frame. Uneven glass can bind or squeak.
• Use a 10mm socket to tighten the two glass mounting bolts.
• Use a torque wrench and 10mm socket to tighten glass bolts to 8–9 Nm (6–7 ft-lb).
• Remove the remaining masking tape from the glass and door frame.

Step 11: Test the window operation (before closing door)

• Reconnect the rear window switch electrical connector by hand.
• Reconnect the battery negative cable using a 10mm socket.
• Turn ignition ON.
• Run the window up and down several times using the rear switch.
• Check that the glass moves smoothly, doesn’t tilt, and seals fully at the top.
• If the window binds or makes noise, turn ignition OFF and re-check the glass alignment and regulator bolt tightness with a 10mm socket and torque wrench.
• Once satisfied, turn ignition OFF and disconnect the battery negative again with the 10mm socket before reassembly.

Step 12: Reinstall vapor barrier

• Reposition the vapor barrier over the door, lining up holes for bolts and wiring.
• If the original butyl sealer is no longer sticky, apply new strips of butyl tape around the edges by hand.
• Press the vapor barrier firmly all the way around with your fingers or a trim removal tool handle to create a good seal. This prevents water leaks and wind noise.

Step 13: Reinstall door panel

• Reconnect all electrical connectors (switch panel, courtesy light) by hand until they click.
• Reattach the interior door handle cable to the handle: clip the sheath into its bracket and hook the cable end back into place using needle-nose pliers.
• Hang the top of the door panel on the top edge of the door, aligning it with the window sill.
• Once hung, press the panel straight toward the door so the clips line up with the holes.
• Use your palms to firmly push around the edges until all clips snap back into place.
• Reinstall the screws you removed earlier with a Phillips #2 screwdriver (switch area, handle area).
• Push the trim covers back into place by hand (behind the handle, around the switch).

Step 14: Final electrical reconnection and test

• Reconnect the battery negative cable with a 10mm socket and tighten securely. Torque to 5–7 Nm (4–5 ft-lb).
• Turn ignition ON.
• Test the rear window switch on that door: up and down several times.
• Test the rear window operation from the driver’s main switch as well.
• Listen for any scraping or rattling inside the door; if heard, remove the panel and re-check regulator and glass alignment.

---

✅ After Repair

• ✅ Confirm the window fully closes and opens smoothly without hesitation.
• ✅ Check from outside for good seal against the weatherstrip at the top and sides.
• ✅ Drive at low speed with the window closed and listen for new rattles or wind noise from that door.
• ✅ Re-check door lock and handle functions to ensure no cables or wiring were pinched.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per rear window (parts + labor)

DIY Cost: $90–$180 per rear window (parts only)

You Save: $260–$370 per window by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per door.

---
