🔧 Tacoma - Rear Window Regulator Replacement

We’ll go through how to remove the interior trim, take out the old window regulator, and install a new one on your Tacoma so the rear window rolls up and down smoothly again. I’ll keep terms simple and explain any unusual tools.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging any door wiring to avoid short circuits.
• ⚠️ Support the glass securely with tape before removing the regulator so it doesn’t drop and shatter.
• ⚠️ Work with the truck on level ground, in park, parking brake fully engaged.
• ⚠️ Avoid slamming doors with the door panel removed; you can damage the glass or new regulator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Ratchet handle 3/8"
• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 Short socket extension 3"
• 🧰 Phillips #2 screwdriver
• 🧰 Flathead screwdriver small
• 🧰 Trim removal tool plastic (specialty)
• 🧰 Needle-nose pliers
• 🧰 Painter’s tape 1–2"
• 🧰 Torque wrench 3/8" drive (for tightening bolts precisely)
• 🧰 Work light LED
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear door window regulator (left side) - Qty: 1
• 🔩 Rear door window regulator (right side) - Qty: 1
• 🔩 Rear door inner water shield plastic (vapor barrier) - Qty: 2 (only if damaged)
• 🔩 Rear door panel clips - Qty: 10–20 (have extras; they break easily)
• 🔩 Multipurpose grease - Qty: small tube
• 🔩 Masking/painter’s tape - Qty: 1 roll

---

📋 Before You Begin

• 🧭 Park your Tacoma on a flat surface, shift to neutral, then into gear (1st) and set the parking brake.
• 🔌 Turn ignition OFF and remove the key.
• 🔋 Disconnect the negative battery terminal using a 10mm socket and move the cable aside.
• 🚪 Open the rear door you’re working on fully to give yourself room.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which window and type

• 🧰 Make sure you are working on a rear door window regulator (the rear side doors), not the sliding rear glass in the cab.
• If you meant the sliding rear cab window regulator, stop here and tell me so; that is a different procedure.

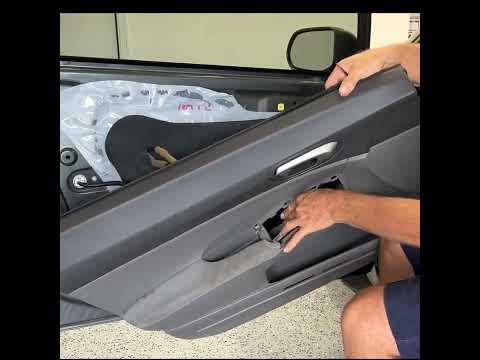

Step 2: Remove rear door trim panel

• 🧰 Use the trim removal tool plastic to gently pry off the small plastic cover inside the interior door handle (behind the lever).
• 🧰 Use the Phillips #2 screwdriver to remove the screw hidden behind that cover.
• 🧰 Pry up the armrest switch panel (if the rear doors have power switches) with the trim removal tool plastic and unplug the connector by hand.
• 🧰 Look along the bottom edge of the door panel for any visible screws and remove them with the Phillips #2 screwdriver.
• 🧰 Starting at the bottom corner, slide the trim removal tool plastic between the panel and metal door, then pop the plastic clips around the perimeter.
• When all clips are free, lift the door panel straight up to unhook it from the top edge, then set it aside.

Step 3: Remove the water shield (plastic sheet)

• 🧰 Carefully peel back the plastic water shield using your hands and a flathead screwdriver small to lift the adhesive edge.
• Only peel back the area needed to access the regulator and glass; don’t tear it if possible.
• If you rip it badly, replace it to prevent water leaks.

Step 4: Secure the window glass

• 🧰 Turn the ignition ON temporarily and reconnect the window switch to move the glass so you can access the glass-to-regulator bolts through the service holes.
• Once in position, turn ignition OFF again, disconnect the switch, and disconnect the battery negative if you reattached it.
• 🧰 Use painter’s tape to tape the glass to the door frame from outside to inside, using at least 3–4 strips along the top edge.
• Use more tape than you think; glass is heavy.

Step 5: Separate glass from regulator

• 🧰 Look through the access holes to see the clamp or bolts that attach the regulator to the glass.
• 🧰 Use a 10mm socket with ratchet handle 3/8" to loosen and remove the glass mounting bolts.
• Once the bolts are out, gently lift the glass by hand and make sure the tape is holding it firmly to the top frame.

Step 6: Unplug and unbolt the old regulator

• 🧰 Follow the wiring harness to the window motor and press the tab to disconnect the electrical connector by hand or with needle-nose pliers if needed.
• 🧰 Use a 10mm socket and ratchet handle 3/8" to remove all regulator and motor mounting bolts around the inner door metal.
• Keep track of bolt locations; some may be slightly different length. Lay them out on the floor in a pattern.
• Carefully wiggle the regulator and motor assembly out through the largest opening in the door.

Step 7: Prepare and install the new regulator

• 🧰 Compare the new regulator to the old one on a bench to confirm same shape, same bolt holes, and same electrical connector.
• 🧰 Apply a light film of multipurpose grease to the regulator tracks and sliders using your finger or a small piece of cardboard.
• 🧰 Feed the new regulator and motor into the door cavity and line up bolt holes with the door.
• 🧰 Install the regulator and motor mounting bolts by hand, then tighten them using a 10mm socket and ratchet handle 3/8".
• Torque to 8–10 Nm (6–7 ft-lbs) – snug but not overly tight.

Step 8: Reattach glass to regulator

• 🧰 Reconnect the motor electrical connector by hand until it clicks.
• 🧰 Temporarily reconnect the window switch and the negative battery cable using a 10mm socket.
• Turn ignition ON, and using the switch, lower or raise the regulator so the glass mounting points align with the regulator clamps/holes, but keep the glass supported by tape.
• Peel back enough tape to lower the glass gently into the regulator clamps.
• 🧰 Install the glass bolts using a 10mm socket and ratchet handle 3/8".
• Torque to 8–10 Nm (6–7 ft-lbs).
• Cycle the window up and down slowly using the switch to be sure it moves smoothly and doesn’t bind. Hold the glass lightly with your other hand the first time.
• Turn ignition OFF and disconnect the battery negative again with the 10mm socket before reinstalling the panel.

Step 9: Reinstall the water shield

• 🧰 Press the plastic water shield back into place with your hands, lining up original holes and edges.
• If adhesive is weak, you can add a small amount of painter’s tape or butyl sealant to reseal it.

Step 10: Reinstall the door panel

• 🧰 Hang the top of the door panel on the upper lip of the door by lifting it into place.
• Push the panel inward so the clips line up with the holes in the door.
• 🧰 Using your hands, smack around the perimeter of the panel with the heel of your palm to seat all clips. Replace any broken clips with new ones first.
• 🧰 Reinstall any bottom and handle screws with the Phillips #2 screwdriver.
• 🧰 Reconnect the window/lock switch connector by hand and snap the switch panel back in using the trim removal tool plastic if needed.
• Snap the small trim cover back over the interior handle screw by hand.

Step 11: Final checks

• 🧰 Reconnect the negative battery cable fully with the 10mm socket and ratchet handle 3/8". Torque to 5–7 Nm (4–5 ft-lbs) – just snug.
• Turn ignition ON and test the rear window several times: full up, full down, stopping mid-way.
• Listen for grinding, clicking, or rubbing noises and make sure the glass sits evenly in the frame.
• Repeat the procedure on the other side if you’re replacing both regulators.

---

✅ After Repair

• 🔁 Cycle each repaired window 5–10 times to confirm smooth movement and no sticking.
• 💧 After the next wash or rain, check inside the rear doors for any signs of water getting past the water shield.
• 🔊 Listen while driving over bumps for rattles from the rear doors; recheck panel clips if you hear anything.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per rear door (parts + labor)

DIY Cost: $90–$180 per rear door (parts only)

You Save: $260–$370 per door by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per door.

---
