🔧 4Runner - Rear Window Regulator Replacement

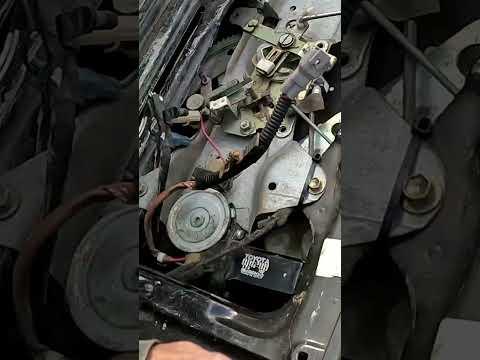

The rear window regulator is the cable-and-track assembly that moves the rear door glass up and down. If the window is stuck, crooked, makes crunching noises, or the motor runs but the glass doesn’t move, the regulator is typically worn or broken.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per rear door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator arms/cables when powered.
• ⚠️ Support the window glass with tape before unbolting it so it can’t drop.
• ⚠️ Work on level ground with the key out of the vehicle.
• ⚠️ If you disconnect any electrical connectors, avoid turning the key on until reconnected.
• ⚠️ Battery disconnect: Recommended—remove negative battery terminal before starting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Torque wrench (in-lb or low Nm range)
• Phillips #2 screwdriver
• Plastic trim clip remover (specialty)
• Plastic pry tool set
• Needle-nose pliers
• Painter’s tape (1"-2" wide)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1 (per door)
• Rear window motor - Qty: 1 (only if your new regulator does not include motor)
• Door panel trim clips - Qty: 6-12 (as needed)
• Butyl tape for vapor barrier - Qty: 1 (as needed)

---

📋 Before You Begin

• Park the 4Runner on level ground and open the rear door you’re working on.
• Lower the rear window to about halfway if it still moves (this lines up the glass bolts with the access holes).
• Disconnect the negative battery terminal using a 10mm socket.
• Have painter’s tape ready to hold the glass up once it’s unbolted.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch panel

• Use a plastic pry tool set to gently pry up the window switch panel.
• Unplug the switch connector by pressing the tab and pulling it straight out.

Step 2: Remove the rear door trim panel

• Remove any visible screws using a Phillips #2 screwdriver.
• Use a plastic trim clip remover (specialty) to pop the panel clips free (this tool slides under the panel and lifts the push-clips without breaking them).
• Lift the door panel straight upward to unhook it from the top edge near the window.
• Unplug any remaining connectors (courtesy light, etc.).

Step 3: Peel back the vapor barrier

• Carefully peel the plastic moisture barrier back using a plastic pry tool set.
• Try to keep the sticky butyl intact; if it strings out, you’ll reseal it later with butyl tape.
• Don’t rip the barrier—water protection matters.

Step 4: Secure the glass so it cannot fall

• If the glass is still attached, support it with several strips of painter’s tape from the outside of the glass over the door frame to the inside.
• If the window is stuck down, be ready to hold the glass with your hands while you unbolt it, then tape it in the “up” position.

Step 5: Unbolt the glass from the regulator

• Through the access openings in the door, locate the two glass-to-regulator fasteners.
• Use a 10mm socket with a 1/4" ratchet and 6" socket extension to remove the fasteners.
• Carefully push the glass fully up by hand, then re-tape it securely in the full-up position.
• Reinstall fasteners at assembly: Torque to 9 N·m (80 in-lbs).

Step 6: Disconnect the window motor/regulator electrical connector

• Unplug the motor connector by pressing the lock tab and pulling straight out.
• Use a work light so you can see the connector lock clearly.

Step 7: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket, 1/4" ratchet, and 6" socket extension.
• Rotate and maneuver the regulator out through the largest service opening.
• Reinstall mounting bolts at assembly: Torque to 8 N·m (71 in-lbs).

Step 8: Transfer the motor (only if needed)

• If your replacement regulator does not include the motor, remove the motor screws/bolts from the old regulator using a 10mm socket (or Phillips #2 screwdriver if your motor uses screws).
• Install the motor onto the new regulator and tighten evenly.
• If your fasteners are 10mm bolts: Torque to 6 N·m (53 in-lbs).

Step 9: Install the new regulator

• Position the new regulator into the door and start all bolts by hand first.
• Tighten regulator bolts with a 10mm socket and finish with a torque wrench (in-lb or low Nm range): Torque to 8 N·m (71 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 10: Reattach the glass to the regulator

• Carefully lower the glass by hand until the mounting points line up with the regulator clamps/holes.
• Install the glass fasteners using a 10mm socket and finish with a torque wrench (in-lb or low Nm range): Torque to 9 N·m (80 in-lbs).
• Remove the painter’s tape once the glass is securely bolted.

Step 11: Quick function check before reassembly

• Reconnect the negative battery terminal using a 10mm socket.
• Plug in the window switch and test the window up/down.
• If the glass tilts forward/backward, loosen the regulator bolts slightly with a 10mm socket, align, then re-torque: Torque to 8 N·m (71 in-lbs).
• Disconnect the battery again using a 10mm socket before reinstalling the vapor barrier and panel.

Step 12: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the butyl; add butyl tape where needed.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the top edge first, then press clips in around the perimeter by hand.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using a plastic pry tool set to align it.

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Cycle the rear window fully down and fully up 5–10 times to confirm smooth travel and no clicking.
• Listen for cable popping noises; if heard, stop and recheck that the glass is seated squarely in the regulator clamps.
• Check that the vapor barrier is fully sealed to prevent water leaks into the cabin.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per rear door)

DIY Cost: $120-$320 (parts only, per rear door)

You Save: $330-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
