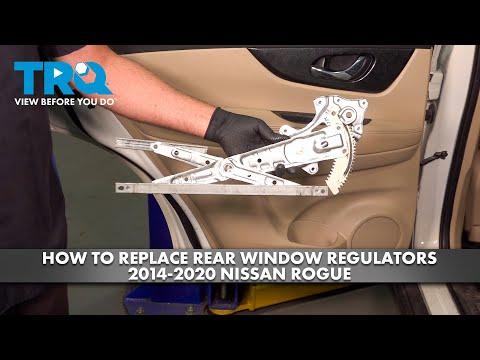

🔧 Rogue - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track mechanism that raises and lowers the rear window glass. Replacement usually means removing the rear door trim panel, securing the glass, swapping the regulator (and motor if needed), then reassembling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging any door wiring to reduce airbag/short-circuit risk.
• ⚠️ Wear gloves—inner door metal edges can be very sharp.
• ⚠️ Support the window glass with tape/suction cups before loosening the glass clamps, or it can drop suddenly.
• ⚠️ Do not tear the water shield (vapor barrier); it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm ratchet
• 6-inch socket extension
• Phillips #2 screwdriver
• Trim clip removal tool
• Pick tool
• Needle-nose pliers
• Torque wrench (5–30 Nm range)
• Painters tape (1–2 inch wide)
• Suction cup glass holder (specialty)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (correct side) - Qty: 1
• Rear window regulator motor (if not included) - Qty: 1
• Door panel trim clips (rear) - Qty: 6-12
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key fob away from the vehicle.
• Lower the affected rear window to about halfway (if it still moves). This gives access to the glass-to-regulator clamps.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take photos of each connector and clip.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a pick tool to gently pop the small covers hiding screws (usually in the inner handle and armrest area).
• Remove the exposed screws using a Phillips #2 screwdriver.
• Use a trim clip removal tool to pop the door panel clips around the edges.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug the switch/lighting connectors (use the pick tool to press the lock tabs if needed).

Step 2: Remove the water shield (vapor barrier)

• Carefully peel back the water shield by hand.
• If the adhesive won’t release, use the pick tool to help separate the butyl without tearing the shield.
• Set it aside clean-side up so it doesn’t pick up dirt.

Step 3: Secure the window glass

• If the glass is still connected and movable, temporarily reconnect the window switch connector, reconnect the battery, and “bump” the switch to position the clamp bolts in the access holes. Then disconnect the battery again using the 10mm socket.
• Hold the glass in place using painters tape (1–2 inch wide) run from outside the glass over the door frame and back down (use 2–4 strips).
• If available, add a suction cup glass holder (specialty) for extra security. (A suction cup glass holder is a handle that sticks to glass so you can safely control it.)

Step 4: Disconnect the glass from the regulator

• Through the door access holes, use a 10mm socket with a 6-inch socket extension to loosen/remove the glass clamp bolts.
• Carefully lift the glass upward by hand until it is fully up in the frame.
• Add more painters tape to lock the glass in the full-up position.

Step 5: Remove the regulator/motor assembly

• Unplug the window motor electrical connector.
• Use a 10mm socket and 10mm ratchet to remove the regulator and motor mounting bolts.
• Remove the assembly through the largest opening in the inner door.
• Torque on install: Torque to 8 Nm (71 in-lbs) for typical 10mm regulator/motor bolts.

Step 6: If needed, transfer the motor to the new regulator

• If your new regulator does not include a motor, remove the motor screws/bolts from the old regulator using a 10mm socket or Phillips #2 screwdriver (varies by part).
• Install the motor onto the new regulator.
• Torque on install: Torque to 6 Nm (53 in-lbs) for typical motor fasteners.

Step 7: Install the new regulator

• Feed the new regulator into the door and align it to the mounting points.
• Start all bolts by hand first to avoid cross-threading.
• Tighten using a 10mm socket and finish with a torque wrench (5–30 Nm range): Torque to 8 Nm (71 in-lbs).
• Plug in the motor connector.

Step 8: Reattach the glass to the regulator

• Carefully lower the glass into the regulator clamps (remove tape slowly while holding the glass).
• Install/tighten the glass clamp bolts using a 10mm socket.
• Torque: Torque to 8 Nm (71 in-lbs).
• Keep fingers out of pinch points.

Step 9: Function test before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• Temporarily plug in the window switch and run the window up/down several times.
• Listen for clicking/grinding and verify the glass stays centered in the run channels.
• Disconnect the battery again with the 10mm socket before final assembly.

Step 10: Reinstall the water shield and door panel

• Press the water shield back into the butyl. If the adhesive is damaged, apply butyl tape and press firmly.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the upper ledge, then press the clips in place around the edges.
• Reinstall screws using a Phillips #2 screwdriver.
• Reinstall trim covers by pressing them in by hand.

---

✅ After Repair

• Reconnect the battery using a 10mm socket and confirm the rear window works from both the rear switch and the driver master switch.
• If the window has one-touch/auto behavior and it acts “confused,” initialize it: hold the switch fully DOWN for 5 seconds after it’s fully open, then hold fully UP for 5 seconds after it’s fully closed.
• Spray water on the outside of the window and check inside the door area for leaks (the water shield must seal well).
• Verify the door opens/closes normally and that no clips rattle.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor, per door)

DIY Cost: ₹3,000-₹10,000 (parts only, per door)

You Save: ₹5,000-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
