🔧 ES350 - Rear Window Regulator Replacement

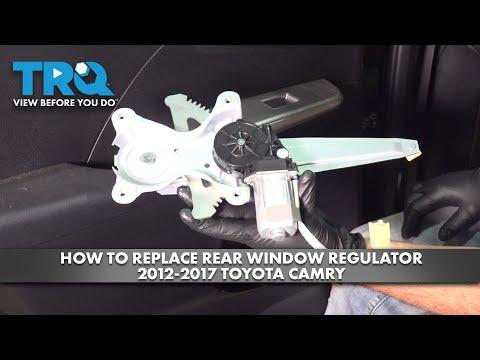

The rear window regulator is the cable-and-rail mechanism that raises and lowers the rear door glass. Replacing it means removing the rear door trim panel, securing the glass, swapping the regulator assembly, then re-initializing the window so auto-up/down works correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Assumption: Your ES350 uses a bolt-in rear regulator with a separate door-mounted window motor (common on this model).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring to reduce risk of short circuits.
• ⚠️ Support the window glass securely—if it drops, it can shatter and cut you.
• ⚠️ Keep fingers clear of the scissor/cable track while testing; regulators can pinch hard.
• ⚠️ Use eye protection when popping trim clips; they can release suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4")
• Phillips #2 screwdriver
• Trim removal tool set (non-marring)
• Pick tool (small)
• Torque wrench (in-lb or low-range ft-lb)
• Painters tape (1.5" wide)
• Magnetic parts tray
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (Left or Right, match the door) - Qty: 1
• Rear door trim panel clips - Qty: 6-12
• Butyl tape (for resealing vapor barrier) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the rear door fully and lower the window if it still moves (it makes removal easier).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Get painters tape ready—you’ll use it to hold the glass up in the fully closed position.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch trim

• Use a trim removal tool set (non-marring) to carefully pry up the window switch bezel.
• Unplug the switch connector(s) by pressing the tab with a pick tool (small), then pulling straight out.

Step 2: Remove hidden screws in the door panel

• Use a pick tool (small) to pop off the small plastic covers in the pull handle / inner handle areas (if equipped).
• Remove the screws using a Phillips #2 screwdriver (some doors may use 10mm bolts instead—use a 10mm socket if so).
• Torque spec note: If your panel uses 10mm bolts, Torque to OEM specification on reassembly (fasteners vary by position).

Step 3: Release the door panel clips and lift the panel off

• Start at the bottom edge. Use a trim removal tool set (non-marring) to pop the panel clips free one-by-one.
• Once loose, lift the entire panel straight upward to unhook it from the window ledge.
• Unplug any remaining connectors (courtesy light if equipped). Use a pick tool (small) to press tabs.
• Tip: Pull near each clip to avoid panel cracking.

Step 4: Remove the vapor barrier (water shield)

• Use your hands and a trim removal tool set (non-marring) to peel the vapor barrier back slowly.
• Try not to tear it. If the butyl is messy, wear mechanic gloves.
• Set it aside where it won’t pick up dirt.

Step 5: Secure the window glass in the up position

• If the glass is up: run 2–3 long strips of painters tape (1.5" wide) from the outside of the glass, over the door frame, and down the inside to hold it.
• If the glass is stuck down: you’ll need to carefully raise it by hand after loosening the clamps in Step 6, then tape it up.
• Tip: Use multiple tape strips—glass is heavy.

Step 6: Unbolt the glass from the regulator clamps

• Through the door access holes, locate the two glass clamp bolts.
• Use a 10mm socket with a 3" extension (1/4") and 1/4" drive ratchet to loosen/remove the clamp bolts.
• Carefully push the glass fully up by hand and re-tape it securely.
• Torque spec note: On reassembly, Torque to OEM specification for glass clamp bolts to prevent glass damage.

Step 7: Remove the regulator assembly

• Unplug the window motor/regulator electrical connector (press tab using a pick tool (small)).
• Remove the regulator mounting bolts using a 10mm socket, 3" extension (1/4"), and 1/4" drive ratchet.
• Carefully maneuver the regulator out through the largest access opening in the door.
• Place bolts in a magnetic parts tray so you don’t lose them.

Step 8: Install the new regulator

• Slide the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand to avoid cross-threading.
• Tighten with a 10mm socket and 1/4" drive ratchet, then finish with a torque wrench (in-lb or low-range ft-lb) to Torque to OEM specification.
• Reconnect the electrical connector until it clicks.

Step 9: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly, but keep one strip supporting it.
• Lower the glass carefully into the regulator clamps (by hand).
• Install and snug the clamp bolts using a 10mm socket.
• Final tighten with a torque wrench (in-lb or low-range ft-lb) to Torque to OEM specification.
• Tip: Tighten evenly—don’t twist the glass.

Step 10: Re-seal the vapor barrier and reinstall the door panel

• Use butyl tape to re-stick any areas that no longer seal.
• Hang the door panel on the top window ledge first, then press clips in around the edges using your hands.
• Reinstall screws using a Phillips #2 screwdriver (or 10mm socket if your door uses bolts).
• Reconnect the switch connector(s) and snap the switch bezel back using a trim removal tool set (non-marring).

Step 11: Reconnect the battery and initialize the rear window

• Reconnect the negative terminal using a 10mm socket.
• Turn ignition ON.
• Initialize (common Lexus procedure): hold the rear window switch to fully lower the window, keep holding for 2 seconds; then pull to fully raise, keep holding for 2 seconds.
• Test one-touch/auto function and the window lockout.

---

✅ After Repair

• Cycle the rear window up/down 5–10 times and listen for clicking, binding, or cable popping.
• Check that the glass seats evenly against the upper weatherstrip and doesn’t tilt forward/back.
• Verify the vapor barrier is sealed all the way around (this prevents water leaks into the cabin).
• If the window moves backward/forward as it rises, loosen clamps slightly, align, then re-torque to OEM specification.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per rear door)

DIY Cost: $90-$220 (parts only, per rear door)

You Save: $260-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
