🔧 Patriot - Rear Window Regulator Replacement

The rear window regulator is the lift mechanism inside the rear door that raises and lowers the glass. Replacement involves removing the rear door panel, securing the glass, swapping the regulator assembly, and then re-aligning the glass so it moves smoothly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Assumption: Torque specs listed are common OEM-range values; if your fasteners/specs differ, follow the factory service spec for your A4—(not applicable) for your Patriot.

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the window tracks and scissor/cable mechanism during testing.
• ⚠️ Support the glass with tape before loosening the clamps, or the glass can drop suddenly.
• ⚠️ Disconnect the negative battery cable if you’ll have the switch plugged in while hands are inside the door.
• ⚠️ Don’t tear the vapor barrier (water shield); it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool (plastic)
• Phillips screwdriver #2
• Torx T20 screwdriver
• Torx T30 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Torque wrench (inch-pound, 20–200 in-lb)
• Torque wrench (ft-lb, 10–80 ft-lb)
• Painter’s tape (1.5" wide)
• Pick tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included)
• Rear door trim panel clips - Qty: 6-10 (as needed)
• Butyl tape (vapor barrier sealant) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and keep the door fully open.
• Lower the rear window about halfway if it still moves (this helps access the glass clamps).
• If you’ll be reconnecting the switch to test movement with the panel off, disconnect the battery first: use a 10mm socket to remove the negative terminal and isolate it.
• Lay a towel on the door sill to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

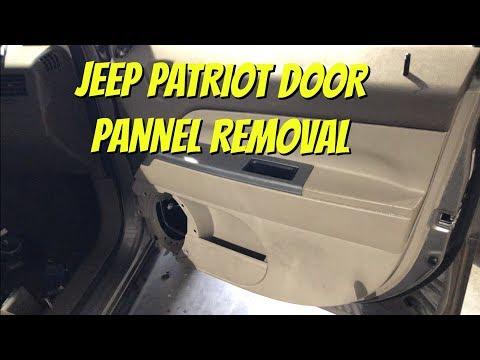

Step 1: Remove the rear door trim panel

• Use a trim panel removal tool (plastic) to pop off the small trim covers near the door handle/armrest (if equipped).
• Remove visible screws using a Phillips screwdriver #2 and/or Torx T20 screwdriver (locations vary by door panel style).
• Use the trim panel removal tool (plastic) to pry around the panel edge and release the push-clips.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect electrical connectors (window switch/speaker) using a pick tool to lift locking tabs if needed. Tip: don’t yank wires—pull connectors.

Step 2: Remove the vapor barrier (water shield)

• Peel the vapor barrier back slowly by hand.
• If the butyl is stubborn, gently help it with a trim panel removal tool (plastic).
• Try to keep the barrier intact and clean so it reseals well later.

Step 3: Secure the glass in the full-up position

• Carefully push the window glass all the way up by hand (if the regulator is failed, it may move freely).
• Use painter’s tape (1.5" wide) to tape the glass to the door frame (run multiple vertical strips over the top of the door).
• If the glass won’t stay, add more tape or have a helper hold it while you clamp/tape it.

Step 4: Disconnect the regulator motor and access fasteners

• Disconnect the regulator motor electrical connector using a pick tool if the tab is tight.
• Position your work light so you can see through the door access holes.

Step 5: Detach the glass from the regulator

• Locate the glass-to-regulator clamp bolts through the access openings.
• Use a 10mm socket with a 1/4" drive ratchet and 6" socket extension (1/4" drive) to loosen/remove the clamp bolts.
• Torque (reassembly): Torque to 10 Nm (89 in-lb)
• Make sure the glass remains taped up and stable after the clamps are released.

Step 6: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" socket extension (1/4" drive).
• Torque (reassembly): Torque to 9 Nm (80 in-lb)
• If your replacement regulator does not include the motor, remove the motor from the old regulator using a Torx T30 screwdriver.
• Torque (reassembly): Torque to 6 Nm (53 in-lb)
• Maneuver the regulator out through the large access opening. Tip: rotate it slowly; don’t bend tracks.

Step 7: Install the new regulator (and motor if needed)

• Feed the new regulator into the door cavity in the same orientation as the old one.
• Hand-start all regulator bolts first to avoid cross-threading, then tighten using a 10mm socket and 1/4" drive ratchet.
• Torque: Torque to 9 Nm (80 in-lb)
• If transferring the motor, install it with a Torx T30 screwdriver.
• Torque: Torque to 6 Nm (53 in-lb)
• Reconnect the motor electrical connector by hand until it clicks.

Step 8: Reattach the glass to the regulator and align

• Remove some slack in the tape, then carefully lower the glass until it sits into the regulator clamps.
• Install and tighten the clamp bolts using a 10mm socket and 1/4" drive ratchet.
• Torque: Torque to 10 Nm (89 in-lb)
• Before removing all tape, check the glass sits evenly in the run channels (the vertical rubber guides).

Step 9: Function test before reassembly

• If you disconnected the battery, reconnect it using a 10mm socket.
• Temporarily plug in the window switch and cycle the window down/up while watching inside the door.
• Listen for popping/clicking and watch for the glass tilting—if it tilts, stop and re-seat the glass in the clamps.
• Disconnect the battery again (optional but safer) before putting hands back inside the door.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Add butyl tape (vapor barrier sealant) where the original seal is damaged.
• Reconnect all electrical connectors (switch and speaker) by hand.
• Hang the door panel on the top lip first, then press clips in around the perimeter using your palm.
• Reinstall screws using a Phillips screwdriver #2 and/or Torx T20 screwdriver.
• Torque (small trim screws): Torque to 2.5 Nm (22 in-lb)

---

✅ After Repair

• Cycle the rear window fully down and fully up 5–10 times to confirm smooth travel and no binding.
• Check that the door opens/closes normally and the door handle/cable feel is correct.
• Verify no wind noise or water leaks after a car wash/rain (vapor barrier must be sealed).
• If the auto-down feature acts odd, cycle the window up/down again to “re-learn” positions.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per rear door)

DIY Cost: $90-$250 (parts only, per rear door)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
