🔧 340i - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track assembly that raises and lowers the glass. When it fails, the window may drop, bind, move crooked, or make grinding/clicking noises. This job involves removing the rear door panel, supporting the glass, swapping the regulator, then reinitializing the window.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per side)

Assumption: standard rear door (no aftermarket audio/alarms).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before door work: the rear door has a side airbag and you don’t want an accidental airbag fault or deployment.
• ⚠️ Support the window glass at all times: the glass can drop suddenly once the regulator is detached.
• ⚠️ Keep fingers clear of the scissor/cable path: regulators can pinch hard.
• ⚠️ Use eye protection when prying clips: door panel clips can pop loose quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Torx T20 bit
• Torx T25 bit
• Torx T30 bit
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• 10mm socket
• Small flat-blade screwdriver
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Torque wrench (2–25 Nm range)
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (left or right, correct side) - Qty: 1
• Rear door vapor barrier butyl tape (sealant strip) - Qty: 1
• Rear door panel clips - Qty: 6-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the rear window to about halfway if it still moves (this gives access to the glass clamp area). If it’s stuck, you’ll position the glass later by hand.
• Open the trunk and disconnect the battery negative terminal (10mm). Wait 5 minutes before unplugging door connectors.
• Prepare painter’s tape: you’ll use it to hold the glass up to the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set (plastic) to carefully pry off the trim cover at the interior door pull and around the switch area as needed.
• Remove visible screws using Torx T20 bit / Torx T25 bit (BMW typically hides screws behind small covers; use a small flat-blade screwdriver to lift covers).
• Start at the bottom edge and pop the panel clips free using the trim removal tool set (plastic).
• Lift the door panel upward to unhook it from the window ledge.
• Unplug connectors (window switch, courtesy light). Use a small flat-blade screwdriver only to release connector locks gently.
• If equipped, disconnect the door handle cable by flipping its retainer and lifting the cable end out. Take a photo before removing.

Step 2: Remove the vapor barrier (water shield)

• Peel the vapor barrier back slowly using your hands and a trim removal tool set (plastic).
• If the butyl sealant stretches, cut it cleanly and plan to reseal with rear door vapor barrier butyl tape.
• Do not tear the barrier—water leaks and wind noise can result.

Step 3: Support the window glass

• If the glass is still attached to the regulator, move the glass so the clamp/attachment points are accessible through the door openings.
• Use painter’s tape (1.5" wide) to tape the glass to the door frame from the outside (2–3 long strips).
• If the window is dropped inside the door, lift it by hand to the fully-up position and tape it securely. Use extra tape; glass is heavy.

Step 4: Disconnect the regulator from the glass

• Locate the glass clamp bolts through the access holes.
• Use a 10mm socket (or Torx T25 bit depending on regulator version) to loosen the clamp fasteners.
• Separate the glass from the regulator carrier and confirm the glass is still fully supported by tape.
• Torque on reassembly: Torque to 8 Nm (71 in-lbs) for glass clamp fasteners.

Step 5: Remove the window regulator assembly

• Unplug the window motor connector.
• Remove the regulator mounting fasteners using a 10mm socket and/or Torx T30 bit (fastener type varies by supplier).
• Carefully maneuver the regulator out through the largest opening in the door.
• Torque on reassembly: Torque to 8 Nm (71 in-lbs) for regulator/motor mounting bolts.

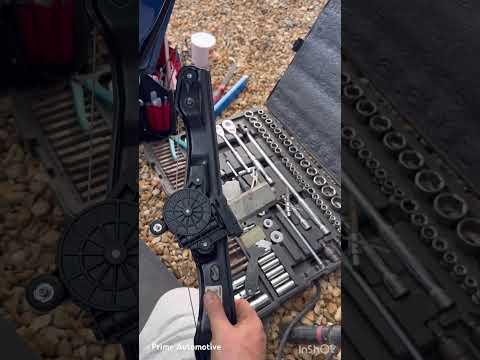

Step 6: Install the new regulator

• Slide the new regulator into the door and align it to the mounting holes.
• Start all fasteners by hand first to avoid cross-threading.
• Tighten with a 10mm socket and/or Torx T30 bit, then use a torque wrench (2–25 Nm range).
• Torque: Torque to 8 Nm (71 in-lbs).

Step 7: Reattach the glass to the regulator

• Lower or raise the regulator carrier as needed by hand (or briefly reconnect the motor connector if you need to “jog” it—battery must remain disconnected, so only do this after reconnecting battery in Step 9).
• Align the glass into the carrier/clamp, ensuring it sits evenly in the front and rear run channels.
• Tighten the clamp fasteners using a 10mm socket (or Torx T25 bit as equipped).
• Torque: Torque to 8 Nm (71 in-lbs).

Step 8: Reseal the vapor barrier

• Press the vapor barrier back into place.
• Add/replace sealant using rear door vapor barrier butyl tape anywhere the original butyl is damaged or no longer sticky.
• Firmly press all edges so it seals continuously. Gaps can cause carpet moisture.

Step 9: Reinstall the rear door panel

• Reconnect all electrical connectors (switch, lights) and the interior handle cable.
• Hook the top of the panel over the window ledge, then press the panel into place.
• Replace any broken clips with rear door panel clips before pushing the panel on.
• Reinstall screws using Torx T20 bit / Torx T25 bit.

Step 10: Reconnect the battery and initialize the window

• Reconnect the battery negative terminal using a 10mm socket.
• Initialize (reset) the rear window anti-pinch:
• Use the rear window switch: fully raise the window and keep holding the switch in the “up” position for 10 seconds.
• Fully lower the window and keep holding the switch in the “down” position for 10 seconds.
• Repeat once if one-touch or anti-pinch doesn’t work.

---

✅ After Repair

• Verify the window moves smoothly up/down and seals evenly at the top.
• Check one-touch up/down and anti-pinch (stop the glass lightly with a folded towel near the top; it should reverse).
• Listen for cable popping or grinding—those indicate misrouting or a loose regulator mount.
• If an airbag or door fault light appears, it may need a scan tool to clear after reconnecting with something unplugged.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per rear door)

DIY Cost: $90-$220 (parts only, per rear door)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
