🔧 Highlander - Rear Window Regulator Replacement

If your rear window is stuck, tilts, grinds, or drops into the door, the rear window regulator (the lift mechanism) is usually worn or broken. On your Highlander, you’ll remove the rear door panel, secure the glass, swap the regulator (and motor if included), then reassemble and test.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable to prevent the window moving unexpectedly.
• ⚠️ Wear cut-resistant gloves—inner door metal edges can be sharp.
• ⚠️ Support the door glass with tape (or suction cup) before unbolting it.
• ⚠️ Keep the vapor barrier (plastic sheet) intact; it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound)
• Phillips screwdriver #2
• Trim removal tool set
• Pick tool
• Needle-nose pliers
• Painters tape (1.5"-2" wide)
• Suction cup glass holder (specialty)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (LH or RH) - Qty: 1
• Rear window regulator motor (if not included with regulator) - Qty: 1
• Door panel fastener clips (rear door) - Qty: 4-10
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the ignition OFF.
• Lower the rear window to about halfway if it still moves (this lines up the glass bolts with the access holes).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it.
• Trim tool = plastic pry tool to avoid scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set to pry up the window switch panel and disconnect the electrical connector.
• Use a pick tool to pop out the small screw covers in the interior pull handle/armrest area.
• Remove the exposed screws using a Phillips screwdriver #2.
• Starting at the bottom edge, use the trim removal tool set to pop the door panel clips free.
• Lift the panel straight up to release it from the top window ledge.
• Disconnect any remaining connectors and the inside door-handle cable (use a pick tool gently to release the cable clip).

Step 2: Remove the vapor barrier (water shield)

• Carefully peel back the plastic vapor barrier by hand.
• If the sticky butyl tears, plan to reseal it later using butyl tape.

Step 3: Secure the door glass

• Use painters tape (1.5"-2" wide) to tape the glass to the door frame (run multiple long strips over the top of the door and onto the glass).
• If you have one, use a suction cup glass holder (specialty) to help support and control the glass.
• Use 3–5 tape strips for safety.

Step 4: Detach the glass from the regulator

• If the window still moves: reconnect the switch temporarily, turn ignition ON, and move the window until the glass-to-regulator bolts line up with the access holes. Then turn ignition OFF and disconnect the battery again using a 10mm socket.
• Through the access holes, use a 10mm socket to remove the glass-to-regulator bolts.
• Once unbolted, slide the glass fully up by hand and re-tape it to the frame.
• Torque to 8 Nm (71 in-lbs) when reinstalling these bolts.

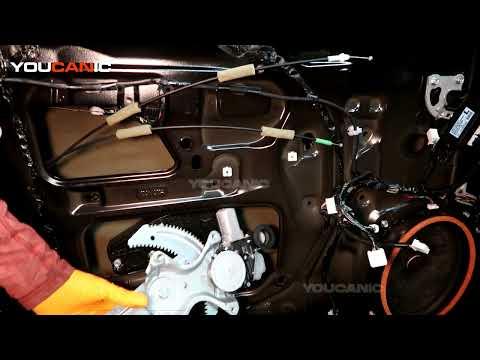

Step 5: Remove the regulator (and motor if attached)

• Disconnect the window motor electrical connector.
• Use a 10mm socket and 1/4" drive ratchet with a 6" extension to remove the regulator mounting bolts.
• Carefully maneuver the regulator assembly out through the large door opening.
• Torque to 10 Nm (89 in-lbs) when reinstalling regulator mounting bolts.

Step 6: Transfer the motor (if your new regulator doesn’t include it)

• Place the old regulator on a bench and hold the motor firmly.
• Use a 10mm socket to remove the motor mounting bolts.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 5 Nm (44 in-lbs) on motor mounting bolts.

Step 7: Install the new regulator and attach the glass

• Feed the new regulator into the door and hand-start all bolts using a 10mm socket (don’t fully tighten yet).
• Plug in the motor connector.
• Reconnect the window switch temporarily, reconnect the battery negative with a 10mm socket, then turn ignition ON and jog the regulator to align with the glass mounting points.
• Turn ignition OFF and disconnect the battery negative again using a 10mm socket.
• Lower the glass carefully onto the regulator and install the glass-to-regulator bolts using a 10mm socket.
• Tighten fasteners: Torque to 8 Nm (71 in-lbs) (glass bolts) and Torque to 10 Nm (89 in-lbs) (regulator bolts).

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the butyl adhesive; add butyl tape anywhere it won’t stick.
• Reconnect the door handle cable and electrical connectors.
• Hook the top of the door panel onto the window ledge, then press clips in around the perimeter.
• Reinstall screws using a Phillips screwdriver #2 and reinstall covers.
• Reconnect the window switch panel connector and snap the panel back in using a trim removal tool set.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Turn ignition ON and test the rear window: full down, full up, and check for smooth travel and no tilting.
• Listen for clicking/grinding—if heard, stop and re-check glass alignment and bolt tightness.
• If the one-touch/auto function acts weird, cycle the window fully down and fully up once to help it re-learn.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
