🔧 Optima - Rear Window Regulator Replacement

The rear window regulator is the cable-and-rail mechanism that lifts and lowers the glass. When it fails, the window may move crooked, get stuck, or fall into the door. This job involves removing the rear door panel, supporting the glass, swapping the regulator, and then testing window operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• Work on level ground with the ignition OFF and the key away from the car.
• Disconnect the negative battery terminal with a 10mm socket to prevent accidental shorting and to protect door electronics.
• Wear safety glasses; the door has sharp edges and falling glass is a risk.
• Support the window glass with painter’s tape before unbolting it from the regulator.
• Do not tear the vapor barrier (the plastic sheet). It prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• Ratchet (1/4" drive)
• Extension (3"-6")
• Phillips #2 screwdriver
• Trim clip removal tool
• Plastic pry tool set
• Needle-nose pliers
• Pick tool (small)
• Torque wrench (in-lb or small Nm range)
• Painter’s tape (1.5"-2" wide)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (correct side) - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included)
• Rear door panel trim clips - Qty: 6-12 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Lower the rear window about halfway if it still moves. This usually lines up the glass clamp bolts with the door access holes.
• Turn ignition OFF.
• Disconnect the negative battery terminal using a 10mm socket, and wait 2 minutes.
• Set aside a clean table or blanket for the door panel to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a plastic pry tool set to pop off the small trim covers near the inside door handle and armrest (covers hide screws).
• Remove the exposed screws with a Phillips #2 screwdriver.
• Use a trim clip removal tool to release the door panel clips around the edges. Pull straight out to avoid breaking clips.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect electrical connectors using a pick tool (small) to release locking tabs (locking tab = small latch that must be pressed before unplugging).

Step 2: Remove the vapor barrier (water shield)

• Carefully peel the plastic vapor barrier back using a plastic pry tool set.
• If the butyl adhesive is stringy, use work gloves and roll it off slowly.
• Plan to reseal it later using butyl tape (this prevents water leaks).

Step 3: Support the window glass

• If the glass is still attached and upright, run 2–3 long strips of painter’s tape from the outside of the glass over the top of the door frame and down the inside to hold it up.
• If the glass has fallen inside the door, wear work gloves, lift it by hand, and tape it in the fully-up position.

Step 4: Disconnect the glass from the regulator

• Find the glass-to-regulator clamp bolts through the door access holes.
• Use a 10mm socket with a ratchet (1/4" drive) and extension (3"-6") to loosen/remove the clamp bolts.
• Once the glass is free, add extra painter’s tape so it cannot drop.
• When reinstalling these bolts later: Torque to 8–10 Nm (71–89 in-lbs).

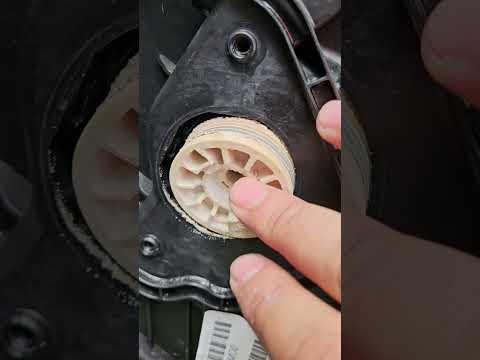

Step 5: Unplug and remove the regulator (and motor if separate)

• Unplug the window motor connector using a pick tool (small) to release the locking tab.
• Remove the regulator mounting bolts with a 10mm socket, ratchet (1/4" drive), and extension (3"-6").
• If your replacement regulator does NOT include a motor:
  • Remove the motor screws/bolts with a 10mm socket (some versions use Phillips; use Phillips #2 screwdriver if needed).
  • Transfer the motor to the new regulator.
  • Motor fasteners on reassembly: Torque to 4–6 Nm (35–53 in-lbs).
• Slide the regulator out through the large door opening carefully to avoid bending it.
• Regulator mounting bolts on reassembly: Torque to 7–9 Nm (62–80 in-lbs).

Step 6: Install the new regulator

• Position the new regulator into the door and start all bolts by hand first (this prevents cross-threading).
• Tighten with a 10mm socket and ratchet (1/4" drive), then finish with a torque wrench (in-lb or small Nm range).
• Torque to 7–9 Nm (62–80 in-lbs).

Step 7: Reattach glass and test before reassembly

• Lower the regulator carrier/clamp into position by temporarily reconnecting the switch and reconnecting the battery (use 10mm socket), then turn ignition ON and move the regulator to line up with the glass clamp holes.
• Turn ignition OFF and disconnect the battery again using the 10mm socket.
• Set the glass into the clamp and install the clamp bolts with a 10mm socket.
• Torque to 8–10 Nm (71–89 in-lbs).
• Reconnect the battery with the 10mm socket and test window up/down. Listen for binding or clicking.
• If the glass tilts or binds, loosen the clamp bolts slightly with a 10mm socket, center the glass in the run channels, then re-torque.

Step 8: Reinstall vapor barrier and door panel

• Reseal the vapor barrier using butyl tape. Press firmly all the way around.
• Reconnect all electrical connectors.
• Hang the door panel on the top edge first, then press clips in around the perimeter.
• Reinstall screws with a Phillips #2 screwdriver (snug only). Overtightening can crack trim.

---

✅ After Repair

• Test the rear window from both the rear switch and the driver master switch.
• Verify the window seals evenly against the weatherstrip and doesn’t rattle on bumps.
• Check for water leaks later by lightly spraying the outside of the window/door and confirming the carpet stays dry.
• If the window moves backward/forward in the track, recheck glass clamp alignment and re-torque the clamp bolts.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
