🔧 Focus - Rear Window Regulator Replacement

Your rear window regulator is the mechanism that raises and lowers the glass. Replacing it means removing the rear door panel, supporting the glass, swapping the regulator assembly, then reassembling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator while testing; it can pinch hard.
• ⚠️ Support the window glass with tape before unbolting it so it doesn’t drop and shatter.
• ⚠️ If your rear door has wiring for locks/speakers, don’t pull the panel away forcefully.
• ⚠️ Battery disconnect is recommended if you’ll unplug multiple door connectors: use a 10mm socket to remove the negative terminal.
• ⚠️ Wear eye protection when removing clips; they can pop loose suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Panel clip pliers
• Torx T20 screwdriver
• Torx T25 screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" extension
• Torque wrench (in-lb)
• Painters tape (1.5")
• Pick tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included with regulator)
• Rear door panel retainer clips - Qty: 1 set (as needed)
• Vapor barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and keep the transmission in gear with the parking brake set.
• Turn the key off and remove it.
• Lower the rear window until you can see the glass-to-regulator fasteners through the door access holes (if the regulator is stuck, you may need to remove the panel first and move the glass by hand).
• If disconnecting the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Take photos before unplugging connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set to gently pry up the window switch bezel (if equipped) and unplug the connector.
• Use a pick tool to lift any small screw covers in the pull handle/armrest area.
• Remove door panel screws using a 7mm socket and/or Torx T20 screwdriver (locations are typically the pull handle and lower edge).
• Use panel clip pliers or a trim removal tool set to pop the panel clips around the edges.
• Lift the door panel straight upward to unhook it from the window ledge, then unplug any remaining connectors (speaker/lock cable if present) by hand.

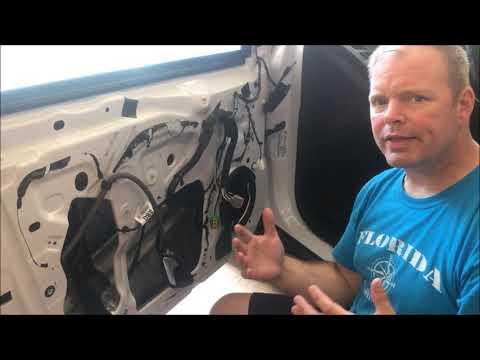

Step 2: Remove the vapor barrier (water shield)

• Peel the moisture barrier back slowly by hand.
• If the sticky sealant stretches, use a trim removal tool set to separate it without tearing the barrier.
• Plan to reseal it later with vapor barrier butyl tape if the adhesive is no longer tacky.

Step 3: Support and secure the window glass

• Use painters tape (1.5") to tape the glass to the door frame from the outside (two to three long strips).
• If the glass is already down, raise it by hand to a stable position before taping.
• Use extra tape; glass is heavy.

Step 4: Disconnect the glass from the regulator

• Look through the door’s access holes and locate the glass-to-regulator clamps/fasteners.
• Use an 8mm socket (common) or 10mm socket (some versions) to loosen the clamp bolts.
• Once loose, lift the glass fully up by hand and add more painters tape (1.5") to hold it at the top.

Step 5: Unplug the regulator motor (power windows)

• Use your hand to unplug the regulator motor connector.
• If the lock tab is stubborn, use a pick tool to gently lift the tab (don’t break it).

Step 6: Remove the regulator (and motor if separate)

• Use a 10mm socket with a 1/4" drive ratchet and 6" extension to remove the regulator mounting bolts.
• If the motor is separate from the regulator on your replacement setup, remove the motor fasteners using a Torx T25 screwdriver.
• Carefully maneuver the regulator out through the largest door opening.

Step 7: Install the new regulator

• Slide the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand to prevent cross-threading, then snug them with a 10mm socket.
• Tighten regulator mounting bolts with a torque wrench (in-lb): Torque to 71 in-lb (8 Nm).
• If transferring the motor, install it using a Torx T25 screwdriver and tighten fasteners: Torque to 71 in-lb (8 Nm).
• Plug the motor connector back in by hand until it clicks.

Step 8: Reattach the glass to the regulator

• Carefully lower the glass until it seats into the regulator clamps.
• Use an 8mm socket or 10mm socket (whichever fits your clamp bolts) to tighten the clamp bolts: Torque to 71 in-lb (8 Nm).
• Remove the painters tape (1.5") after the glass is fully secured.

Step 9: Test operation before reassembly

• Reconnect the window switch temporarily and test the window up/down.
• Listen for clicking, binding, or the glass tilting; if it tilts, loosen the clamp bolts with an 8mm socket, reseat the glass, and retorque.

Step 10: Reinstall the vapor barrier and door panel

• Press the moisture barrier back into place by hand; add vapor barrier butyl tape if needed for a full seal.
• Reconnect all electrical connectors by hand.
• Hook the door panel on the top lip first, then press clips in around the perimeter.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.

---

✅ After Repair

• Cycle the rear window fully down and fully up 3 times to confirm smooth travel and proper sealing.
• Verify the door lock, speaker, and window switch all work.
• Check that the vapor barrier is sealed; this prevents water leaks into the cabin.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
