🔧 Corolla - Rear Window Regulator Replacement

A rear window regulator is the track-and-motor (or track-only) assembly that moves the glass up and down. Replacement usually means removing the rear door trim panel, supporting the glass, unbolting the regulator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator arms and tracks; pinch hazard.
• ⚠️ Support the window glass at all times once it’s detached; it can drop and shatter.
• ⚠️ Wear cut-resistant gloves; door metal edges and broken clips are sharp.
• ⚠️ If you unplug the window motor, turn the ignition OFF first to prevent accidental movement.
• ⚠️ Battery disconnect is recommended if you’re new to this (prevents accidental window operation).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim removal tool set
• Panel clip pliers
• Phillips screwdriver #2
• Small flat-blade screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Torque wrench (in-lb or low-range ft-lb)
• Needle-nose pliers
• Painters tape (1.5" wide)
• Marker or paint pen
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly (Left OR Right, as needed) - Qty: 1
• Rear door trim panel clips - Qty: 6-12 (as needed)
• Moisture barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park your Corolla on level ground and turn the ignition OFF.
• Lower the rear window to about halfway if it still moves (this helps access the glass-to-regulator bolts).
• If you’ll disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Trim tool = plastic pry tool to avoid scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

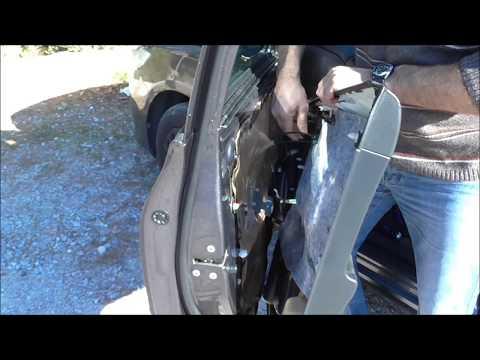

Step 1: Remove the rear door trim panel

• Use a trim removal tool set to gently pry up the power window switch panel (if equipped), then unplug the connector by pressing the lock tab.
• Use a small flat-blade screwdriver to pop off any small screw covers in the pull handle/armrest area.
• Remove the door panel screws using a Phillips screwdriver #2.
• Use panel clip pliers (or a trim removal tool set) to pop the panel clips around the edges.
• Lift the door panel straight upward to unhook it from the window ledge, then set it aside.

Step 2: Remove the moisture barrier (plastic water shield)

• Use a trim removal tool set to peel the moisture barrier back slowly.
• If the sticky sealant stretches, use needle-nose pliers to pull it off the metal and keep it on the plastic.
• Don’t tear it; it prevents water leaks.

Step 3: Secure the window glass in the up position

• Carefully push the glass fully up by hand (if the regulator is broken, it may slide easily).
• Use painters tape (1.5" wide) to tape the glass to the door frame in 2–3 long strips (outside over the top and down to inside), so it can’t fall.

Step 4: Detach the glass from the regulator

• Through the access holes, locate the glass-to-regulator clamp/bolts.
• Use a 10mm socket, 1/4" drive ratchet, and 6" socket extension to loosen/remove the fasteners.
• Torque on reassembly: 8 N·m (71 in-lbs)
• Once detached, re-check the painters tape is holding the glass securely.

Step 5: Unplug and remove the window regulator/motor assembly

• Unplug the window motor connector (press the lock tab) using your fingers or a small flat-blade screwdriver gently if needed.
• Use a marker or paint pen to mark the regulator’s general position if you want a reference for re-install.
• Remove the regulator/motor mounting bolts using a 10mm socket, ratchet, and extension.
• Carefully snake the regulator out through the largest access opening. Use a work light so you don’t snag wiring.
• Torque on reassembly: 8 N·m (71 in-lbs)

Step 6: Install the new regulator

• Feed the new regulator into the door the same way the old one came out.
• Start all bolts by hand first (prevents cross-threading), then snug them with a 10mm socket and ratchet.
• Use a torque wrench to finish tightening: Torque to 8 N·m (71 in-lbs).
• Plug in the motor connector until it clicks.

Step 7: Reattach the glass to the regulator

• Remove and re-apply the painters tape as needed so the glass can lower slightly into the regulator clamps/attachment points.
• Install the glass-to-regulator fasteners using a 10mm socket, then use a torque wrench: Torque to 8 N·m (71 in-lbs).
• Keep the glass straight in the run channel.

Step 8: Function check before reassembly

• If the battery was disconnected, reconnect it using a 10mm socket.
• Turn ignition ON and run the window fully down, then fully up, watching for binding or crooked movement.
• If it tilts or binds, stop and re-check glass seating in the regulator and the tracks.

Step 9: Reinstall the moisture barrier and door panel

• Press the moisture barrier back on. Add moisture barrier butyl tape where needed to reseal.
• Hang the door panel on the top lip first, then press the clips in around the perimeter using your hands.
• Reinstall screws with a Phillips screwdriver #2.
• Reconnect the window switch and snap the switch panel back in using a trim removal tool set if needed.

---

✅ After Repair

• Cycle the repaired rear window 5–10 times to confirm smooth travel and consistent speed.
• Listen for clicking/grinding; that usually means the glass isn’t seated correctly in the regulator.
• Check the door for water leaks next time it rains or after a car wash (moisture barrier seal matters).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours per door.

---
