🔧 Civic - Rear Window Regulator Replacement

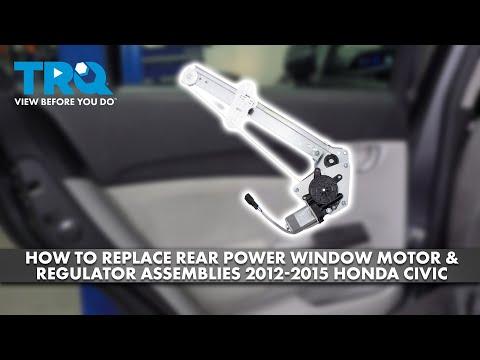

The rear window regulator is the cable-and-track assembly that moves your rear door glass up and down. When it fails, the window may drop, move crooked, make grinding noises, or stop moving completely.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Two quick questions before you start: Which rear door (left or right), and are you replacing regulator only or the regulator + motor assembly?

---

⚠️ Safety & Precautions

• 🛑 Keep fingers out of the regulator tracks and cable area (pinch hazard).
• 🛑 Support the window glass with tape before unbolting it so it can’t drop.
• 🛑 Disconnect the negative battery cable before unplugging door wiring connectors.
• 🛑 Work on level ground with the parking brake set.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim clip removal tool
• Pick tool
• Torque wrench (in-lb or low-range Nm)
• Painters tape (1"-2" wide)
• Plastic razor blade scraper
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (correct side) - Qty: 1
• Rear window motor - Qty: 1 (only if replacing motor too)
• Door panel push clips - Qty: 4-10 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• 🔎 Park on a flat surface and lower the rear window to about halfway if it still moves.
• 🔎 Turn ignition OFF and remove the key.
• 🔎 Use a 10mm socket to disconnect the negative (-) battery cable and tuck it aside.
• 🔎 Put painters tape and a work light within reach.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch trim and screws

• Use a trim clip removal tool (a forked plastic tool that pops clips without breaking them) to gently lift the rear window switch bezel/trim.
• Unplug the switch connector by pressing the lock tab with a pick tool and pulling the connector straight out.
• Remove any visible door-pull/armrest screws using a Phillips #2 screwdriver.

Step 2: Remove the rear door panel

• Use the trim clip removal tool to pop the door panel clips around the edges (work from the bottom up).
• Lift the panel straight upward to unhook it from the window ledge.
• Disconnect any remaining connectors using the pick tool as needed, then set the panel aside.
• Tip: Keep screws/clips in a cup.

Step 3: Peel back the vapor barrier

• Carefully peel the plastic moisture sheet (vapor barrier) back using a plastic razor blade scraper.
• Try not to tear it; you’ll reuse it. If the butyl is messy, plan to replace with butyl tape.

Step 4: Secure the window glass

• Manually position the glass so you can access the glass-to-regulator fasteners through the door access holes.
• Apply multiple strips of painters tape (1"-2" wide) from the outside of the glass over the top of the door frame to hold the glass up.
• If the glass is already down and the regulator is broken, carefully lift the glass up by hand and tape it in place.

Step 5: Unbolt the glass from the regulator

• Use a 10mm socket, 1/4" ratchet, and extension to remove the two glass clamp/retainer bolts (through the access holes).
• Torque to 8.8 Nm (78 in-lb) during reassembly.

Step 6: Disconnect the regulator/motor electrical connector

• Unplug the motor connector by depressing the lock tab with a pick tool.
• Clip any wiring retainers out of the door using the trim clip removal tool if needed.

Step 7: Remove the regulator assembly

• Use a 10mm socket, 1/4" ratchet, and extension to remove the regulator mounting bolts.
• Torque to 9.8 Nm (87 in-lb) during reassembly.
• Angle the regulator out through the large door opening. Go slow to avoid scratching paint or bending the tracks.

Step 8: Move the motor to the new regulator (if replacing regulator only)

• If your new part did not include a motor, remove the motor from the old regulator using a 10mm socket.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 5.4 Nm (48 in-lb).
• Tip: Don’t rotate the motor gear by hand.

Step 9: Install the new regulator

• Place the regulator into the door and start all mounting bolts by hand.
• Tighten the regulator mounting bolts with a 10mm socket and torque wrench.
• Torque to 9.8 Nm (87 in-lb).
• Reconnect the motor electrical connector until it clicks.

Step 10: Reattach the glass and check alignment

• Lower the glass carefully onto the regulator clamps (remove tape only when ready).
• Install the glass clamp/retainer bolts using a 10mm socket.
• Torque to 8.8 Nm (78 in-lb).
• Make sure the glass sits evenly in the run channels (the felt guides) before final tightening.

Step 11: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Plug in the window switch and run the window fully down and fully up while watching for smooth movement.
• If it binds, stop immediately and re-check glass seating and regulator bolt tightness.
• Disconnect the negative battery cable again before putting the vapor barrier and panel back on.

Step 12: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Use butyl tape if the original adhesive won’t stick.
• Reconnect all door panel connectors.
• Hang the panel on the upper ledge and press the clips in around the perimeter using your hands.
• Reinstall screws with a Phillips #2 screwdriver.
• Snap the switch bezel back in place and reconnect the switch.

---

✅ After Repair

• 🧪 Reconnect the negative battery cable using a 10mm socket.
• 🧪 Run the rear window up/down 5–10 times. Listen for clicking or cable popping.
• 🧪 Confirm the window seals evenly at the top and doesn’t tilt forward/back.
• 🧪 Verify the rear door locks and speaker (if equipped) still work.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor, per rear door)

DIY Cost: $80-$250 (parts only, per rear door)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
