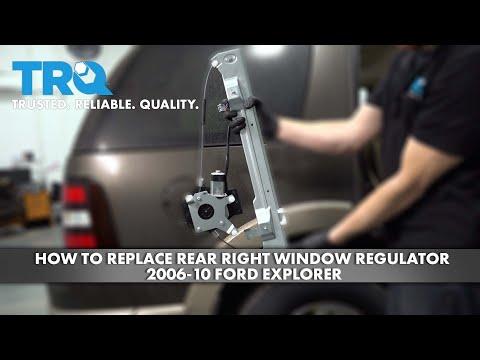

🔧 Explorer - Rear Window Regulator Replacement

The rear window regulator is the cable/track assembly that moves the glass up and down. When it fails, the window may drop into the door, move crooked, or stop moving. You’ll remove the rear door trim panel, detach the glass, swap the regulator (and motor if needed), then reassemble and test.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours (per rear door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working inside the door to prevent accidental window movement.
• ⚠️ Support the window glass with painter’s tape or a helper so it can’t fall and shatter.
• ⚠️ Wear cut-resistant gloves—inner door metal edges are sharp.
• ⚠️ Keep fingers clear of the regulator scissors/cable path while testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim removal tool
• Small flat-blade screwdriver
• Phillips screwdriver #2
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 driver
• Torque wrench (in-lb)
• Painter’s tape (2")
• Needle-nose pliers
• Cordless drill
• 1/4" drill bit
• Rivet gun (specialty)
• Utility knife
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (left or right, as applicable) - Qty: 1
• Rear window regulator motor (if not included with regulator) - Qty: 1
• Door panel retainer clips - Qty: 1 set
• Water shield butyl tape - Qty: 1
• 1/4" rivets (if factory riveted) - Qty: 6–10
• M6 bolt and nut assortment (if converting from rivets to bolts) - Qty: 1 set

---

📋 Before You Begin

• Park the Explorer on level ground and remove the key.
• Lower the affected rear window until you can access the glass-to-regulator fasteners (if it still moves). If it won’t move, you’ll position the glass by hand later.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Have painter’s tape ready to hold the glass at the top of the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool to pop off the small trim covers near the handle/armrest (if equipped).
• Remove visible screws using a 7mm socket and/or Phillips screwdriver #2 (common locations: armrest pull pocket and around the door handle bezel).
• Use a trim removal tool to release the perimeter panel clips by prying near each clip location.
• Lift the panel straight up to unhook it from the window channel.
• Disconnect the electrical connectors using a small flat-blade screwdriver to lift lock tabs if needed.
• Tip: Put screws in a cup immediately.

Step 2: Peel back the water shield (vapor barrier)

• Use a utility knife to gently separate the butyl adhesive where needed.
• Peel the water shield back slowly (don’t rip it). Use a flashlight to see the regulator and glass clamps.

Step 3: Support and secure the window glass

• If the glass is still attached and movable, position it so the glass-to-regulator fasteners are visible through the access holes.
• Use painter’s tape (2") across the outside of the glass and onto the door frame to hold the glass up.
• If the window has dropped, carefully lift it by hand to the fully-up position and tape it in place.

Step 4: Detach the glass from the regulator

• Through the access holes, loosen/remove the glass clamp/retainer fasteners using an 8mm socket (some builds may use 10mm socket).
• Once loose, verify the glass is free from the regulator and still firmly held by the tape.
• Torque to 7 Nm (62 in-lb) when reinstalling these glass clamp fasteners.

Step 5: Unplug and remove the window regulator/motor

• Disconnect the window motor electrical connector using needle-nose pliers only if needed to help release the tab (don’t crush the connector).
• Remove regulator/motor fasteners with a 10mm socket and 1/4" drive ratchet.
• If your regulator is riveted: use a cordless drill with a 1/4" drill bit to drill the rivet heads off, then push the rivet bodies through.
• Carefully maneuver the regulator assembly out through the larger service opening.
• Torque to 10 Nm (89 in-lb) when reinstalling regulator/motor-to-door fasteners.

Step 6: Transfer the motor (if your new regulator doesn’t include one)

• Use a Torx T20 driver to remove the motor screws from the old regulator.
• Install the motor onto the new regulator and tighten with a Torx T20 driver.
• Torque to 4 Nm (35 in-lb).
• Tip: Keep the motor gear fully seated.

Step 7: Install the new regulator

• Feed the new regulator into the door and align it to the mounting points.
• If using bolts, install using a 10mm socket and 1/4" drive ratchet.
• If using rivets, install with a rivet gun (specialty) using correct-length 1/4" rivets.
• Tighten the regulator fasteners with a torque wrench (in-lb): Torque to 10 Nm (89 in-lb).
• Reconnect the motor electrical connector until it clicks.

Step 8: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly, but keep it supported.
• Carefully lower the glass into the regulator clamps by hand.
• Install/tighten the glass clamp fasteners using an 8mm socket (or 10mm socket if equipped).
• Final tighten with a torque wrench (in-lb): Torque to 7 Nm (62 in-lb).

Step 9: Quick functional test (before reassembly)

• Reconnect the negative battery cable using a 10mm socket.
• Turn the key to RUN and test the rear window switch operation.
• Watch for smooth travel, no cable “jumping,” and correct glass alignment in the run channel.
• Turn key OFF, then disconnect the negative battery cable again with a 10mm socket before putting the water shield and panel back on.

Step 10: Reinstall the water shield and door trim panel

• Press the water shield back into place. Add water shield butyl tape where the seal is no longer sticky.
• Reconnect door electrical connectors.
• Hang the door panel on the top lip, then press clips in by hand around the perimeter.
• Reinstall screws using a 7mm socket and/or Phillips screwdriver #2.

Step 11: Final test

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the rear window fully down and fully up at least 3 times.
• Confirm the window lockout and both rear switch and driver master switch (if equipped) operate correctly.

---

✅ After Repair

• Listen for any clicking/popping while the window moves—this can indicate a misrouted cable or loose fastener.
• Confirm the glass seals evenly against the weatherstrip at the top with no wind gaps.
• If the window is slow, inspect the run channel for debris and recheck glass alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$700 (parts + labor, per rear door)

DIY Cost: $80–$220 (parts only, per rear door)

You Save: $270–$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
