🔧 Atlas - Rear Turn Signal Bulb Replacement

On your Atlas, the rear turn signal bulb is housed inside the rear tail lamp assembly. Replacing it usually means removing the tail lamp, swapping the bulb in the socket, and reinstalling everything so the lamp seals correctly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Turn ignition OFF and remove the key before starting.
• 🧤 Wear gloves so you don’t cut your hands on sheet metal edges.
• 🔥 If lights were on, let the tail lamp cool before touching bulbs.
• 🚫 Don’t touch the glass part of an incandescent bulb with bare fingers (skin oils can shorten bulb life).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" ratchet
• 6" extension
• Plastic trim removal tool
• Pick tool
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber) - Qty: 1 Replace in pairs
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate for access to the cargo-side panels.
• Identify which side is out (left or right) by turning on the hazards briefly, then turning them back OFF.
• Trim tool = plastic pry tool to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you have a replaceable bulb

• Use your flashlight and look at the rear tail lamp: if you can access a removable bulb carrier/socket from the back of the lamp, it’s a bulb-type setup.
• If the lamp is fully sealed and appears LED-only (no removable bulb socket), the turn signal is part of the tail lamp assembly and the “bulb” is not serviceable separately.
• If LED-only, you’ll replace the lamp assembly.

Step 2: Remove the cargo-area access cover (same side as failed bulb)

• Use the plastic trim removal tool to gently pry open/remove the access panel in the cargo area behind the tail lamp.
• If there’s a small clip or tab, use the pick tool to lift it carefully.

Step 3: Remove the tail lamp retaining nuts

• Use an 8mm socket with a 1/4" ratchet and 6" extension to remove the retaining nuts on the back of the tail lamp.
• Place the nuts somewhere safe so they don’t fall into the body cavity.
• Torque to 2 Nm (18 in-lbs) during reassembly (snug only; do not overtighten).

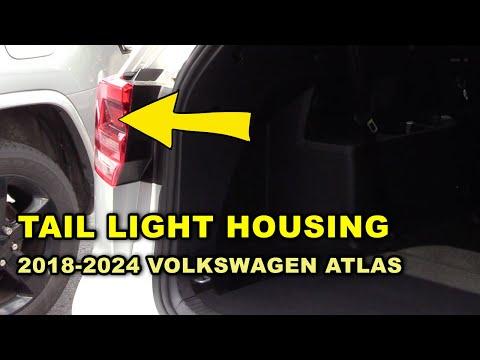

Step 4: Pull the tail lamp assembly outward

• With the nuts removed, hold the tail lamp with both hands and pull it straight outward from the body.
• If it feels stuck, wiggle gently while pulling—don’t pry against the painted body with metal tools.
• Pull straight to avoid breaking alignment pins.

Step 5: Remove the turn signal bulb socket from the tail lamp

• Locate the bulb socket on the back of the tail lamp (it will twist-lock into the housing).
• Use your hand (or a nitrile gloves grip) to rotate the socket counterclockwise and pull it out.

Step 6: Replace the bulb

• Pull the old bulb straight out of the socket using nitrile gloves.
• Install the new amber bulb by pushing it straight into the socket until fully seated.
• If you’re unsure which bulb to buy, match the marking printed on the old bulb base (common markings are 7440A / WY21W depending on lamp setup).
• Optional: apply a very light film of dielectric grease to the socket seal (not on the bulb glass).

Step 7: Reinstall socket and tail lamp

• Reinsert the bulb socket into the tail lamp and twist clockwise to lock it by hand.
• Align the tail lamp’s locating pins with the body grommets, then press the lamp straight in until flush.
• Reinstall the retaining nuts using the 8mm socket, ratchet, and extension.
• Torque to 2 Nm (18 in-lbs).
• Reinstall the cargo access cover by hand.

Step 8: Repeat on the other side (recommended)

• Use the same tools and steps to replace the bulb on the opposite side.
• Replacing in pairs keeps brightness consistent.

---

✅ After Repair

• Turn ignition ON and test left/right turn signals and hazards.
• Verify the turn signal blink rate is normal (a fast blink usually means a bulb still isn’t working).
• Check the tail lamp sits flush and doesn’t wobble.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$150 (parts + labor)

DIY Cost: $10-$25 (parts only)

You Save: $70-$125 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
