🔧 Explorer - Rear Turn Signal Bulb Replacement

On your Explorer, the rear turn signal bulb is accessed by removing the rear tail lamp assembly, then twisting out the bulb socket from the back of the lamp. This is usually a quick job, but the lamp has alignment pins that need a straight pull so the housing doesn’t crack.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let the bulbs cool—hot bulbs can burn you.
• ⚠️ Don’t pull on the wiring—pull the lamp housing straight outward.
• ⚠️ Avoid touching the new bulb glass with bare fingers; use gloves.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" drive ratchet
• 3" extension
• Phillips #2 screwdriver
• Plastic trim tool
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb - Replace in pairs - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate for access to the tail lamp fasteners.
• Have a soft towel ready to set the lamp on after removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which rear lamp you’re working on

• Turn the ignition to ON and switch on the turn signal for the side you’re replacing.
• Walk behind the vehicle and confirm the flashing section is in the outer tail lamp (on the body), not the liftgate lamp.
• Turn ignition back OFF and remove the key.

Step 2: Remove the tail lamp fasteners

• With the liftgate open, locate the fasteners on the inboard edge of the outer tail lamp.
• Remove the fasteners using an 8mm socket and 1/4" drive ratchet (use a 3" extension if needed).
• If your lamp uses screws instead of bolts, remove them with a Phillips #2 screwdriver.
• Tip: Set fasteners in a cup.
• Torque: No common published spec for these fasteners; tighten snug (do not overtighten).

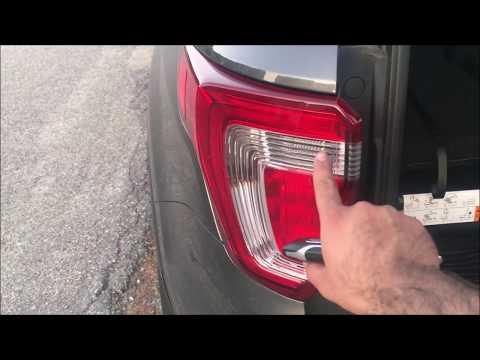

Step 3: Pull the tail lamp housing out

• Grip the lamp housing with both hands and pull it straight rearward.
• If it’s stuck, use a plastic trim tool to gently start the separation at the seam (do not pry hard).
• Support the lamp and rest it on a towel so it doesn’t scratch the paint.

Step 4: Remove the turn signal bulb socket

• Find the socket that matches the turn signal location you verified in Step 1.
• Twist the socket counterclockwise by hand and pull it out of the lamp.
• If access is tight, use a flashlight to identify the correct socket before turning.

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket (wiggle gently if needed).
• Install the new bulb into the socket fully.
• Wear nitrile gloves so skin oils don’t shorten bulb life.

Step 6: Test the bulb before reassembly

• Reinstall the socket into the lamp and twist clockwise to lock.
• Turn ignition ON and activate that turn signal to confirm normal flashing speed.
• If it “hyper-flashes,” recheck bulb seating and that you replaced the correct bulb.
• Turn ignition OFF again before final assembly.

Step 7: Reinstall the tail lamp housing

• Align the lamp’s locating pins with the body grommets, then push straight in until it seats evenly.
• Reinstall the fasteners using an 8mm socket and 1/4" drive ratchet (or Phillips #2 screwdriver if equipped).
• Torque: No common published spec for these fasteners; tighten snug (do not overtighten).

---

✅ After Repair

• Test left and right turn signals, hazards, brake lights, and tail lights.
• Confirm the lamp is fully seated with even gaps (no corner sticking out).
• If moisture appears in the lamp later, recheck the bulb socket seal and lamp seating.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$150 (parts + labor)

DIY Cost: $6-$30 (parts only)

You Save: $30-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
