🔧 Tahoe - Rear Turn Signal Light Replacement

Your Tahoe can have either a replaceable rear turn-signal bulb (twist-lock socket) or an LED turn signal that’s built into the tail lamp (no bulb). The steps below cover both so you don’t buy parts twice.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the vehicle.
• ⚠️ Let the tail lamp cool before touching it.
• ⚠️ Support the tail lamp so it doesn’t scratch the paint or drop.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" socket extension
• Trim removal tool
• Small flat-blade screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses
• Torque wrench (inch-pound capable)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (if equipped with replaceable bulb) - Qty: 1 (or 2 if replacing both sides)

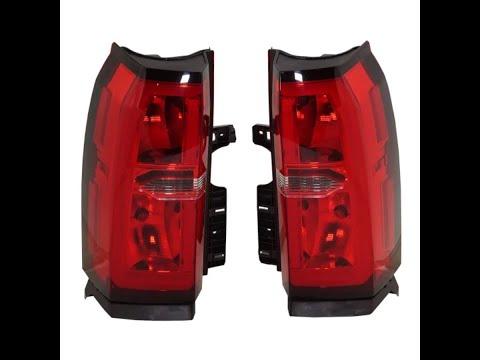

• Rear tail lamp assembly (if equipped with LED/non-serviceable turn signal) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate for access to the tail lamp fasteners.
• Decide which side you’re doing: left (driver) or right (passenger).
• Tip: Replace both sides to match brightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear tail lamp assembly

• Open the liftgate and locate the two tail lamp nuts on the inboard edge of the tail lamp.
• Use a 10mm socket, 3" extension, and 1/4" ratchet to remove both nuts.
• Hold the tail lamp with your other hand and pull the tail lamp straight rearward to release the alignment pins.
• If it’s stuck, use a trim removal tool to gently help it start moving (don’t pry on painted edges).

Step 2: Identify whether you have a bulb socket or an LED lamp

• Look at the back of the tail lamp for a round twist-lock socket with wires going to it.
• If you see a socket: you have a replaceable bulb, continue to Step 3.
• If you do not see a socket for the turn signal and the wiring goes into the lamp housing: it’s likely an LED (non-serviceable) turn signal, skip to Step 5.
• Use a flashlight to clearly see the socket locations.

Step 3: Remove the turn signal bulb socket

• Find the turn-signal socket on the tail lamp (usually labeled/position-specific).
• Grip the socket and turn it counterclockwise about 1/4 turn to unlock it.
• Pull the socket straight out of the tail lamp.
• Tip: Don’t yank on the wires.

Step 4: Replace the bulb

• Wear nitrile gloves to keep oils off the bulb glass.
• Pull the old bulb straight out of the socket (a small wiggle is OK).
• Push the new bulb straight into the socket until fully seated.
• If desired, apply a tiny amount of dielectric grease to the socket seal (not on the bulb contacts).
• Reinstall the socket into the tail lamp and twist clockwise to lock.

Step 5: If LED/non-serviceable turn signal — replace the tail lamp assembly

• Disconnect the tail lamp electrical connector (press the tab; use a small flat-blade screwdriver only if the tab is stubborn).
• Transfer any removable bulb sockets (reverse/backup, etc.) from the old tail lamp to the new one by twisting them out and into the new housing.
• Connect the electrical connector to the new tail lamp until it clicks.

Step 6: Reinstall the tail lamp

• Line up the tail lamp alignment pins with the body grommets and push the tail lamp straight forward until fully seated.
• Install the two nuts by hand first to avoid cross-threading.
• Use a 10mm socket and 1/4" ratchet to snug them down.
• Use a torque wrench (inch-pound capable) and 10mm socket: Torque to 2.5 Nm (22 in-lbs).

---

✅ After Repair

• Turn the ignition ON and test the repaired side with the turn signal and hazards.
• Confirm normal flash speed (no fast “hyper-flash”).
• Check that the tail lamp sits flush and doesn’t wiggle.
• If you replaced an LED tail lamp and still have an issue, the next step is a scan for body/lighting codes.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$220 (bulb) or $250-$650 (tail lamp assembly)

DIY Cost: $8-$25 (bulb) or $150-$450 (tail lamp assembly)

You Save: $80-$200 (bulb) or $100-$200+ (assembly) by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
