🔧 Pathfinder - Rear Turn Signal Bulb Replacement

Your Pathfinder’s rear turn signal bulbs sit inside the outer rear tail lamp assemblies. You’ll remove the tail lamp, twist out the turn-signal bulb socket, swap the bulb, then reassemble and test.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your Pathfinder uses standard (non-LED) rear turn signal bulbs.

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Let the tail lamp cool if it was recently on; bulbs can be hot.
• ⚠️ Don’t touch the glass of the new bulb with bare fingers; skin oils can shorten bulb life.
• ⚠️ Support the tail lamp when it’s loose so it doesn’t scratch the paint.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Plastic trim removal tool
• Clean nitrile gloves
• Safety glasses
• Small flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (7440A amber) - Replace in pairs - Qty: 2
• Dielectric grease packet - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the liftgate to access the inner edge of each tail lamp.
• Put on nitrile gloves and safety glasses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear tail lamp fasteners

• Open the liftgate and locate the fasteners on the inboard edge of the tail lamp (the side closest to the liftgate opening).
• Remove any small trim caps using a plastic trim removal tool (a non-metal pry tool that helps prevent scratches).
• Remove the lamp fasteners using a 10mm socket with a 1/4" ratchet and 6" extension (or use a Phillips #2 screwdriver if equipped with screws).

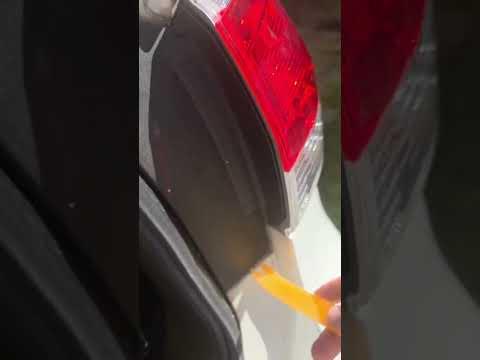

Step 2: Pull the tail lamp straight back to release the retaining clips

• Hold the lamp with both hands and pull it straight rearward (toward you).
• If it feels stuck, wiggle gently while pulling straight back—don’t pry against the painted body.
• Pull straight back to avoid breaking clips.

Step 3: Remove the rear turn signal bulb socket

• Find the turn signal bulb socket on the back of the lamp (usually the amber/turn position).
• Twist the socket counterclockwise by hand to unlock it, then pull it out.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket by hand (no tools needed).
• Install the new 7440A amber bulb by pushing it straight in until fully seated.
• Apply a very small amount of dielectric grease packet to the socket seal (not on the bulb glass).

Step 5: Reinstall the socket and tail lamp

• Reinsert the bulb socket into the lamp and twist clockwise until it locks.
• Line up the lamp’s locating pins/clips with the body and push the lamp straight forward until it seats flush.
• Reinstall the fasteners using a 10mm socket (or Phillips #2 screwdriver if equipped).
• Torque to 5 Nm (44 in-lbs)

Step 6: Repeat on the other side

• Repeat Steps 1–5 for the opposite rear turn signal.
• Replacing both sides prevents mismatched brightness.

---

✅ After Repair

• Turn the ignition ON and test: left signal, right signal, hazards.
• Walk behind the Pathfinder and confirm both rear turn signals flash bright and at a normal speed.
• If it “hyper-flashes” (very fast), recheck that the bulb is the correct type and fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $70-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
