🔧 CX-9 - Rear Turn Signal Bulb Replacement

You’ll remove the rear tail lamp assembly, twist out the turn-signal socket, and swap the bulb. This restores proper signaling and prevents fast-flash (hyperflash) caused by a burned-out bulb.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your CX-9 uses a replaceable amber rear turn-signal bulb (common on Sport trims).

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground, shift to Park, and set the parking brake.
• ⚠️ Turn ignition fully OFF and remove the key/fob from the vehicle.
• ⚠️ Let the tail lamp cool before handling (bulbs can get hot).
• ⚠️ Don’t touch the glass of the new bulb with bare fingers (skin oil can shorten bulb life).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Trim removal tool (plastic)
• Small flathead screwdriver
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber) - Qty: 1 (replace in pairs recommended)

---

📋 Before You Begin

• Open the rear hatch for easy access.
• Lay a towel on the bumper edge below the lamp to prevent scratches.
• Have your flashlight ready so you can see the fasteners and bulb sockets clearly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the tail lamp fasteners

• Open the hatch and locate the access area behind the tail lamp on the inside edge.
• Use a trim removal tool (plastic) to carefully pop off the small interior access cover (if equipped).
• If a clip is stubborn, use a small flathead screwdriver gently to start it, then finish with the trim tool.
• Tip: Pry slowly to avoid breaking clips.

Step 2: Remove the tail lamp nuts/bolts

• Use a 10mm socket with a 1/4" drive ratchet and 6" extension to remove the tail lamp retaining nuts/bolts you can see.
• Set the hardware aside where it won’t roll away.

Step 3: Release the tail lamp from the body clips

• Grab the tail lamp with both hands and pull it straight rearward (toward you).
• If it feels stuck, wiggle gently while pulling—don’t twist hard.
• Once it pops free, support it so it doesn’t scratch paint.
• Tip: Pull straight back to avoid breaking alignment pins.

Step 4: Remove the rear turn-signal bulb socket

• On the back of the tail lamp, find the turn-signal socket (usually one of the larger twist-lock sockets).
• Turn the socket counterclockwise about 1/4 turn by hand and pull it out.
• If it’s tight, use nitrile gloves for better grip.
• Tip: Don’t force it—re-seat and try again.

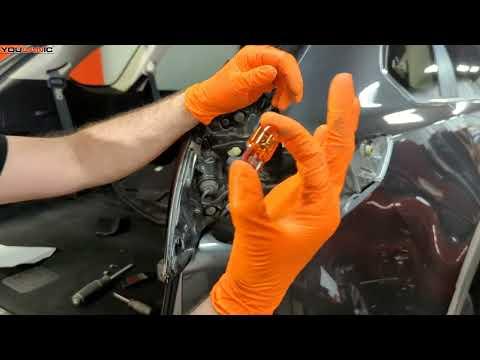

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket by hand.
• Install the new rear turn signal bulb (amber) by pushing it straight in until fully seated.
• Avoid touching the glass; use nitrile gloves.

Step 6: Test the turn signal before reassembly

• Reinsert the socket into the tail lamp and twist clockwise to lock.
• Turn ignition to ON and activate the turn signal for that side.
• Verify: normal blink speed, proper brightness, and no warning message.
• Turn ignition OFF again before final assembly.

Step 7: Reinstall the tail lamp

• Align the tail lamp locating pins with the body holes.
• Press the lamp straight forward until it seats flush.
• Reinstall the nuts/bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Tighten snugly—do not overtighten (the lamp housing can crack).

Step 8: Reinstall interior access cover/trim

• Snap the access cover and any clips back into place by hand.
• Use a flashlight to confirm the trim sits flat with no gaps.

---

✅ After Repair

• Test left and right rear turn signals, hazards, and brake lights.
• Check that the tail lamp is seated evenly and doesn’t wiggle.
• If the turn signal still fast-flashes, the bulb may be the wrong type or there may be a socket/wiring issue.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $5-$25 (parts only)

You Save: $35-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
