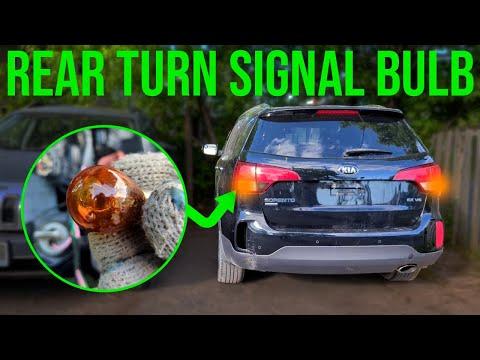

🔧 Sorento - Rear Turn Signal Bulb Replacement

Your Sorento’s rear turn signal bulbs sit inside the rear tail lamp assemblies. Replacing them is a simple access-and-twist job, but you have to remove the lamp cleanly so you don’t crack the lens or break the locating pins.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: This covers the common U.S. Sorento rear lamp with replaceable turn-signal bulbs; if your turn signals are LED, there won’t be a replaceable bulb in that position.

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let bulbs cool before touching; they get hot.
• ⚠️ Don’t touch the glass of a halogen bulb with bare fingers; skin oils can shorten bulb life.
• ⚠️ Support the tail lamp as you pull it out so it doesn’t drop and crack.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim removal tool (plastic) (specialty)
• Phillips #2 screwdriver
• 10mm socket
• 1/4" ratchet
• 1/4" torque wrench (inch-pound)
• Small flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber) - Replace in pairs - Qty: 2
• Dielectric grease (electrical) - Qty: 1
• Tail lamp retaining clips (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate for access.
• Set a towel/blanket nearby to place the tail lamp on once it’s off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the tail lamp fasteners

• Open the rear liftgate.
• From inside the cargo area, locate the access cover behind the rear tail lamp (left or right side panel).
• Use a trim removal tool (plastic) to pop off the access cover. Trim tool = plastic pry tool.

Step 2: Remove the tail lamp retaining fasteners

• Use a 10mm socket with a 1/4" ratchet to remove the tail lamp retaining nuts/bolts you can see through the access opening.
• If your lamp uses a visible screw at the lamp edge, remove it with a Phillips #2 screwdriver.
• Keep the fasteners in a small tray so they don’t get lost.

Step 3: Pull the tail lamp assembly off (straight back)

• Stand at the rear corner and place one hand on the lamp to support it.
• Pull the lamp straight rearward to release the locating pins/clips. Do not pry against the painted body.
• If it feels stuck, wiggle gently while pulling straight back. Don’t twist the lamp.

Step 4: Remove the rear turn signal bulb socket

• Look at the back of the tail lamp and identify the turn signal socket (typically the amber/turn position).
• Twist the socket counterclockwise by hand and pull it out.
• If access is tight, use a small flashlight to confirm you’re on the correct socket.

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new rear turn signal bulb (amber) by pushing it straight in until fully seated.
• Add a very small smear of dielectric grease (electrical) to the socket seal (not on the bulb glass).

Step 6: Reinstall the socket and tail lamp

• Reinsert the bulb socket and twist clockwise until it locks.
• Line up the locating pins/clips on the lamp with the body holes, then press the lamp straight in until fully seated.
• Reinstall the retaining nuts/bolts using a 10mm socket and 1/4" torque wrench (inch-pound): Torque to 4-6 Nm (35-53 in-lbs).
• Reinstall the access cover using the trim removal tool (plastic) and press it in until it snaps flush.

Step 7: Repeat on the other side

• Repeat Steps 1-6 for the opposite rear tail lamp so both bulbs match brightness and color.

---

✅ After Repair

• Turn the ignition to ON and test left and right rear turn signals and hazards.
• Confirm the lamp is seated evenly with the body and there are no gaps.
• If the turn signal blinks fast (hyperflash), re-check the bulb is fully seated and correct type; fast blinking usually means the circuit thinks a bulb is out.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $70-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
