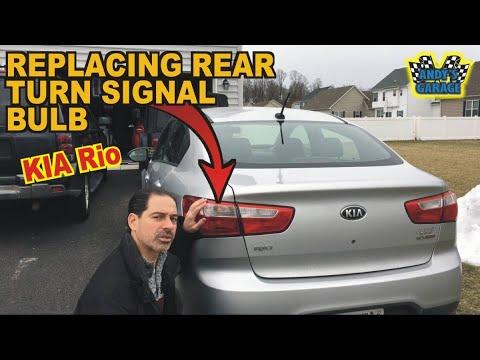

🔧 Rio - Rear Turn Signal Bulb Replacement

You’ll be removing the rear tail lamp assembly from inside the trunk, swapping the turn-signal bulb, then reinstalling everything. This is usually needed when the bulb burns out or you get a fast “hyper-flash” turn signal.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn all lights OFF and remove the key before starting.
• ⚠️ Bulbs can be hot—let the lamp cool for 5-10 minutes.
• ⚠️ Wear gloves: bulb glass can be sharp if it breaks.
• ⚠️ Don’t touch the new bulb’s glass with bare fingers; oils can shorten bulb life.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Phillips #2 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Plastic trim tool set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber) - Replace in pairs - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the trunk and remove any cargo so you can work comfortably.
• Trim tool = plastic pry tool for clips.
• Assumption: Your Rio uses a removable trunk-access tail lamp (typical) and an amber rear turn bulb; HowToo will match the exact bulb by fitment.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the tail lamp fasteners inside the trunk

• Use a flashlight to locate the trunk-side access panel/trim behind the tail lamp area.
• If trim is in the way, use a plastic trim tool set to gently pop out any push-clips (pull straight out to avoid breaking them).

Step 2: Remove the tail lamp retaining hardware

• Depending on build, you’ll have either nuts or screws holding the lamp.
• If you see nuts: use a 10mm socket, 1/4" drive ratchet, and 6" socket extension to remove them.
• If you see screws: use a Phillips #2 screwdriver to remove them.
• Torque note: Kia typically does not publish a service torque for these small lamp fasteners—reinstall snug only (do not overtighten; the lamp can crack).

Step 3: Remove the tail lamp assembly

• From outside the car, hold the lamp with both hands and pull it straight rearward.
• If it feels stuck on the alignment pins, wiggle gently while pulling straight back (do not pry against painted body panels).
• Steady pull beats hard yanking.

Step 4: Remove the rear turn signal bulb socket

• Find the turn signal socket on the back of the lamp (it’s one of the twist-lock sockets).
• Twist the socket counterclockwise by hand and pull it out.
• Twist-lock socket = a socket that turns to unlock.

Step 5: Replace the bulb

• Wear nitrile gloves.
• Pull the old bulb straight out of the socket (some types may need a slight twist—pull gently first).
• Install the new rear turn signal bulb (amber) fully into the socket.
• Optional: apply a tiny amount of dielectric grease to the socket seal (not on the bulb glass).

Step 6: Reinstall socket and tail lamp

• Reinsert the socket into the lamp and twist clockwise until it locks.
• Align the lamp’s guide pins to the body holes, then push the lamp straight into place.
• Reinstall the nuts with a 10mm socket and 1/4" drive ratchet or the screws with a Phillips #2 screwdriver.
• Reinstall any trunk trim/clips using the plastic trim tool set (press clips straight in).

---

✅ After Repair

• Turn the ignition ON and test: left signal, right signal, and hazards.
• Verify the flash rate is normal (fast flashing usually means a bulb isn’t working or isn’t seated).
• Check that the tail lamp sits flush with the body and doesn’t wiggle.

---

💰 DIY vs Shop Cost

Shop Cost: $50-$150 (parts + labor)

DIY Cost: $8-$25 (parts only)

You Save: $42-$125 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
