🔧 Envision - Rear Turn Signal Bulb Replacement

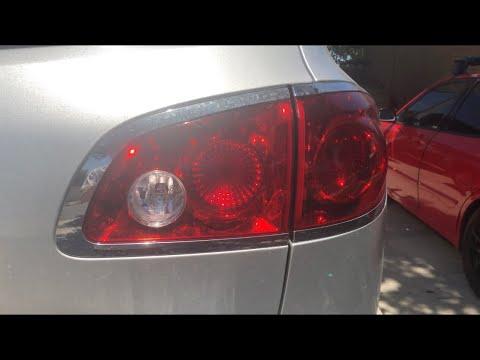

Your rear turn signals use a small amber bulb inside the outer tail lamp. Replacing it means accessing the lamp from inside the cargo area, swapping the bulb, then testing for proper flash rate.

Assumption: Your Envision has serviceable rear turn-signal bulbs (not a sealed LED-only tail lamp).

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground, shift to Park, and set the parking brake.
• ⚠️ Turn all lights OFF and remove the key/fob from the vehicle.
• ⚠️ Let the tail lamp cool if it was recently on.
• ⚠️ Wear gloves; skin oil can shorten bulb life.
• ⚠️ Support the tail lamp as you pull it out so it doesn’t drop and crack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Trim removal tool
• 10mm socket
• 1/4" ratchet
• 1/4" torque wrench (inch-pound or Nm)
• Small flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber, 7440A) - Replace in pairs - Qty: 2
• Dielectric grease - Qty: 1
• Trim panel retainer clips - Qty: 1

---

📋 Before You Begin

• Open the liftgate and remove any cargo so you can access the rear side panels.
• If you’re working on the left side, keep the cargo light from heating the area (turn the interior light off if possible).
• Lay a towel on the bumper corner below the tail lamp to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the tail lamp mounting area

• Use a trim removal tool to pop off the small access cover behind the tail lamp (inside the cargo area).
• If a clip is stubborn, use a small flat-blade screwdriver gently under the clip head. Work slowly to avoid breaking clips.
• Use a flashlight to locate the tail lamp retaining nuts.

Step 2: Remove the tail lamp assembly

• Use a 10mm socket with a 1/4" ratchet to remove the tail lamp retaining nuts.
• Support the lamp with one hand, then pull the tail lamp straight rearward to release the alignment pins.
• If it feels stuck, wiggle gently—do not pry against the painted body.

Step 3: Remove the turn signal bulb socket

• Find the turn-signal socket on the back of the tail lamp (it’s the socket feeding the amber turn signal area).
• Twist the socket counterclockwise by hand and pull it out.
• Counterclockwise = lefty-loosey.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket (no twisting for 7440-style bulbs).
• Install the new rear turn signal bulb (amber, 7440A) by pushing it straight in until fully seated.
• Apply a tiny amount of dielectric grease to the socket seal (not on the glass). Dielectric grease is a non-conductive grease that helps prevent corrosion and water leaks.

Step 5: Reinstall the socket and tail lamp

• Insert the socket back into the tail lamp and twist clockwise to lock.
• Align the tail lamp guide pins with the body, then press the lamp straight inward until fully seated.
• Reinstall the retaining nuts using a 10mm socket.
• Final tighten with a 1/4" torque wrench: Torque to 2.5 Nm (22 in-lb)
• Reinstall the access cover and any trim clips (use new trim panel retainer clips if any broke).

Step 6: Repeat on the other side

• Replace the other rear turn signal bulb the same way. Pairs help keep brightness matching.

---

✅ After Repair

• Turn the ignition on and test both rear turn signals and hazards.
• Verify the flash rate is normal (rapid flashing usually means a bulb isn’t working or isn’t seated).
• Check that the tail lamp sits flush with the body and there are no gaps in the seal.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $40-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
