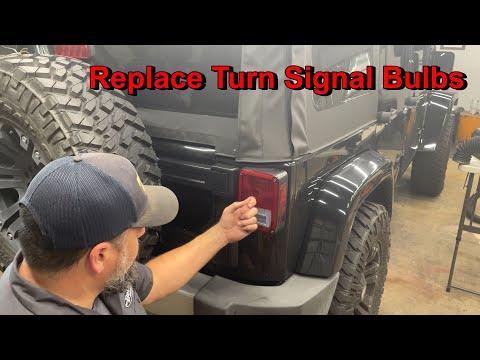

🔧 Wrangler - Rear Turn Signal Bulb Replacement

Your Wrangler’s rear turn signals are inside the tail lamp assemblies. Replacing the bulb means removing the tail lamp housing, twisting out the bulb socket, and swapping the bulb.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and keep the transmission in gear with the parking brake set.
• ⚠️ Turn the ignition OFF and remove the key before unplugging any lamp sockets.
• ⚠️ Let bulbs cool before touching; they can get hot.
• ⚠️ Don’t touch a new glass bulb with bare fingers; skin oil can shorten bulb life.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips screwdriver #2
• Trim clip removal tool
• Small flat-blade screwdriver
• Nitrile gloves
• Safety glasses
• Dielectric grease
• Clean microfiber towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and leave the transmission in gear.
• Switch the ignition OFF and remove the key.
• Lay a clean microfiber towel near the tail lamp to protect paint while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the tail lamp screws

• Open the tailgate.
• On the tail lamp you’re working on, use a Phillips screwdriver #2 to remove the two screws on the inboard edge (the side closest to the tailgate opening).
• Put the screws somewhere safe so they don’t fall into the bumper area.

Step 2: Pull the tail lamp housing straight back

• Hold the tail lamp housing with both hands and pull it straight rearward (straight back).
• If it feels stuck, use a trim clip removal tool to gently pry at the edge—go slow so you don’t crack the lamp.
• Tip: Wiggle gently; don’t twist hard.

Step 3: Remove the turn signal bulb socket

• Find the turn-signal socket on the back of the tail lamp (the socket that matches the turn-signal section of the lens).
• Twist the socket counterclockwise about 1/4 turn, then pull it out.
• (A “socket” is the plastic holder the bulb locks into.)

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket.
• Put on nitrile gloves and push the new bulb straight in until fully seated.
• If the bulb is glass, avoid touching it directly; use the clean microfiber towel if needed.

Step 5: Protect the connection and reinstall the socket

• Apply a very small amount of dielectric grease to the socket seal area (not on the bulb glass).
• Insert the socket back into the tail lamp and twist clockwise 1/4 turn until it locks.

Step 6: Reinstall the tail lamp housing

• Line up the tail lamp’s locating pins with the body grommets, then press the housing straight in by hand.
• Reinstall the two screws using the Phillips screwdriver #2 and snug them down.
• Do not overtighten—plastic housings can crack.

Step 7: Repeat on the other side

• Repeat Steps 1–6 for the opposite tail lamp so both rear turn signal bulbs are fresh.
• Tip: Replace in pairs for matching brightness.

---

✅ After Repair

• Turn the ignition ON and test left and right turn signals.
• Test hazards to confirm both rear turn signals flash evenly.
• If you get fast blinking, recheck the bulb seating and the socket lock.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
