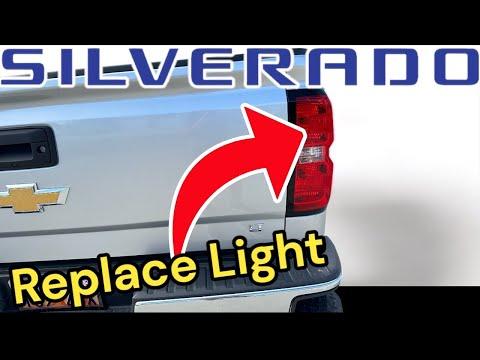

🔧 Silverado 1500 - Rear Turn Signal Bulb Replacement

You’ll remove the tail lamp assembly, twist out the bulb socket, and swap in a new bulb. This restores proper signaling and prevents fast-blink (hyperflash) that can happen when a bulb is burned out.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Let the tail lamps cool if they were just on.
• ⚠️ Don’t touch the glass of halogen bulbs with bare fingers (skin oils can shorten bulb life).
• ⚠️ Support the tail lamp with your hand so it doesn’t drop and crack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T15 screwdriver
• Plastic trim tool
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn/stop/tail bulb (7443) - Qty: 1
• Rear turn bulb (7440) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the tailgate to access the tail lamp screws.
• Tip: Replace bulbs in pairs for matching brightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open access and locate the tail lamp screws

• Lower the tailgate.
• Use a flashlight to find the two screws on the inside edge of the tail lamp (visible with the tailgate down).

Step 2: Remove the tail lamp assembly

• Use a Torx T15 screwdriver to remove the two tail lamp screws.
• Pull the tail lamp straight rearward to release the locating pins (it may take a firm tug).
• If it feels stuck, use a plastic trim tool to gently help it release (don’t pry on the painted metal).
• When reinstalling screws later: Torque to 2.5 Nm (22 in-lbs)

Step 3: Identify the correct bulb socket

• Turn the sockets counterclockwise by hand and remove them one at a time.
• The rear turn signal is usually the same bulb as the brake light on your Silverado (a dual-function bulb). If your tail lamp has a dedicated turn bulb, it will be a separate socket.
• Tip: Compare to the other side if unsure.

Step 4: Remove the old bulb

• Put on nitrile gloves.
• Pull the bulb straight out of the socket (it’s a friction fit).
• If it’s tight, wiggle it gently while pulling—don’t twist hard.

Step 5: Install the new bulb

• Install the new bulb by pushing it straight into the socket until fully seated.
• Bulb selection: If your turn signal shares the brake light, it’s typically 7443 (dual-function). If you have a dedicated turn bulb socket, it’s typically 7440 (single-function).
• A “dual-function” bulb has two brightness levels (dim for tail, bright for brake/turn).

Step 6: Reinstall the socket and tail lamp

• Insert the socket back into the tail lamp and twist clockwise by hand until it locks.
• Align the tail lamp locating pins and push the assembly straight in until fully seated.
• Install the two screws using a Torx T15 screwdriver: Torque to 2.5 Nm (22 in-lbs)

---

✅ After Repair

• Turn the ignition ON and test the rear turn signals, brake lights, and running lights.
• Verify the turn signal does not “fast blink” on the dash.
• If it still fast blinks, recheck the bulb seating and try swapping the bulb to the other side to confirm the bulb is good.

---

💰 DIY vs Shop Cost

Shop Cost: $40-$120 (parts + labor)

DIY Cost: $6-$20 (parts only)

You Save: $34-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
