🔧 Explorer - Rear Turn Signal Bulb Service

On your Explorer, the rear turn signals can be either replaceable bulbs or built-in LEDs, depending on the tail lamp style. The steps are different: bulbs can be replaced individually, LEDs require replacing the whole tail lamp unit.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🔸Always switch the ignition off and remove the key before working on lights.
• 🔸Do not work on the lamp with the turn signals switched on to avoid heat and shock.
• 🔸Be careful not to scratch the paint when prying near the tail lamp.
• 🔸If you disconnect the battery, you may lose radio presets and clock settings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸8mm socket
• 🔸1/4" drive ratchet
• 🔸1/4" drive extension (3–6")
• 🔸Trim removal tool (plastic)
• 🔸Small flathead screwdriver
• 🔸Clean gloves
• 🔸Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Rear turn signal bulb (7440 amber, incandescent) - Qty: 2 (replace in pairs)
• 🔸Tail lamp assembly (LED type, left or right, if needed) - Qty: 1 (only if your turn signal is LED and failed)

---

📋 Before You Begin

• 🔸Park the Explorer on level ground, shift to P, and set the parking brake.
• 🔸Turn off all lights and the ignition.
• 🔸Open the tailgate fully to access the tail lamp mounting area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm your tail lamp type

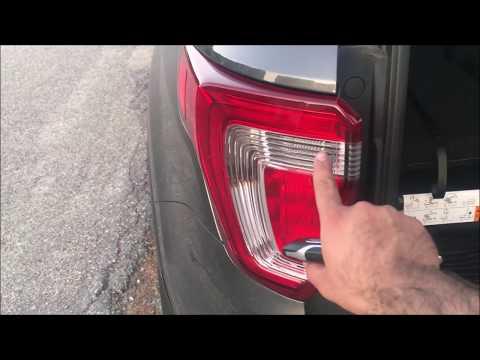

• 🔸Stand behind the Explorer and look closely at the rear tail lamps.
• 🔸If you see a single amber bulb behind the lens (looks like a normal bulb), you have the bulb type.
• 🔸If the turn signal looks like a solid light bar or several tiny dots, and you cannot see a clear bulb shape, you have the LED type.
• 🔸If LED type: the turn signal is built into the tail lamp; you must replace the whole tail lamp assembly, not just a bulb. The steps below still show how to remove the lamp; you will skip the “bulb swap” and replace the lamp instead.

Step 2: Open the tailgate and locate lamp fasteners

• 🔸Open the tailgate to expose the inner edge of the tail lamp on the body side.
• 🔸You will see two screws or bolts holding the tail lamp to the body near the inner vertical edge.
• 🔸If any plastic trim covers are present over the screws, gently pry them off with the trim removal tool (plastic) or small flathead screwdriver.

Step 3: Remove tail lamp mounting bolts

• 🔸Use the 8mm socket with the 1/4" drive ratchet and, if needed, the 1/4" drive extension (3–6") to remove the two tail lamp bolts.
• 🔸Set the bolts aside somewhere safe so they do not roll away.
• 🔸There are also plastic alignment pins on the outer edge of the lamp that push into the body; these are not bolts but hold it snugly.

Step 4: Release the tail lamp from the body

• 🔸Place one hand on the outer edge of the lamp and the other on the inner edge.
• 🔸Pull the lamp straight rearward, away from the vehicle. Do not pry outward sideways; the pins slide straight back.
• 🔸Use a trim removal tool (plastic) between the lamp and body only if it feels stuck, and gently wiggle to free the alignment pins.
• 🔸Support the lamp with one hand so it does not drop or hang by the wires.
• Rock gently, don’t yank hard

Step 5: Disconnect the tail lamp electrical connector

• 🔸Look at the back of the lamp and locate the main electrical connector.
• 🔸Press the locking tab on the connector with your thumb or the small flathead screwdriver and pull the connector straight out.
• 🔸Set the lamp face-down on a clean, soft surface to avoid scratches.

Step 6: Remove the rear turn signal bulb socket (bulb type only)

• 🔸On the rear of the lamp, find the socket labeled or positioned for the turn signal (usually the lower or middle socket with an amber bulb).
• 🔸Grasp the socket firmly and twist it about a quarter turn counterclockwise by hand.
• 🔸Pull the socket straight out of the lamp housing.

Step 7: Replace the rear turn signal bulb (bulb type)

• 🔸While holding the socket, gently pull the old bulb straight out.
• 🔸Do not twist the bulb; it pulls straight from the socket.
• 🔸Take the new 7440 amber bulb and push it straight into the socket until it seats firmly.
• 🔸Avoid touching the glass with bare fingers; use clean gloves to keep oils off the bulb.

Step 8: Reinstall bulb socket or replace lamp (LED type)

• 🔸For bulb type: insert the bulb and socket back into the lamp opening and twist clockwise about a quarter turn until it locks.
• 🔸For LED type: skip socket steps and position your new tail lamp assembly nearby, ready to install.

Step 9: Reconnect the electrical connector

• 🔸Plug the main connector back into the tail lamp until it clicks.
• 🔸Gently tug to confirm it is locked in place.

Step 10: Test the rear turn signal

• 🔸Temporarily hold the lamp in position by hand (do not bolt it yet).
• 🔸Have a helper sit in the driver’s seat, turn the ignition to ON (engine can stay off), and activate the left or right turn signal.
• 🔸Confirm the new bulb or lamp flashes normally and is as bright as the other side.
• Compare left and right brightness carefully

Step 11: Reinstall the tail lamp

• 🔸Align the plastic alignment pins on the outer edge of the lamp with the holes in the body.
• 🔸Push the lamp straight forward into place until it sits flush with the body.
• 🔸Install the two mounting bolts with the 8mm socket and 1/4" drive ratchet.
• 🔸Snug the bolts firmly; do not over-tighten. Target around Torque to 3–4 Nm (2–3 ft-lbs)—just hand snug with a small ratchet.
• 🔸If there were plastic covers, snap them back over the bolt heads.

Step 12: Final lighting check

• 🔸Check left and right turn signals, brake lights, tail lights, and hazard lights.
• 🔸Make sure the lamp sits evenly with no gaps against the body.

---

✅ After Repair

• 🔸Drive around your neighborhood and use both turn signals a few times to confirm normal flashing.
• 🔸If the signal flashes very fast, it often means a bulb is not working or a connector is loose—recheck your work.
• 🔸Recheck the lamp bolts after a few days to ensure they have not loosened.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$150 (bulb type, parts + labor) or $350–$650 per side (LED tail lamp replacement)

DIY Cost: $10–$20 (bulb type) or $250–$450 (LED tail lamp assembly)

You Save: $60–$130 on bulb replacement or $100–$200 on LED lamp replacement by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
