🔧 Rear Turn Signal Bulbs - Bulb Replacement

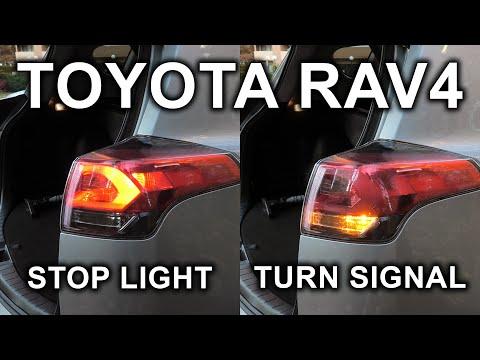

The rear turn signal bulbs on your RAV4 are located in the tail lamp housings. Replacing them is a straightforward job that usually takes only a few minutes per side, and it’s smart to replace both sides at the same time so the brightness matches.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the ignition off and remove the key/fob from the vehicle.
• Let the tail lamps cool down before touching them if they were recently on.
• Do not touch the new bulb glass with bare fingers; skin oil can shorten bulb life.
• No battery disconnect is required for this repair.
• Use care around the tail lamp lens so you do not crack the plastic.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Trim panel tool
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb - 7440A amber - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate.
• Keep the headlights and turn signals switched off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the rear access area

• Open the liftgate and locate the rear trim access area behind the tail lamp on the side you are replacing.
• Keep the work area clear.

Step 2: Remove the tail lamp retaining fasteners

• Use a 10mm socket, ratchet, and short extension to remove the tail lamp retaining nuts/bolts inside the cargo area.
• Set the fasteners aside where you will not lose them.

Step 3: Release the tail lamp assembly

• Gently pull the tail lamp straight rearward to release the alignment pins.
• If it sticks, use a trim panel tool to help start the release without scratching the paint.

Step 4: Remove the bulb socket

• Twist the rear turn signal bulb socket counterclockwise and remove it from the lamp housing.
• Pull the old bulb straight out of the socket.

Step 5: Install the new bulb

• Install the new 7440A amber bulb into the socket.
• Handle the bulb by the base, not the glass.

Step 6: Reinstall the socket and tail lamp

• Insert the socket back into the lamp housing and twist clockwise to lock it in place.
• Align the tail lamp pins and press the lamp back into position.
• Reinstall the retaining fasteners with the 10mm socket, ratchet, and short extension.
• Torque to 6.0 Nm (53 in-lbs).

Step 7: Repeat on the other side

• Repeat the same steps for the opposite rear turn signal bulb.
• Replace both sides together.

---

✅ After Repair

• Turn the ignition on and test both rear turn signals.
• Check that the hazard lights flash normally.
• Confirm the bulb sits fully in the socket and the tail lamp is flush with the body.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $70-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
