🔧 Corolla - Rear turn signal bulb replacement

You’ll be replacing the rear turn signal bulbs in the tail lights on your Corolla. The job is done from inside the trunk by removing a small trim cover, twisting the bulb holder out, and swapping the bulb.

Difficulty Level: Beginner | Estimated Time: 20–30 minutes

---

⚠️ Safety & Precautions

• 🔸Turn the ignition off and remove the key before working on lights.
• 🔸Let the bulbs cool for a few minutes if they were just on; they can be hot.
• 🔸Keep the trunk lid supported and clear of your head while you work.
• 🔸Avoid touching the glass of any bulb with bare fingers; use a clean cloth.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸Trim removal tool (plastic)
• 🔸Flathead screwdriver (small)
• 🔸10mm socket
• 🔸1/4" drive ratchet
• 🔸Short 1/4" drive extension
• 🔸Work light or flashlight
• 🔸Mechanic gloves
• 🔸Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Rear turn signal bulb (7440 amber, right side) - Qty: 1
• 🔸Rear turn signal bulb (7440 amber, left side) - Qty: 1 Replace in pairs for even brightness.
• 🔸Replacement trunk trim clips - Qty: 4–6 Optional, in case any break.
• 🔸Dielectric grease (for bulb contacts) - Qty: 1 small tube

---

📋 Before You Begin

• 🔸Park on level ground, shift to Park, and set the parking brake.
• 🔸Turn off the headlights and hazard flashers; remove the key.
• 🔸Open the trunk fully and clear out any items near the tail light areas.
• 🔸Have the new bulbs ready and unboxed so you can swap quickly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the rear lamp area from the trunk

• 🔸Open the trunk and look at the inner side walls near each tail light; you’ll see a small fabric or plastic trim panel/cover.
• 🔸Use the trim removal tool (plastic) or the edge of the flathead screwdriver (small) to gently pry off the small access cover on the side you’re working on.
• 🔸Pull the cover away and set it aside so you can see the back of the tail light assembly and the bulb holders.
• Work on one side at a time.

Step 2: Decide if you need to loosen the lamp

• 🔸On many Corollas, you can reach the turn signal bulb socket directly through the access opening.
• 🔸If you cannot get your hand on the socket easily, you may need to loosen the lamp by removing two nuts.
• 🔸If needed, use the 10mm socket with the 1/4" drive ratchet and short 1/4" drive extension to remove the visible 10mm nuts holding the lamp from inside the trunk.
• 🔸Gently wiggle the lamp backward from the body just enough to get better access; do not pull hard on the wiring.
• Only loosen as much as needed for hand access.

Step 3: Identify the rear turn signal socket

• 🔸Looking at the back of the tail light, you will see multiple bulb sockets.

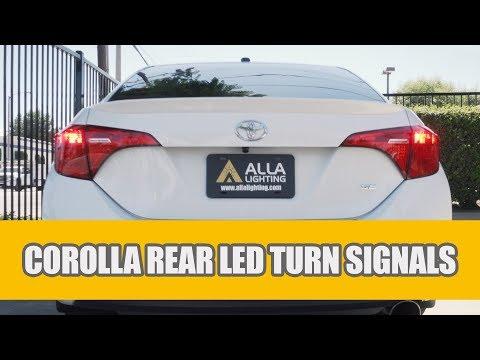

• 🔸The rear turn signal bulb on your Corolla is the outer amber section of the tail lamp; from the back, it is usually the socket closest to the outer edge and slightly lower.
• 🔸Compare with the outside lens: have a helper turn the right or left turn signal on briefly so you can confirm which socket lights up, then switch it back off before you remove anything.
• Confirm the correct socket before removing.

Step 4: Remove the bulb socket

• 🔸Grip the correct socket firmly.
• 🔸Twist the socket about a quarter-turn counterclockwise by hand.
• 🔸Pull the socket straight out of the lamp housing; the bulb will come out attached to the socket.
• If tight, wiggle gently—don’t force.

Step 5: Remove the old bulb

• 🔸Hold the socket in one hand and grasp the bulb base (the plastic part) with the other hand.
• 🔸Pull the old bulb straight out of the socket; it is a “wedge” style bulb that just slides in and out.
• 🔸If it’s stuck, rock it very slightly side-to-side while pulling.
• 🔸Dispose of the old bulb safely; don’t leave it in the trunk.

Step 6: Install the new bulb

• 🔸Without touching the glass, align the new 7440 amber bulb with the socket opening.
• 🔸Push the bulb straight into the socket until it seats firmly.
• 🔸Apply a tiny amount of dielectric grease to the metal contacts if you have it; this helps prevent corrosion.
• Use a clean cloth if you touch the glass.

Step 7: Test the bulb before reassembly

• 🔸With the socket still hanging free (not yet back in the lamp), have a helper turn the ignition to ON (engine can stay off) and activate the turn signal or hazard lights.
• 🔸Make sure the new bulb lights and flashes at a normal speed.
• 🔸If it does not light, turn everything off, remove the bulb, check it is fully seated, and reinstall. Try again.
• 🔸Once confirmed, switch the ignition and lights back off.

Step 8: Reinstall the bulb socket into the tail lamp

• 🔸Line up the tabs on the socket with the slots in the tail lamp opening.
• 🔸Insert the socket straight into the opening.
• 🔸Twist the socket clockwise about a quarter-turn until it locks firmly in place.
• If it doesn’t turn, remove and realign the tabs.

Step 9: Re-secure the tail lamp (if loosened)

• 🔸If you loosened the lamp, push it gently back into its normal position on the body.
• 🔸Install the 10mm nuts by hand first to avoid cross-threading.
• 🔸Use the 10mm socket and 1/4" drive ratchet to snug the nuts just until they are firmly tight.
• 🔸Do not over-tighten; these studs are small and only need light torque (factory spec is low, around 5 Nm / 44 in-lb).

Step 10: Reinstall the trunk trim cover

• 🔸Position the trunk access cover back over the opening.
• 🔸Press it into place until any clips snap in securely.
• 🔸Check that the fabric or plastic trim sits flat and does not interfere with the trunk closing.

Step 11: Repeat for the other side

• 🔸Repeat the same steps on the opposite side to replace the other rear turn signal bulb.
• 🔸Replacing bulbs in pairs keeps brightness and color consistent.

---

✅ After Repair

• 🔸Turn the ignition to ON and test left and right turn signals from inside and outside the car.
• 🔸Turn on the hazard lights and walk around the car to confirm both rear turn signals flash normally.
• 🔸Check that the tail lights, brake lights, and reverse lights still work correctly.
• 🔸Close the trunk and confirm it latches easily and no trim is pinched.

---

💰 DIY vs Shop Cost

Shop Cost: $60–$120 (parts + labor)

DIY Cost: $10–$25 (parts only, both sides)

You Save: $50–$95 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
