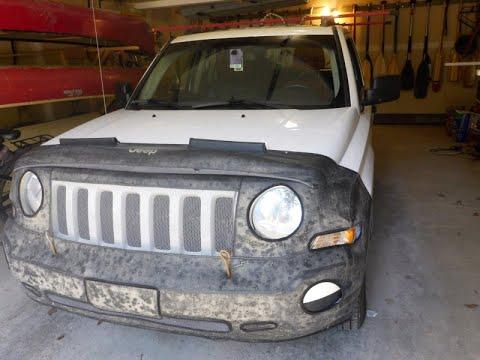

🔧 Patriot - Rear Turn Signal Bulb Replacement

Your Patriot’s rear turn signal bulbs sit inside the tail lamp assembly. The job is mainly removing the tail lamp, swapping the bulb, and reinstalling everything without breaking the alignment pins.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

Assumption: Most Patriots use a 3157 bulb for rear turn/stop.

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Let bulbs cool first; they can get hot.
• ⚠️ Don’t touch the new bulb glass with bare fingers; skin oils can shorten bulb life.
• ⚠️ Support the tail lamp as you pull it out to avoid cracking the lens.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips #2 screwdriver
• Plastic trim removal tool
• Nitrile gloves
• Safety glasses
• Small flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (3157) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate for access to the tail lamp fasteners.
• Put on safety glasses and nitrile gloves.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the tail lamp screws

• Open the liftgate and locate the two screws on the inboard edge of the tail lamp (the side closest to the liftgate opening).
• Use a Phillips #2 screwdriver to remove both screws.

Step 2: Pull the tail lamp assembly free

• Grab the tail lamp with both hands and pull it straight back from the body.
• If it’s stuck, use a plastic trim removal tool to gently start the separation.
• Tip: Pull straight back to protect the alignment pins.

Step 3: Remove the turn signal bulb socket

• Find the turn/stop bulb socket on the back of the tail lamp (it’s a twist-lock socket).
• Twist the socket counterclockwise by hand and pull it out.
• Use a flashlight if needed to identify the correct socket.
• Definition: A “twist-lock socket” unlocks with a short twist instead of screws.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new 3157 bulb by pushing it straight in until fully seated.
• If you have it, apply a very light film of dielectric grease to the socket seal (not on the bulb glass).

Step 5: Reinstall the socket and test

• Insert the socket back into the tail lamp and twist clockwise until it locks.
• Turn the ignition to RUN and switch on the turn signal to confirm it flashes normally.
• If it doesn’t work, turn ignition OFF and re-check the bulb seating and socket lock.

Step 6: Reinstall the tail lamp

• Line up the tail lamp alignment pins with the body holes and press the lamp straight in until fully seated.
• Reinstall the two screws using a Phillips #2 screwdriver.
• Torque to 3 Nm (27 in-lbs)

---

✅ After Repair

• Verify the rear turn signal flashes at a normal speed on both sides.
• Verify brake lights work (rear bulb is often shared with turn signal).
• Make sure the tail lamp sits flush with the body and doesn’t wobble.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $5-$20 (parts only)

You Save: $55-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
