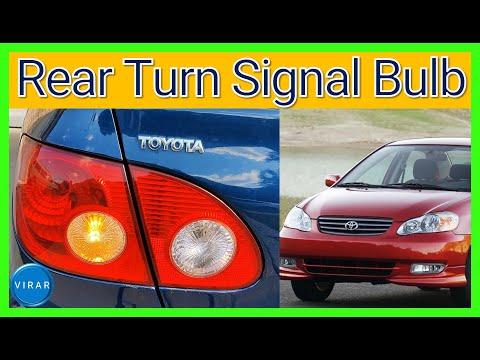

🔧 Corolla - Rear Turn Signal Bulb Replacement

You’ll access the rear lamp from inside the trunk, remove the tail lamp assembly, then swap the turn-signal bulb in the socket. This restores proper signaling and avoids fast-flash on the dash.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let bulbs cool first; they can get hot.
• ⚠️ Don’t touch the new bulb glass with bare fingers; skin oils can shorten bulb life.
• ⚠️ Support the tail lamp as you pull it out so it doesn’t scratch the paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (7440 amber) - Replace in pairs - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🧰 Open the trunk and clear cargo so you can reach the trunk liner.
• 📎 A “trim clip removal tool” is a small pry tool made to pop plastic fasteners without breaking them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open up access inside the trunk

• Use a flashlight to locate the trunk liner behind the tail lamp area.
• Remove any plastic clips or retainers using a trim clip removal tool.
• Fold the liner back to expose the tail lamp mounting studs/nuts.

Step 2: Remove the tail lamp assembly

• Use a 10mm socket, 6" extension, and 1/4" ratchet to remove the tail lamp retaining nuts.
• Hold the lamp with one hand while removing the last nut so it doesn’t drop or scrape the paint.
• Pull the tail lamp straight rearward to release the locating pins.
• Wiggle gently; don’t pry on paint.
• If your lamp has a wiring connector you need to unplug, release the lock tab by hand (no tools) and disconnect it.
• Tightening note: Reinstall nuts snug (Toyota does not publish a service torque for these lamp nuts in many manuals). Do not overtighten—plastic studs can crack.

Step 3: Remove the turn-signal bulb socket

• Identify the turn-signal socket on the back of the tail lamp (it’s the one that twists out).
• Twist the socket counterclockwise by hand and pull it out.

Step 4: Replace the bulb

• Wear nitrile gloves and pull the old bulb straight out of the socket.
• Install the new 7440 amber bulb by pushing it straight in until fully seated.
• Optional: Apply a tiny smear of dielectric grease to the socket seal. (Dielectric grease helps prevent moisture/corrosion.)

Step 5: Reinstall the socket and tail lamp

• Insert the socket back into the lamp and twist clockwise by hand until it locks.
• Align the lamp’s locating pins and press the assembly straight into place.
• Reinstall the nuts using the 10mm socket, extension, and ratchet, then snug them evenly.
• Reposition the trunk liner and reinstall clips with the trim clip removal tool (press clips in by hand once aligned).

Step 6: Repeat on the other side

• Repeat Steps 1–5 for the opposite rear turn signal.

---

✅ After Repair

• 🔁 Turn the ignition ON and test left and right turn signals.
• 👀 Verify the turn signal flashes at a normal rate (fast flashing usually means a bulb isn’t working or isn’t seated).
• 🌧️ After the next rain or car wash, check the trunk area for any signs of water intrusion around the lamp.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$150 (parts + labor)

DIY Cost: $6-$20 (parts only)

You Save: $40-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
