🔧 Acadia - Rear Turn Signal Bulb Replacement

Your Acadia’s rear turn signal may use a traditional replaceable bulb, or it may be an LED unit (no serviceable bulb). The first check is what you see when it’s flashing: a single bright “bulb” spot usually means a replaceable bulb; an even “LED bar” often means the whole lamp/module is the part.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key/fob from the vehicle.
• ⚠️ Let the tail lamp area cool if the lights were recently on.
• ⚠️ Do not touch a new bulb’s glass with bare fingers; oils can shorten bulb life.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Plastic trim removal tool
• Clean nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate for easier access to the rear lamp fasteners.
• Use a flashlight and identify which side is out (left or right).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you have a replaceable bulb (vs LED)

• Turn the hazard lights ON and walk behind your Acadia.
• If the turn signal area looks like a single bright point, proceed with bulb steps below.
• If it looks like an even LED strip/panel and that section is out, the lamp/module is typically not bulb-serviceable (skip to Step 8).

Step 2: Remove the rear tail lamp fasteners

• Turn hazards OFF.
• With the liftgate open, locate the tail lamp fasteners along the inboard edge of the tail lamp (near the liftgate opening).
• Use a plastic trim removal tool to pop off any small access covers (if equipped).
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the tail lamp nuts/bolts.

Step 3: Remove the tail lamp assembly

• Hold the lamp with one hand and gently pull it straight rearward.
• If it feels stuck, wiggle gently while pulling straight back; there are alignment pins that can hold tight.
• Tip: Don’t pry on painted surfaces.

Step 4: Locate the turn signal bulb socket

• Behind the lamp, find the bulb sockets going into the housing.
• The turn signal socket is usually labeled on the housing or sits in the turn signal reflector area.
• Use a flashlight to verify you’re on the correct socket.

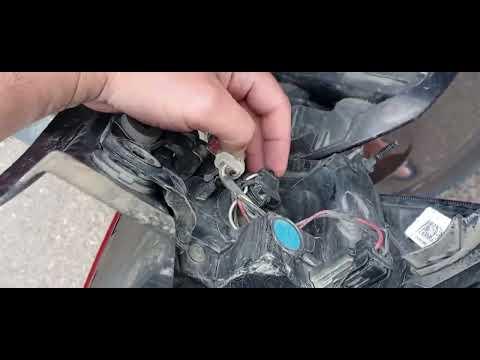

Step 5: Remove the bulb socket and bulb

• Twist the socket counterclockwise by hand and pull it out.
• Remove the bulb from the socket (most pull straight out; some twist slightly).
• Wear clean nitrile gloves so you don’t contaminate the new bulb.

Step 6: Install the new bulb and reinstall the socket

• Install the new bulb fully into the socket.
• Apply a very small amount of dielectric grease to the socket seal if it looks dry.
• Reinstall the socket into the lamp and twist clockwise until it locks.

Step 7: Reinstall the tail lamp assembly

• Align the lamp’s guide pins with their holes and push the lamp straight in.
• Reinstall the fasteners using the 10mm socket, 1/4" drive ratchet, and 6" extension.
• Torque to 2 Nm (18 in-lbs).
• Reinstall any access covers using the plastic trim removal tool.

Step 8: If your rear turn signal is LED (no bulb)

• If the turn signal section is LED and out, the fix is typically replacing the affected tail lamp assembly.
• Before buying parts, confirm it’s not a wiring/connector issue: unplug/replug the lamp connector firmly and re-test.
• If you want, tell me whether it’s the left or right side, and whether the turn signal is a “bulb point” or “LED strip,” and I’ll guide the exact part-level path.

---

✅ After Repair

• Turn hazards ON and confirm the repaired side flashes normally.
• Verify brake light and reverse light still work on that side (you may have bumped another socket).
• If the turn signal flashes fast on the dash, re-check the bulb is fully seated and the socket is locked.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $5-$25 (parts only)

You Save: $55-$175 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
