🔧 Rogue - Rear Taillight Bulb Replacement

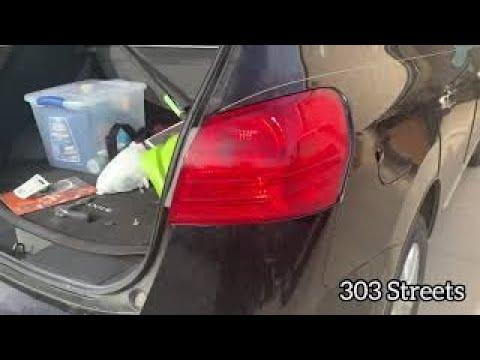

You’ll be replacing the rear running/brake light bulbs in both rear outer taillight assemblies on your Rogue. This involves removing each taillight from the body, swapping the bulb, and reinstalling the lamp.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🔸Always turn the ignition OFF and remove the key before working on lights.
• 🔸Do not touch the new bulb glass with bare fingers; oil can shorten bulb life.
• 🔸Work on level ground and keep the parking brake engaged so the Rogue can’t roll.
• 🔸Battery disconnect isn’t required, but you may disconnect the negative terminal with a 10mm wrench if you want extra safety.
• 🔸Pull the taillight straight rearward; prongs can break if you twist or pry sideways.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸Phillips #2 screwdriver
• 🔸10mm socket
• 🔸1/4" drive ratchet
• 🔸3" 1/4" drive extension
• 🔸Plastic trim removal tool set (specialty) (plastic levers that help pry panels without scratching)
• 🔸Latex or nitrile gloves
• 🔸Safety glasses
• 🔸Small clean towel or fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Rear tail/brake light bulb (7443 dual-filament) - Qty: 2 Replace in pairs
• 🔸Dielectric grease for bulb sockets - Qty: 1 small tube
• 🔸Replacement taillight housing clips - Qty: 2–4 Optional, in case clips break

If your taillight uses LEDs and you don’t see any twist-out bulb sockets, the entire taillight assembly must be replaced instead of a bulb.

---

📋 Before You Begin

• 🔸Park the Rogue on a flat surface, set the parking brake, and switch the ignition OFF.
• 🔸Open the rear liftgate fully for better access and light.
• 🔸Remove any cargo that blocks access to the sides of the rear area.
• 🔸Put on safety glasses and gloves to protect your eyes and hands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the taillight mounting screws

• 🔸Open the liftgate to expose the inside edge of the taillight on the body (not the part on the liftgate).
• 🔸Locate the two visible screws near the inner edge of the taillight, facing the liftgate opening.
• 🔸Use the Phillips #2 screwdriver to remove both screws and set them aside safely.

Step 2: Release the taillight from the body clips

• 🔸Stand at the rear corner of the Rogue and place one hand on the outer edge of the taillight and the other at the inner edge.
• 🔸Gently pull the whole taillight assembly straight rearward away from the vehicle. It’s held by two ball-type alignment pins that pop out.
• 🔸If it feels stuck, use a plastic trim removal tool between the lamp and body, and gently pry while pulling straight back. Do not pry on paint edges

Step 3: Disconnect the wiring and locate the tail/brake bulb

• 🔸With the taillight pulled back, support it with one hand or rest it on a small clean towel on the bumper to avoid scratches.
• 🔸Look at the back of the taillight. You’ll see several round bulb sockets.
• 🔸The tail/brake bulb is usually the larger dual-filament bulb in the upper or middle socket. Follow the thicker harness section to identify it.
• 🔸If needed, unplug the main connector by pressing the tab with your thumb and pulling the connector off by hand.

Step 4: Remove the old tail/brake bulb

• 🔸Grip the tail/brake bulb socket and turn it about a quarter turn counterclockwise using your fingers.
• 🔸Pull the socket straight out of the taillight housing.
• 🔸Pull the old bulb straight out of the socket. Rock it gently if it’s tight.
• 🔸Inspect the socket for corrosion or burning. If badly damaged, the socket may also need replacement.

Step 5: Install the new bulb

• 🔸Apply a very small amount of dielectric grease to the bulb’s metal base if you have it. Use only a thin film
• 🔸Using gloves or holding the glass with a clean towel, push the new 7443 tail/brake bulb firmly into the socket until fully seated.
• 🔸Line up the tabs on the socket with the slots in the taillight housing, insert the socket, and turn it a quarter turn clockwise to lock it in place.

Step 6: Test the new bulb on that side

• 🔸Temporarily reconnect the main taillight electrical connector if you disconnected it, using your hands only.
• 🔸Have a helper press the brake pedal and turn on the headlights, or use a heavy object on the brake pedal.
• 🔸Check that the new bulb lights for both the tail (dim) and brake (bright) functions.
• 🔸Turn lights off again before proceeding.

Step 7: Reinstall the taillight on that side

• 🔸Make sure all sockets are locked and the main connector is fully plugged in (you should hear or feel a click).
• 🔸Align the two alignment pins on the back of the taillight with the holes in the body.
• 🔸Push the taillight straight forward into place until both pins fully seat and the lamp sits flush with the body.
• 🔸Install the two taillight screws with the Phillips #2 screwdriver or 10mm socket and 1/4" ratchet.
• 🔸Snug them down and, if you use a torque wrench, torque to 5.4 Nm (48 in-lbs). Do not overtighten; plastic can crack

Step 8: Repeat for the other side

• 🔸Perform the same Steps 1–7 on the opposite taillight so both bulbs are new and match in brightness.

Step 9: Final lighting check

• 🔸With a helper, turn on the headlights, press the brake pedal, and shift to reverse (with your foot on the brake and parking brake set) to confirm all rear lights work: tail, brake, turn, and reverse.
• 🔸Confirm both taillights sit evenly and there are no gaps between the lamp and body.

---

✅ After Repair

• 🔸Test tail lights, brake lights, turn signals, and reverse lights in low light so you can easily see brightness and coverage.
• 🔸Listen for any rattles from the rear; if you hear any, recheck that the taillight screws and clips are fully seated.
• 🔸No scan tool or dashboard reset is required for this repair.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$140 (parts + labor)

DIY Cost: $10–$25 (parts only)

You Save: $55–$115 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
