🔧 Escape - Taillight Bulb Replacement

On your Escape, most rear lights are LEDs (built into the lamp and not replaceable individually), but the reverse lamps and some inner lamps can still use replaceable bulbs. The exact steps depend on which rear light you’re changing and whether it’s on the body side or liftgate.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🛑 Always switch the ignition off and remove the key before working on lights.
• 🧯 Do not work on the lights with the engine running to avoid shorts or burns.
• 🧤 Avoid touching glass bulbs with bare fingers; oil on skin can shorten bulb life.
• 🔌 For this job, battery disconnect is not required, but you may if you prefer.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔧 8mm socket
• 🔧 1/4" ratchet
• 🔧 1/4" extension (3–6")
• 🪛 Trim removal tool (plastic)
• 🪛 Small flathead screwdriver (3–4 mm tip)
• 🧤 Nitrile gloves
• 🕶️ Safety glasses
• 🔦 LED work light or flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 💡 Rear reverse light bulbs (W16W or equivalent) - Qty: 2
• 💡 Rear taillight service bulbs (if equipped, check socket type) - Qty: 2
• 🧴 Dielectric grease (for electrical contacts) - Qty: 1
• 📎 Rear trim panel clips (spares) - Qty: 6–10

---

📋 Before You Begin

• Park the Escape on level ground, engage the parking brake, and switch the ignition off.
• Open the liftgate fully so you can access the rear lamp and inner trim.
• Empty the cargo area near the rear so you can move around easily.
• If working at night or in a dim area, set up your work light behind the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulbs you’re replacing

• 🧠 Stand behind the Escape and note which lights are out: running/tail light (on with headlights), brake, turn signal, or reverse (white light when in Reverse).
• Ask a helper to press the brake and select Reverse (with foot on brake) while you look, or use a wall reflection.
• This guide focuses on the common replaceable bulbs: reverse and any serviceable taillight bulbs in the outer lamp.

Step 2: Access the outer rear lamp fasteners

• Open the liftgate fully.
• Use the trim removal tool (plastic) to gently pry off the small plastic access cover on the side of the cargo opening next to the lamp you’re working on.
• Behind that cover you’ll see a metal stud with a nut or a bolt head.
• Use the 8mm socket with the 1/4" ratchet and extension to remove the nut/bolt holding the lamp.

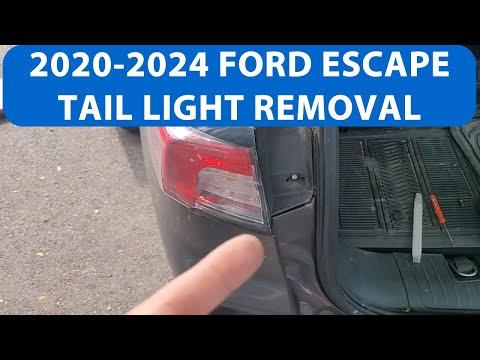

Step 3: Remove the outer taillight assembly

• From the outside of the vehicle, place one hand on the side of the lamp near the body seam.
• Gently pull the lamp straight rearward; there are locator pins that pop out of grommets.
• If it feels stuck, wiggle it slightly while pulling straight back. Do not pry with metal tools to avoid paint damage.
• Work slowly; pins will release with firm, even pressure.

Step 4: Disconnect the wiring connector

• Locate the electrical connector on the back of the lamp.
• Use the small flathead screwdriver to gently lift the connector locking tab while pulling the connector straight off by hand.
• Set the lamp on a soft cloth or cardboard to prevent scratching it.

Step 5: Replace any serviceable bulbs in the outer lamp (if equipped)

• On many 2020 Escapes, the tail/stop/turn functions are LED and do not use replaceable bulbs.
• If your lamp has a removable bulb holder, twist the bulb socket counterclockwise by hand to remove it.
• Pull the old bulb straight out of the socket.
• With gloves on, push the new bulb firmly into the socket until fully seated.
• Apply a very small dab of dielectric grease to the metal contacts if available.
• Reinsert the socket into the lamp and twist it clockwise to lock.

Step 6: Access the inner liftgate reverse lamp bulb

• Move to the inside of the liftgate (the inner lamp section in the liftgate usually contains the reverse bulb).
• Use the trim removal tool to carefully pry down the small plastic access panel directly behind the inner lamp.
• Gently pull the panel away; it is held by clips. If a clip breaks, you can replace it later.

Step 7: Remove the reverse light bulb socket

• Look through the opening and locate the bulb socket that lines up with the white portion of the lens (reverse light).
• Grip the socket by hand and twist it counterclockwise about a quarter turn.
• Pull the socket straight out from the lamp housing.

Step 8: Replace the reverse light bulb

• Hold the socket and pull the old bulb straight out.
• If it is tight, gently rock it while pulling; do not twist the glass.
• With your gloves on, insert the new bulb straight into the socket until fully seated.
• Apply a thin layer of dielectric grease to the socket contacts if you have it.
• Do both sides now so brightness matches.

Step 9: Reinstall the reverse bulb socket and trim

• Line the bulb and socket up with the opening in the lamp housing.
• Push the socket into the housing and twist clockwise until it stops and feels locked.
• Position the trim access cover back in place and press firmly around the edges until all clips snap in.

Step 10: Reinstall the outer taillight assembly

• Reconnect the wiring connector to the back of the outer lamp; push until you hear/feel a click.
• Align the locator pins on the lamp with the holes in the body.
• Press the lamp straight forward into place until it sits flush with the body.
• From inside the cargo opening, reinstall the 8mm nut/bolt using the 8mm socket and ratchet.
• Tighten snugly by hand, do not overtighten (about 5–7 Nm / 4–5 ft‑lbs is typical for these small fasteners).
• Snap the small interior access cover back into place.

Step 11: Repeat on the other side

• Repeat Steps 2–10 for the other rear lamp so both sides match.
• Doing both sides now prevents one failing soon after.

---

✅ After Repair

• With the ignition on, have a helper check: running lights, brake lights, turn signals, and reverse lights on both sides.
• Verify that the lamps sit evenly with the body and that no gaps are visible.
• Check inside the cargo area and liftgate for any loose trim or rattles.
• Take a short drive at night and confirm visibility and that there are no warning lights on the dash.

---

💰 DIY vs Shop Cost

Shop Cost: $120–$200 (parts + labor)

DIY Cost: $20–$50 (parts only, both sides)

You Save: $100–$150 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
