🔧 RX350 - Rear Tail Light Bulb Replacement (Left & Right)

On your RX350, the outer rear lamp assemblies can contain replaceable bulbs (commonly the rear turn signal and/or reverse), while some tail/brake functions may be LED and not bulb-serviceable. This guide shows how to access each rear lamp, remove the bulb socket, and replace the bulbs on both sides.

Assumption: Your outer rear lamps use replaceable wedge bulbs for at least one function (typically turn signal). If you find an LED module (no removable bulb), that function isn’t serviced as a bulb.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the light switch OFF and remove the key/fob from the vehicle area.
• ⚠️ Let bulbs cool before touching; hot glass can burn you.
• ⚠️ Wear safety glasses when popping trim clips loose.
• Do not touch new bulb glass with bare fingers; skin oil can shorten bulb life.
• Battery disconnect is not required, but it’s okay to disconnect the negative terminal if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Trim removal tool (plastic) (specialty)
• Phillips screwdriver #2
• Torque wrench (inch-pound or low-range) (specialty)
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (7440 / T20 wedge, amber) - Qty: 2
• Rear reverse bulb (921 / T15 wedge) - Qty: 2
• Dielectric grease (small packet) - Qty: 1
• Rear lamp trim clips (as needed) - Qty: 2-6

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate for access and keep it fully supported.
• Lay a towel on the bumper edge to protect paint when the lamp comes free.
• A trim removal tool is a plastic pry tool that helps pop panels/clips without scratching.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the rear lamp fasteners (one side)

• Open the liftgate and move any cargo out of the way.
• Use a trim removal tool (plastic) (specialty) to gently pop off the small access cover in the rear side trim near the tail lamp.
• If your RX350 has a small cargo net hook or retainer in the way, remove it with a Phillips screwdriver #2 (only if needed for access).

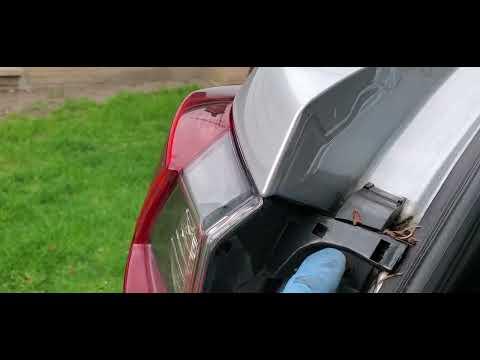

Step 2: Remove the tail lamp assembly

• Use a 10mm socket with a 1/4" drive ratchet and 6" socket extension to remove the tail lamp mounting nuts behind the access opening.
• Hold the lamp with your free hand as the last nut comes off, so it doesn’t pop outward.
• Pull the lamp straight rearward to release the locating pins (do not yank sideways).
• Tip: Wiggle gently; pins can be snug.

Step 3: Remove the bulb socket and bulb

• Find the bulb socket for the function you’re replacing (turn signal/reverse) on the back of the lamp.
• Twist the socket counterclockwise by hand to remove it.
• Remove the bulb by pulling it straight out (wedge bulbs do not unscrew).
• If the bulb base is stuck, use a nitrile gloves grip and pull straight; don’t twist hard.

Step 4: Install the new bulb

• Install the new bulb by pushing it straight into the socket until fully seated.
• Apply a tiny smear of dielectric grease to the socket seal (not on the bulb glass).
• Reinstall the socket into the lamp and twist clockwise until it locks.

Step 5: Reinstall the tail lamp assembly

• Align the locating pins with the body holes and press the lamp straight into place.
• Start all nuts by hand first to avoid cross-threading.
• Tighten the nuts using a 10mm socket and 1/4" drive ratchet.
• Final tighten with a torque wrench (inch-pound or low-range) (specialty): Torque to 5 N·m (44 in-lbs).
• Reinstall the access cover by pressing it back in until it snaps flush.

Step 6: Repeat on the other side

• Repeat Steps 1-5 for the opposite rear tail lamp.

---

✅ After Repair

• Turn the ignition ON and test: parking lights, brake lights, left/right turn signals, and reverse lights.
• If a turn signal “hyperflashes,” confirm you installed the correct bulb type and that it’s fully seated.
• Check that both tail lamps sit evenly with the body and that no trim clips are loose.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $80-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
