🔧 Shock Absorbers - Replacement

This guide covers rear shock absorber replacement on your F-150. On this truck, the front suspension uses struts, not separate shock absorbers, so the front procedure is different. If you only meant the rear shocks, follow the steps below.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Support the truck with jack stands; never work under a vehicle held up only by a jack.
• Keep the parking brake set and block the front wheels before lifting the rear.
• The rear axle will move slightly when the shocks are removed, so support it if needed.
• If a shock bolt is heavily rusted, use penetrating oil and allow time for it to soak.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• Safety glasses
• Work gloves
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 15mm socket
• 18mm socket
• 21mm socket
• Torque wrench
• Penetrating oil
• Rubber mallet

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear shock absorbers - Qty: 2
• Rear shock hardware kit - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the rear wheel lug nuts slightly before lifting, if you plan to remove the wheels.
• Spray the shock bolts with penetrating oil and let them soak for a few minutes.
• Replace rear shocks in pairs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the rear

• Use the floor jack to lift the rear of the truck by the axle or approved lift point.
• Place jack stands under the frame and lower the truck onto them.
• Keep the rear axle lightly supported with the jack if needed.

Step 2: Remove the rear wheel

• Use a 21mm socket to remove the lug nuts.
• Take off the wheel for better access to the shock absorber.

Step 3: Remove the lower shock bolt

• Use an 18mm socket and breaker bar to remove the lower shock bolt and nut.
• If the bolt is tight, hold the opposite side with a matching wrench if needed.
• Torque to factory specification during reassembly.

Step 4: Remove the upper shock bolt

• Use a 15mm socket or 18mm socket depending on the hardware on your truck.
• Remove the upper bolt and lower the shock out of the mount.
• If the shock is stuck, tap it gently with a rubber mallet.
• Torque to factory specification during reassembly.

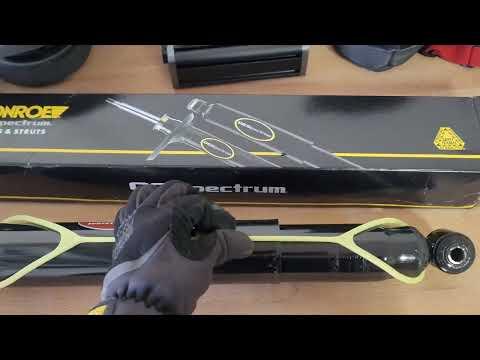

Step 5: Install the new shock

• Position the new shock in place by hand.
• Install the upper bolt first using the 15mm socket or 18mm socket.
• Install the lower bolt using the 18mm socket.
• Snug both fasteners, but do not fully tighten yet.

Step 6: Tighten and torque the fasteners

• With the suspension at normal ride height, use a torque wrench to tighten the upper and lower shock bolts.
• Torque to factory specification for both fasteners.
• Tighten at ride height for best bushing life.

Step 7: Reinstall the wheel

• Put the wheel back on and hand-tighten the lug nuts.
• Lower the truck and use a torque wrench with a 21mm socket to tighten the lug nuts in a star pattern.
• Torque to factory specification for the wheel lug nuts.

---

✅ After Repair

• Drive slowly at first and listen for clunks or rattles.
• Check that both sides sit evenly and the truck tracks straight.
• Recheck the shock bolts after a short test drive.
• If you replaced only one shock, expect uneven ride quality; replace the other side soon.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$700 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $180-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
