🔧 Tucson - Rear Door Lock Actuator Replacement

This repair replaces the rear door lock actuator, which is the small electric motor and latch assembly that locks and unlocks the rear door. On your Tucson, the actuator is built into the rear door latch assembly, so the inner door trim panel and moisture barrier must come off to access it.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ Work slowly around the door trim clips so the panel does not crack.
• ⚠️ The moisture barrier is a plastic sheet that keeps water out of the cabin; do not tear it.
• ⚠️ Support the window glass if you loosen the rear glass run or access carrier area.
• ⚠️ Keep fingers clear of the latch while testing the lock actuator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• Phillips #2 screwdriver
• Trim panel removal tool set
• Plastic pick tool
• Torx T30 socket
• Small flat-blade screwdriver
• Needle-nose pliers
• Torque wrench inch-pound
• Painter's tape 1-inch
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-8
• Butyl sealant tape - Qty: 1 roll

---

📋 Before You Begin

• Park your Tucson on level ground and set the parking brake.
• Lower the rear door window fully before starting; this gives more room to handle the trim panel.
• Open the rear door you are repairing and leave it open during the job.
• Use a 10mm socket to disconnect the negative battery cable. Wait 3 minutes before unplugging door connectors.
• Place removed screws in labeled groups so they go back into the same locations.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Rear Door Trim Screw Covers

• Use a plastic pick tool to gently lift the small cover inside the interior door pull handle.
• Use the plastic pick tool to remove the screw cover in the armrest pull pocket.
• A trim panel removal tool is a flat plastic pry tool that helps pop clips loose without scratching the door.
• Work slowly to avoid marks.

Step 2: Remove the Door Trim Panel Screws

• Use a Phillips #2 screwdriver to remove the exposed screw behind the interior door handle.
• Use a Phillips #2 screwdriver to remove the exposed screw in the armrest pull pocket.
• Set the screws aside in a safe spot.
• During reassembly, tighten these trim screws gently: Torque to 2 Nm (18 in-lbs).

Step 3: Release the Door Trim Clips

• Use a trim panel removal tool set at the lower rear edge of the door panel.
• Slide the tool between the trim panel and metal door shell, then pry straight outward to pop the first clip loose.
• Continue around the bottom and sides of the panel until all clips release.
• Lift the panel upward off the window ledge using both hands.
• Do not yank the panel.

Step 4: Disconnect the Door Panel Wiring and Cables

• Support the trim panel with one hand.
• Use a small flat-blade screwdriver to press the lock tab on the power window switch connector, then unplug it.
• Use needle-nose pliers to unclip the interior door handle cable from the handle lever.
• The cable end is a small metal ball; rotate it out of the handle lever after releasing the plastic cable holder.
• Place the trim panel somewhere clean and safe.

Step 5: Peel Back the Moisture Barrier

• Use a plastic pick tool to start peeling the plastic moisture barrier away from the butyl sealant.
• Peel only the rear half of the barrier back far enough to reach the latch area.
• Use painter's tape 1-inch to hold the barrier out of your way.
• Butyl sealant is the sticky black ribbon that seals the plastic sheet to the door.
• Keep the sealant clean.

Step 6: Disconnect the Exterior Handle/Latch Rods

• Look inside the rear edge of the door for the latch rods connected to the latch assembly.
• Use a small flat-blade screwdriver to flip open the plastic retaining clip on each rod.
• Use needle-nose pliers to carefully lift each rod out of its latch lever.
• Take a quick photo before removing the rods so you can match their positions later.

Step 7: Unplug the Door Lock Actuator Connector

• Use a small flat-blade screwdriver to press the connector lock tab on the actuator/latch wiring plug.
• Pull the connector straight out by the connector body, not by the wires.
• Check the connector for corrosion, loose pins, or water damage.

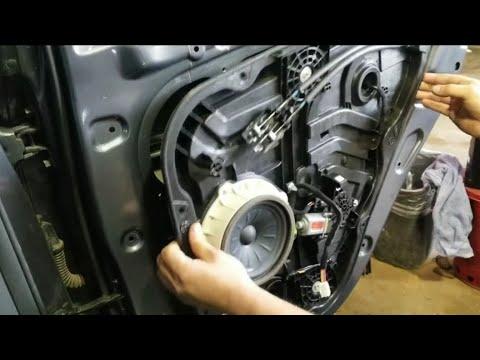

Step 8: Remove the Rear Door Latch Assembly

• On the rear edge of the door, locate the three latch mounting screws.
• Use a Torx T30 socket and ratchet handle to remove the three latch screws.
• Support the latch with your other hand as the last screw comes out.
• Guide the actuator/latch assembly out through the door access opening.
• For reassembly, tighten the latch screws evenly: Torque to 8 Nm (71 in-lbs).

Step 9: Compare the Old and New Actuator/Latch

• Set both latch assemblies side by side on a clean surface.
• Confirm the electrical connector, latch shape, rod levers, and mounting holes match.
• If any rubber isolators or clips must transfer, use a small flat-blade screwdriver to move them carefully.

Step 10: Install the New Actuator/Latch Assembly

• Guide the new actuator/latch assembly into the door through the access opening.
• Start all three latch screws by hand to prevent cross-threading.
• Use a Torx T30 socket and torque wrench inch-pound to tighten the screws: Torque to 8 Nm (71 in-lbs).
• Reconnect the actuator electrical connector until it clicks.

Step 11: Reconnect the Rods and Cables

• Use needle-nose pliers to place each latch rod back into its correct lever.
• Use a small flat-blade screwdriver to snap each plastic retaining clip closed over the rod.
• Move the inside and outside door handles by hand to confirm the rods move smoothly.
• Do not close the door yet.

Step 12: Test the Latch Before Reinstalling the Panel

• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Use the key fob or door switch to lock and unlock the rear door.
• Use a small flat-blade screwdriver to rotate the latch closed while the door remains open.
• Pull the inside handle and outside handle to confirm the latch releases.
• If the latch does not release, recheck the rod positions before closing the door.
• Use a 10mm socket to disconnect the negative battery cable again before final panel installation.

Step 13: Reseal the Moisture Barrier

• Press the original moisture barrier back into the butyl sealant by hand.
• If the sealant is damaged or no longer sticky, apply butyl sealant tape around the opening.
• Use your fingers with nitrile gloves to press the barrier firmly into the seal.
• Make sure no wiring is pinched behind the barrier.

Step 14: Reinstall the Door Trim Panel

• Reconnect the interior handle cable using needle-nose pliers.
• Reconnect the power window switch connector until it clicks.
• Hang the upper edge of the trim panel on the window ledge.
• Line up the trim clips with the holes in the door.
• Press around the panel by hand until each clip snaps into place.
• If a clip is broken, replace it with a rear door trim panel clip.

Step 15: Reinstall Screws and Covers

• Use a Phillips #2 screwdriver to reinstall the door handle screw and armrest screw.
• Tighten both screws lightly: Torque to 2 Nm (18 in-lbs).
• Snap the screw covers back in by hand.
• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the battery terminal nut: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Lock and unlock the rear door at least 10 times using the key fob and interior lock switch.
• ✅ Test the inside handle, outside handle, child lock, and manual lock operation.
• ✅ Confirm the rear window switch works after reconnecting the door panel.
• ✅ Pour a small amount of water over the outside glass area and check that no water enters past the moisture barrier.
• ✅ Make sure the door closes smoothly without extra force.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$520 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $190-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
