🔧 Grand Cherokee - Rear Door Lock Actuator Replacement

This repair replaces the rear door lock actuator, which is the small electric motor/latch assembly that locks and unlocks the door when you use the key fob or door switch. On your Grand Cherokee, the rear door actuator is built into the rear door latch assembly, so the latch/actuator unit is replaced as one piece.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors to avoid accidental short circuits.
• ⚠️ Work with the window fully raised so the glass does not interfere with the latch area.
• ⚠️ Do not force plastic trim clips; cold or brittle clips can break easily.
• ⚠️ Keep your fingers clear of the latch while testing the lock function.
• ⚠️ Support the door panel while unplugging connectors so wiring is not stretched.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• Socket extension 6-inch
• Torx T20 screwdriver
• Torx T30 socket
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool set
• Needle-nose pliers
• Panel clip removal pliers
• Torque wrench inch-pound
• Painter’s tape 1-inch
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch and lock actuator assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-8
• Butyl tape or door vapor barrier sealant - Qty: 1 roll

---

📋 Before You Begin

• Park your Grand Cherokee on level ground and set the parking brake.
• Lower nothing; keep the rear door window fully raised.
• Open the rear door you are repairing and make sure you have good lighting.
• Use the door switch to unlock the vehicle before disconnecting the battery.
• Disconnect the negative battery cable using a 10mm socket. A battery terminal is the clamp connected to the battery post.
• Wait at least 2 minutes before unplugging door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the Door Trim

• Use painter’s tape 1-inch around the edges of the interior door handle trim and switch trim.
• Put on safety glasses and mechanic gloves.
• Use a work light so you can see the hidden fasteners clearly.
• Go slow to prevent scratches.

Step 2: Remove the Rear Door Switch Panel

• Use a plastic trim removal tool set to carefully pry up the rear window switch panel.
• Lift the panel just enough to access the connector underneath.
• Use a pick tool set to gently release the connector lock tab, then unplug the switch connector.
• Set the switch panel aside in a safe place.

Step 3: Remove Hidden Door Panel Screws

• Use a Torx T20 screwdriver to remove the screw inside the door pull area if equipped.
• Use a Phillips #2 screwdriver or Torx T20 screwdriver to remove any exposed screw behind the interior handle trim, depending on the fastener fitted.
• Use the plastic trim removal tool set to remove any small screw covers without damaging the trim.
• Keep all screws organized so they go back in the same locations.

Step 4: Release the Rear Door Trim Panel

• Start at the lower rear corner of the door panel.
• Use panel clip removal pliers or the plastic trim removal tool set to pop the trim clips loose one at a time.
• A trim clip is a small plastic push fastener that snaps the panel to the metal door shell.
• Once all clips are loose, lift the panel straight upward to unhook it from the window ledge.
• Do not pull the panel far away yet; wiring and the handle cable may still be attached.

Step 5: Disconnect the Door Panel Connectors and Cable

• Support the door panel with one hand.
• Use a pick tool set to release any electrical connector lock tabs, then unplug the connectors.
• Use needle-nose pliers to help rotate and unclip the interior handle cable from the door handle lever.
• The handle cable is a small cable that transfers your pull from the inside handle to the latch.
• Place the door panel on a clean blanket or soft surface.

Step 6: Peel Back the Door Vapor Barrier

• Use the plastic trim removal tool set to carefully separate the vapor barrier from the door.
• The vapor barrier is the plastic sheet that keeps water away from the interior trim.
• Only peel back the rear section enough to access the latch area.
• If the seal stretches or tears, plan to reseal it with butyl tape or door vapor barrier sealant.
• Do not leave gaps in this seal.

Step 7: Disconnect the Latch Electrical Connector

• Look inside the rear edge of the door for the latch/actuator assembly.
• Use a work light to find the electrical connector on the latch.
• Use a pick tool set to slide or press the connector lock tab.
• Unplug the connector by pulling on the connector body, not the wires.

Step 8: Disconnect the Lock and Handle Linkages

• Use needle-nose pliers to release the plastic retaining clips from the latch rods or cables.
• Move each rod or cable out of the latch lever after its retainer is open.
• Take a quick photo with your phone before removal if you need a reference.
• Photos save time during reassembly.

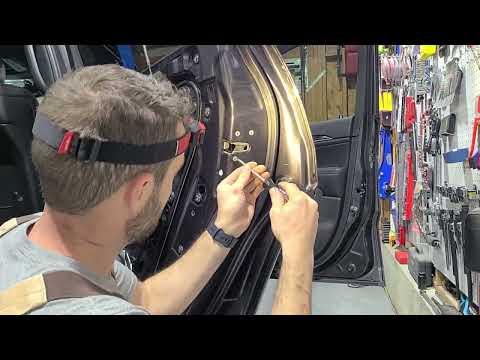

Step 9: Remove the Rear Door Latch Screws

• At the rear edge of the door, locate the three latch mounting screws around the door latch opening.
• Use a Torx T30 socket, socket extension 6-inch, and ratchet handle to remove the three screws.
• Hold the latch with your other hand through the access opening so it does not drop inside the door.
• Remove the latch/actuator assembly from the door through the access opening.

Step 10: Compare the New Latch/Actuator

• Place the old and new rear door latch and lock actuator assembly side by side.
• Make sure the connector shape, latch position, cable/rod attachment points, and mounting holes match.
• Transfer any foam seals, clips, or small brackets from the old unit using a pick tool set if required.

Step 11: Install the New Rear Door Latch/Actuator

• Guide the new latch/actuator into the door through the access opening.
• Align it with the rear edge of the door.
• Start the three mounting screws by hand first to avoid cross-threading.
• Use a Torx T30 socket, socket extension 6-inch, and torque wrench inch-pound to tighten the latch screws.
• Torque to 10 Nm (89 in-lbs).

Step 12: Reconnect Linkages and Electrical Connector

• Use needle-nose pliers to reconnect the lock and handle rods or cables to the same latch levers as before.
• Snap each plastic retainer closed fully.
• Plug in the latch electrical connector until it clicks.
• Use the work light to verify no wires are pinched.

Step 13: Temporarily Test the Latch Before Reassembly

• Keep your fingers away from the latch jaws.
• Reconnect the negative battery cable using a 10mm socket.
• Use the key fob or lock switch connector to test lock and unlock operation.
• Use a screwdriver handle from the Torx T20 screwdriver to gently close the latch pawl, then pull the outside handle to confirm it releases.
• Disconnect the negative battery cable again using a 10mm socket before continuing.

Step 14: Reseal the Vapor Barrier

• Press the vapor barrier back onto the original adhesive bead.
• If the seal is weak, apply butyl tape or door vapor barrier sealant around the loose areas.
• Use the plastic trim removal tool set to press the barrier flat without tearing it.
• This seal prevents water leaks into the cabin.

Step 15: Reinstall the Door Panel

• Reconnect the interior handle cable using needle-nose pliers.
• Reconnect all door panel electrical connectors by hand until they click.
• Hang the top of the door panel over the window ledge.
• Align the trim clips with their holes.
• Push around the panel edges by hand until all clips snap in.
• Replace broken rear door trim panel clips as needed.

Step 16: Reinstall Screws and Switch Panel

• Use a Torx T20 screwdriver or Phillips #2 screwdriver to reinstall the door panel screws.
• Torque small trim screws snug only, about 2 Nm (18 in-lbs).
• Plug the rear window switch connector back in by hand.
• Snap the switch panel back into place using light hand pressure.
• Remove the painter’s tape 1-inch.

Step 17: Reconnect Battery and Final Tightening

• Reconnect the negative battery cable using a 10mm socket.
• Torque to 5 Nm (44 in-lbs).
• Make sure the cable is tight and cannot rotate on the battery post.

---

✅ After Repair

• ✅ Test lock and unlock using the key fob, driver door switch, and rear door lock switch.
• ✅ Open the repaired rear door from the inside and outside several times.
• ✅ Close the door gently first, then normally, to confirm proper latch engagement.
• ✅ Test the rear window switch and speaker operation if equipped.
• ✅ Check that the door ajar warning turns off when the door is closed.
• ✅ If the auto-up window feature loses calibration, hold the window switch up for 2 seconds after fully closed, then down for 2 seconds after fully open.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-2.0 hours.

---
