🔧 Corolla - Rear Brakes & Rotor Replacement

This job replaces your worn rear friction parts so the car stops smoothly and quietly. On your Corolla, the rear setup can be either disc brakes (pads + rotors) or drum brakes (shoes + drums), depending on equipment.

Assumption: I’m giving both rear brake procedures below—follow the one that matches what you see when the wheel is off.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support the car with jack stands—never rely on a floor jack alone.
• 🧤 Avoid breathing brake dust; wear a dust mask and use brake cleaner to rinse parts, not compressed air.
• 🔥 Brakes can be hot; let everything cool before touching.
• 🧱 Chock the front wheels; you’ll be releasing the parking brake during service.
• ⚠️ Do not press the brake pedal with a caliper removed (it can push the piston out and leak fluid).
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 14mm socket
• 17mm socket
• Needle-nose pliers
• Flathead screwdriver
• Wire brush
• Rubber mallet
• C-clamp brake piston compressor
• Brake caliper hanger hook
• Brake cleaner spray
• Catch pan
• Shop rags
• Nitrile gloves
• Safety glasses
• Dust mask
• Drum brake spring pliers (specialty)
• Brake hold-down spring tool (specialty)
• Brake adjusting spoon (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Qty: 2
• Rear disc brake hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake anti-seize compound - Qty: 1
• Rear brake shoes - Qty: 1 set (axle set)
• Rear brake drums - Qty: 2
• Rear drum brake hardware kit - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake before lifting.
• Break loose the rear wheel lug nuts using a 21mm socket and breaker bar before the tires leave the ground.
• Raise the rear with a floor jack and support both sides with jack stands.
• Once the rear is safely on stands, release the parking brake so the rear brakes can come off.
• Tip: Do one side at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear wheels

• Use a 21mm socket and 3/8" drive ratchet (or breaker bar) to remove the lug nuts.
• Remove both rear wheels and set them under the car as an extra safety backup.

Step 2: Identify your rear brake type (disc vs drum)

• If you see a caliper (a “C-shaped” clamp over a rotor), you have rear disc brakes.
• If you see a closed “can” style housing, you have rear drum brakes.

Step 3A (Disc): Remove the caliper

• Turn the steering wheel is not needed—rear access is straight on.
• Use a 14mm socket and 3/8" drive ratchet to remove the caliper slide pin bolts.
• Lift the caliper off the pads and hang it with a brake caliper hanger hook (never let it hang by the hose).

Step 4A (Disc): Remove pads and caliper bracket

• Pull the brake pads out by hand.
• Use a 17mm socket and breaker bar to remove the caliper bracket bolts.
• Remove the bracket and set it aside.

Step 5A (Disc): Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck, spray the hub area with brake cleaner spray, then tap the rotor hat with a rubber mallet until it frees up.
• Clean rust off the hub face using a wire brush so the new rotor sits flat.

Step 6A (Disc): Install new rotor

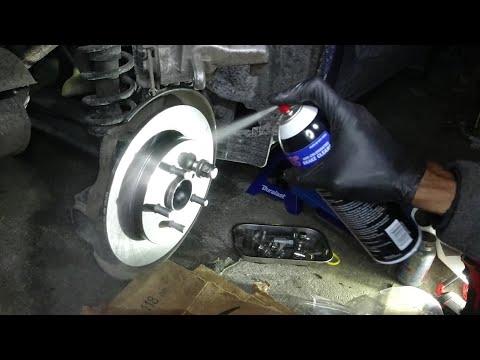

• Spray both sides of the new rotor with brake cleaner spray and wipe with shop rags (removes protective oil).
• Install the rotor onto the hub.
• Apply a very thin film of brake anti-seize compound to the hub center (not on rotor braking surfaces).

Step 7A (Disc): Service the bracket and slide pins

• Remove the old pad clips (hardware) from the bracket by hand or with a flathead screwdriver.
• Clean the bracket pad lands with a wire brush.
• Install the new clips from the rear disc brake hardware kit.
• Pull the slide pins out (they are the smooth bolts the caliper “slides” on).
• Wipe them clean with shop rags, then apply brake caliper slide pin grease and reinstall.
• Tip: Slide pins must move smoothly by hand.

Step 8A (Disc): Reinstall bracket and torque bolts

• Reinstall the caliper bracket using a 17mm socket and 3/8" drive torque wrench.
• Torque to 79 Nm (58 ft-lbs).

Step 9A (Disc): Compress the caliper piston

• Remove the brake fluid reservoir cap under the hood (this helps fluid move back).
• Use a C-clamp brake piston compressor to slowly push the caliper piston back in.
• Watch the reservoir level; if it’s near full, remove some fluid using a catch pan and shop rags to prevent overflow.
• Tip: Go slow to avoid damaging seals.

Step 10A (Disc): Install new pads and reinstall caliper

• Install the new pads into the bracket by hand.
• Set the caliper back over the pads.
• Install the slide pin bolts using a 14mm socket and 3/8" drive torque wrench.
• Torque to 25 Nm (18 ft-lbs).

Step 3B (Drum): Remove the brake drum

• Make sure the parking brake is fully released.
• Pull the drum straight off by hand.
• If stuck, tap around the drum face with a rubber mallet.
• If still stuck, use a flathead screwdriver to access the adjuster through the backing plate slot and back off the adjuster with a brake adjusting spoon (specialty) (this tool is a small curved lever used to turn the star wheel adjuster).

Step 4B (Drum): Take a reference and remove shoe hardware

• Take a quick photo of the springs and lever layout (helps you reassemble).
• Use drum brake spring pliers (specialty) to remove the return springs.
• Use a brake hold-down spring tool (specialty) to remove the hold-down pins and springs.
• Remove the shoes and the adjuster mechanism carefully.

Step 5B (Drum): Clean and prep

• Spray the backing plate and hardware area with brake cleaner spray and catch runoff in a catch pan.
• Lightly brush rust using a wire brush.
• Apply a tiny amount of brake caliper slide pin grease to the shoe contact pads on the backing plate (the raised spots where shoes rub).

Step 6B (Drum): Install new shoes and hardware

• Install the new shoes in the same orientation as removed.
• Install new hold-down hardware from the rear drum brake hardware kit using the brake hold-down spring tool (specialty).
• Reinstall the adjuster and return springs using drum brake spring pliers (specialty).
• Make sure the adjuster star wheel turns freely.

Step 7B (Drum): Install the new drum and set initial adjustment

• Clean the inside of the new drum with brake cleaner spray and shop rags.
• Slide the drum on. If it won’t go, back off the adjuster with the brake adjusting spoon (specialty).
• Adjust the star wheel until the drum has slight drag when you spin it by hand (not locked).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack (rated 3-ton minimum).
• Use a 21mm socket and 1/2" drive torque wrench to tighten lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10-15 times until it feels firm (this seats the pistons/pads).
• Check the brake fluid level and top off with DOT 3 if needed.
• For drum brakes, apply/release the parking brake several times to help self-adjust.
• Do a cautious test drive: low-speed stops first, then normal stops. Listen for grinding or pulling.
• Pad bedding (disc brakes): do 6-8 moderate stops from ~30 mph to ~5 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $230-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
