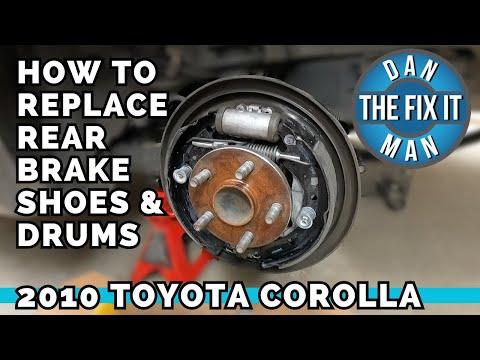

🔧 Rear Brake Shoes - Replacement

Your Corolla L does not use rear brake pads. It uses rear drum brake shoes, so the rear brake service is a shoe replacement instead of a pad swap. The job includes removing the drum, replacing the shoes and hardware, then adjusting the brakes so the drum spins with a light drag.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the front wheels.
• Use jack stands. Never work under the car with only a jack.
• Do not inhale brake dust. Use brake cleaner instead of compressed air.
• Do not press the brake pedal with the drum removed.
• Release the parking brake fully before removing the drum.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• 21mm socket
• Ratchet
• Torque wrench
• Flat-head screwdriver
• Brake spring tool (specialty)
• Needle-nose pliers
• Rubber mallet
• Brake cleaner
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake shoe set - Qty: 1
• Rear brake hardware kit - Qty: 1
• Brake cleaner - Qty: 1
• Brake grease - Qty: 1

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake, then chock the front wheels.
• Loosen the rear lug nuts slightly before lifting.
• Raise the rear and support it securely with jack stands.
• Release the parking brake fully before removing the drums.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear wheel

• Use the 21mm socket and ratchet to remove the lug nuts.
• Remove the wheel and set it aside.

Step 2: Remove the brake drum

• Use a flat-head screwdriver to back off the adjuster through the access slot if the drum is tight.
• If needed, tap the drum gently with a rubber mallet.
• Remove the drum and inspect it for grooves or heavy wear.

Step 3: Photograph the brake layout

• Take a clear photo of the spring and shoe arrangement before removing anything.
• This saves time during reassembly.

Step 4: Remove the old shoes and hardware

• Use the brake spring tool and needle-nose pliers to remove the return springs and hold-down hardware.
• Remove the adjuster assembly and lift the shoes off the backing plate.
• Disconnect the parking brake lever from the trailing shoe if needed.

Step 5: Clean the backing plate

• Use brake cleaner to clean the backing plate and contact points.
• Apply a thin layer of brake grease to the shoe contact pads and adjuster threads.
• Do not put grease on the shoe lining or drum surface.

Step 6: Install the new shoes

• Install the new shoes in the same orientation as the originals.
• Reconnect the parking brake lever if it was removed.
• Install the new springs and hardware from the kit.
• Use the brake spring tool and needle-nose pliers to seat everything fully.

Step 7: Install and set the adjuster

• Install the adjuster between the shoes.
• Set it so the drum will slide on with slight drag.
• Light drag is correct.

Step 8: Reinstall the drum and wheel

• Slide the drum over the shoes.
• If the drum will not fit, back off the adjuster a little with the flat-head screwdriver.
• Install the wheel and hand-tighten the lug nuts.
• Lower the vehicle and torque the lug nuts to 103 Nm (76 ft-lbs) using the torque wrench and 21mm socket.

Step 9: Final adjustment and check

• Pump the brake pedal several times.
• Apply and release the parking brake a few times.
• Recheck drum drag and adjust if needed.

---

✅ After Repair

• Test brake pedal feel before driving.
• Make sure the parking brake holds the car.
• Drive slowly at first and listen for scraping.
• If the rear wheels feel hot, recheck the adjuster.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $160-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
