🔧 Outlander Sport - Rear Brake Pads & Rotor Replacement

You’ll remove the rear wheels, unbolt the caliper and bracket, replace the rotor, then install new pads and reassemble with correct torque. This restores braking power and prevents vibration/noise caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2.0-3.5 hours

Assumption: your Outlander Sport has rear disc brakes with a normal “push-in” caliper piston.

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and use jack stands (never rely on the jack).
• 🛑 Keep the parking brake released while servicing rear brakes (so the rotor can come off).
• 🛑 Wear safety glasses; brake dust and rust fall straight down.
• 🛑 Do not press the brake pedal while the caliper is off the rotor.
• 🛑 Brake cleaner is flammable—use it in a ventilated area.
• 🛑 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (1/2" drive, 20-200 Nm range)
• 14mm socket
• 17mm socket
• Ratchet (3/8" drive)
• Torque wrench (3/8" drive, 5-60 Nm range)
• Flathead screwdriver
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Wire brush
• Rubber mallet
• Bungee cord
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Qty: 2
• Rear brake pad hardware kit (clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1

---

📋 Before You Begin

• Chock the front wheels using wheel chocks and place the transmission in 1st gear.
• Release the parking brake fully (rear rotors won’t come off if it’s applied).
• Crack the rear lug nuts loose with a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap sitting loosely (helps fluid return when compressing pistons).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Lift the rear using a floor jack (rated 3-ton minimum) at the approved rear jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) placed under solid rear support points.
• Remove the rear wheels with a 19mm socket.

Step 2: Remove the caliper (the clamp that squeezes the pads)

• Turn the steering wheel straight and look behind the rear caliper.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet (3/8" drive).
• Lift the caliper off the bracket and support it with a brake caliper hanger hook or bungee cord.
• Never let the caliper hang by the hose.

Step 3: Remove the old pads and hardware clips

• Pull the pads out by hand; use a flathead screwdriver gently if stuck.
• Remove the stainless pad clips from the bracket using a flathead screwdriver.
• Clean the pad “shelves” on the bracket with a wire brush and brake cleaner spray.

Step 4: Remove the caliper bracket

• Remove the bracket bolts using a 17mm socket and breaker bar (1/2" drive).
• Set the bracket aside.
• When reinstalling later: Torque to 80-95 Nm (59-70 ft-lbs).

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s rust-stuck, tap the rotor “hat” area with a rubber mallet while pulling.
• If it still won’t come off, double-check the parking brake is fully released.

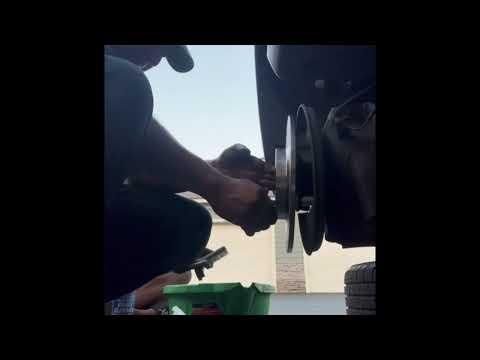

Step 6: Prep the hub and install the new rotor

• Clean rust from the hub face with a wire brush and wipe with shop towels.
• Spray the new rotor friction surfaces with brake cleaner spray and wipe dry (removes packing oil).
• Install the new rotor onto the hub.
• To keep it from wobbling, temporarily hold it with 1-2 lug nuts threaded by hand (use the 19mm socket to snug lightly).

Step 7: Service the slide pins (the greased guide rods)

• Pull the slide pins out of the bracket by hand.
• Wipe them clean with shop towels.
• Apply a thin coat of brake caliper grease (silicone) and reinstall.
• Grease only the smooth pin, not the threads.

Step 8: Reinstall the caliper bracket and new hardware clips

• Reinstall the bracket using a 17mm socket and ratchet or breaker bar.
• Torque to 80-95 Nm (59-70 ft-lbs) using a torque wrench (1/2" drive).
• Install the new pad clips from the hardware kit by pressing them into the bracket.

Step 9: Compress the caliper piston

• Place an old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly press the piston back into the caliper.
• Watch the brake fluid reservoir level as you compress (fluid may rise).
• Go slow to avoid damaging seals.

Step 10: Install the new pads

• Apply a very thin layer of brake caliper grease (silicone) where the pad ears touch the clips (metal-to-metal contact points).
• Install the inner and outer pads into the bracket by hand.

Step 11: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the slide pin bolts using a 14mm socket and ratchet (3/8" drive).
• Torque to 25-35 Nm (18-26 ft-lbs) using a torque wrench (3/8" drive).

Step 12: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the vehicle off the stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench (1/2" drive).
• Torque to 98-108 Nm (72-80 ft-lbs).

---

✅ After Repair

• With the engine off, pump the brake pedal 10-15 times until it feels firm (this seats the pads).
• Check brake fluid level and top up only if needed.
• Test at low speed first. Confirm no pulling, grinding, or warning lights.
• Pad/rotor bed-in: make 8-10 smooth stops from ~50 km/h to ~15 km/h, light-to-medium pressure, with 30-60 seconds between stops.
• Avoid hard stops for the first 200 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹4,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
