🔧 X1 - Rear Brake Pads & Rotor Replacement

On your X1, rear brake pads and rotors wear together. Replacing them as a set restores braking power, prevents noise/vibration, and protects the calipers.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: your X1 has an Electronic Parking Brake (EPB) on the rear calipers.

---

⚠️ Safety & Precautions

• ⚠️ Support the X1 on jack stands; never rely on a jack alone.
• ⚠️ Brakes may contain dust—use brake cleaner, don’t blow with air.
• ⚠️ If equipped with EPB, retract it with a scan tool before pushing pistons in.
• ⚠️ Do not press the brake pedal with a caliper removed.
• ⚠️ Keep brake fluid off paint; it damages finishes fast.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm wheel-bolt socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-200 Nm range)
• 3/8" drive ratchet
• Socket set (10mm-18mm)
• Hex bit socket set (6mm-8mm)
• Torx bit socket set (T25-T50)
• Flathead screwdriver
• Needle-nose pliers
• Brake caliper piston compressor tool (specialty)
• Brake caliper hanger hook
• Wire brush
• Rubber mallet
• Scan tool with BMW EPB service mode (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotor - Qty: 2
• Rear brake pad wear sensor - Qty: 1
• Brake cleaner - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Medium-strength threadlocker (blue) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the transmission to P, and place wheel chocks at the front wheels.
• Turn ignition on (engine off) and release the parking brake.
• Connect your scan tool and put the rear EPB into service mode (this retracts the EPB motor so the piston can be pushed back).
• Open the hood and locate the brake fluid reservoir; be ready to remove a little fluid if it rises near “MAX” after piston compression.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen rear wheel bolts

• Use a 17mm wheel-bolt socket and breaker bar to crack the rear wheel bolts loose 1/4 turn while the X1 is on the ground.

Step 2: Lift and support the rear

• Use a floor jack to lift the rear at the correct jacking point.
• Place jack stands under the rear support points and lower the X1 onto them.
• Remove the wheel bolts with the 17mm socket and take the wheels off.

Step 3: Retract the EPB (required if equipped)

• Use your scan tool with BMW EPB service mode (specialty) and command: “Rear EPB service / pad replacement mode”.
• If EPB isn’t retracted, you can damage the caliper.

Step 4: Remove the pad wear sensor (one side)

• Locate the rear pad wear sensor wire at the caliper.
• Use a flathead screwdriver to gently pop the sensor out of the pad and free the wire from clips.
• Open the connector housing and unplug it using needle-nose pliers if needed.

Step 5: Remove the rear caliper

• On the back of the caliper, remove the caliper guide bolts using the correct hex bit socket (commonly 7mm; verify fit before turning).
• Lift the caliper off the bracket.
• Hang the caliper using a brake caliper hanger hook so it doesn’t hang by the brake hose.

Step 6: Remove the old pads and hardware

• Slide the old pads out by hand; use a flathead screwdriver gently if stuck.
• Remove any stainless pad clips from the bracket (if included) and note how they sit.

Step 7: Remove the caliper carrier (bracket)

• Use a ratchet with the correct socket to remove the carrier bolts (these are tight).
• Set the carrier aside for cleaning.
• When reinstalling, apply medium-strength threadlocker (blue) to clean bolt threads.
• Torque to 110 Nm (81 ft-lbs) for the rear carrier bolts.

Step 8: Remove the rotor

• Remove the rotor set screw using the correct Torx bit socket (commonly T30).
• If the rotor is stuck, tap around the hat with a rubber mallet and pull it off.
• Torque to 16 Nm (12 ft-lbs) for the rotor set screw during reassembly.

Step 9: Clean and prep the hub

• Use a wire brush to clean rust from the hub face (where the rotor sits).
• Apply a very thin film of anti-seize compound to the hub face only.
• Spray the new rotors with brake cleaner and wipe dry (removes shipping oil).

Step 10: Install the new rotor

• Slide the new rotor onto the hub.
• Install the set screw using a Torx bit socket.
• Torque to 16 Nm (12 ft-lbs).

Step 11: Compress the rear caliper piston

• Use a brake caliper piston compressor tool (specialty) to slowly push the piston straight back in.
• A piston compressor is a tool that pushes the piston in evenly so it doesn’t bind or damage seals.
• Watch the brake fluid reservoir as you compress; remove a little fluid if it nears overflow.

Step 12: Service the bracket sliding points

• Clean the pad “lands” (where pad ears slide) on the bracket using a wire brush.
• Apply a light coat of brake caliper grease to the pad sliding points only.
• Keep grease off pads and rotor surfaces.

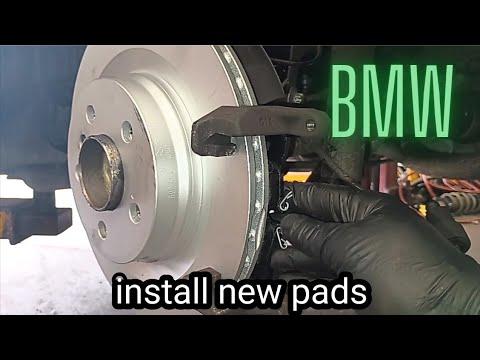

Step 13: Install new pads and wear sensor

• Install any new pad clips/hardware (if included) by hand.
• Slide the new inner and outer pads into place.
• Press the new wear sensor into the correct new pad and route the wire in the factory clips.

Step 14: Reinstall caliper

• Place the caliper over the new pads and align the guide pin holes.
• Install the guide bolts using the correct hex bit socket.
• Torque to 30 Nm (22 ft-lbs) for the rear caliper guide bolts.

Step 15: Reinstall wheels

• Reinstall the wheels and hand-thread the wheel bolts.
• Lower the X1 from the jack stands using the floor jack.
• Use a torque wrench with a 17mm socket and tighten wheel bolts in a star pattern.
• Torque to 140 Nm (103 ft-lbs) for the wheel bolts.

Step 16: Exit EPB service mode

• Use the scan tool with BMW EPB service mode (specialty) to close/initialize the EPB.

Step 17: Reset the rear brake service reminder (CBS)

• With ignition on (engine off), use iDrive: My Vehicle > Vehicle status > Service requirements > Rear brake pads > Reset.
• If reset is blocked, re-check the wear sensor connection and EPB initialization.

---

✅ After Repair

• Press the brake pedal 10-15 times until it feels firm (this seats the pads).
• Check brake fluid level and adjust to the correct mark.
• Test EPB operation and confirm no brake warning lights remain.
• Road test at low speed first; verify normal braking and no grinding noises.
• Brake bedding: make 6-10 smooth stops from ~40 to 10 mph, with cool-down driving between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
