🔧 Mazda3 - Rear Brake Pad Replacement

Replacing the rear brake pads restores safe stopping and prevents metal-to-metal damage to your rotors (the brake “discs”). On your Mazda3, the rear caliper piston may need a specific retraction method depending on the parking brake type.

Difficulty Level: Intermediate | Estimated Time: 1.0–2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the front wheels before lifting the rear.
• 🛑 Never get under a car supported only by a jack—use jack stands (rated 2-ton minimum).
• 🛑 Brakes can be hot; let everything cool before touching calipers/rotors.
• 🛑 Do not press the brake pedal with a caliper removed.
• 🛑 If your Mazda3 has an electronic parking brake (EPB), you must retract it into service/maintenance mode before compressing the piston.
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 ft-lbs range)
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Flat-blade screwdriver
• Brake caliper piston rewind tool (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

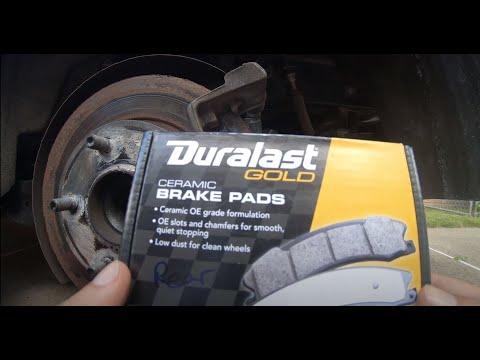

• Rear brake pad set - Qty: 1
• Rear brake hardware kit (abutment clips) - Qty: 1
• High-temp silicone brake grease - Qty: 1
• Brake cleaner - Qty: 1
• DOT 3 brake fluid - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, put the shifter in P, and release the parking brake (you’ll re-apply it later).
• Chock both front wheels using wheel chocks.
• Open the hood and locate the brake fluid reservoir. Do not remove the cap yet, but be ready to monitor the fluid level (it can rise when pistons are pushed back).
• If your Mazda3 has a parking brake button (EPB), plan to use a scan tool function for EPB Maintenance/Service Mode before you retract the piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm your parking brake type

• Look between the front seats: if you have a button/switch, that’s EPB. If you have a hand lever, that’s a mechanical cable system.
• If EPB: use a scan tool to command EPB Maintenance/Service Mode before touching the caliper piston.
• Tell me “button” or “lever” if unsure.

Step 2: Loosen rear wheel lug nuts

• Use a 21mm socket and 1/2" breaker bar to crack loose the rear lug nuts about 1/2 turn (do not remove yet).

Step 3: Lift and support the rear

• Use a floor jack to lift the rear at the proper rear jacking point.
• Set the car onto jack stands placed at the rear pinch welds/support points.
• Give the car a firm shake to confirm it’s stable.

Step 4: Remove the rear wheels

• Use a 21mm socket and 3/8" ratchet (or breaker bar) to remove lug nuts.
• Remove both rear wheels so you can do pads on both sides.

Step 5: Remove the caliper (outer section)

• Turn the steering wheel is not applicable here; instead, position yourself for access behind the rear wheel area.
• Use a 14mm socket with a 3/8" ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket and support it with a bungee cord. Do not let it hang by the rubber brake hose.

Step 6: Remove old pads and hardware

• Slide the brake pads out of the bracket by hand. If stuck, use a flat-blade screwdriver gently.
• Remove the stainless abutment clips (hardware) from the bracket.
• Use brake cleaner spray and a wire brush to clean the pad contact areas on the bracket where the clips sit.

Step 7: Retract the caliper piston (most important step)

• Check the brake fluid reservoir level under the hood so it doesn’t overflow when the piston retracts.
• If your Mazda3 has a hand lever parking brake: use a brake caliper piston rewind tool (specialty) to rotate-and-press the piston back in (the rear piston is typically “screw-in” style).
• If your Mazda3 has EPB (button): first use a scan tool to command EPB Maintenance/Service Mode, then use the brake caliper piston rewind tool (specialty) to retract as required by the caliper design.
• Go slow—keep the piston boot from twisting.

Step 8: Install new hardware clips and grease correctly

• Install the new abutment clips from the rear brake hardware kit into the bracket.
• Apply a thin film of high-temp silicone brake grease to the clip “rails” where the pad ears touch.
• Do not get grease on pad friction material or the rotor face. If you do, clean with brake cleaner spray.

Step 9: Install the new pads

• Slide the new inner and outer pads into the bracket by hand.
• If a pad has a wear indicator tab, match it to how the original pads were installed.

Step 10: Reinstall the caliper and torque fasteners

• Lower the caliper over the new pads.
• Install the caliper slide pin bolts by hand first, then tighten using a 14mm socket and 3/8" ratchet.
• Torque to 25–35 Nm (18–26 ft-lbs) for the rear caliper slide pin bolts.
• If you removed the caliper bracket (not always required): reinstall and tighten with a 17mm socket, 1/2" breaker bar, then torque to 65–80 Nm (48–59 ft-lbs).

Step 11: Repeat on the other rear side

• Repeat Steps 5–10 on the opposite rear wheel.
• Always replace pads on both rear wheels.

Step 12: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a 21mm socket and 1/2" drive torque wrench to tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• With the engine off, slowly press the brake pedal 8–12 times until it feels firm (this seats the pistons to the pads).
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• If EPB: use your scan tool to exit EPB Maintenance/Service Mode, then apply/release the parking brake a few times to confirm normal operation.
• Road test at low speed first. Confirm no pulling, grinding, or warning lights.
• Pad bedding (break-in): do several gentle stops from 30–40 mph and allow cool-down between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor)

DIY Cost: $40–$120 (parts only)

You Save: $130–$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
