🔧 Outlander Sport - Rear Brake Pad Replacement

You’ll remove the rear calipers, swap in new brake pads (and hardware clips if included), then reassemble and pump the brake pedal to restore a firm pedal. On your Outlander Sport, the rear caliper piston typically must be pushed in while turning because the parking brake mechanism is built into the caliper.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Rear brakes are disc with a cable-operated parking brake at the caliper; torque specs below are best-fit when manual data isn’t available.

---

⚠️ Safety & Precautions

• 🛑 Work on level ground; chock the front wheels.
• 🛑 Release the parking brake before starting (rear calipers won’t come off correctly if it’s set).
• 🛑 Support the vehicle with jack stands; never rely on a floor jack alone.
• 🛑 Do not let the caliper hang by the brake hose; it can damage the hose.
• 🛑 Avoid breathing brake dust; use brake cleaner, not compressed air.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar (1/2")
• Torque wrench (1/2" drive, 20-150 ft-lbs range)
• 21mm socket
• 14mm socket
• 17mm socket
• Ratchet (3/8")
• Wire brush
• Brake caliper piston wind-back tool (specialty)
• Bungee cord
• Flathead screwdriver
• Needle-nose pliers
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad hardware kit (clips/shims) - Qty: 1
• High-temp silicone brake grease - Qty: 1
• Brake cleaner - Qty: 1
• Rear brake rotors - Qty: 2 (optional if worn/grooved)

---

📋 Before You Begin

• 🧰 Put the transmission in 1st gear (manual) and turn the engine off.
• 🧰 Release the parking brake fully.
• 🧰 Crack the rear lug nuts loose 1/2 turn before lifting (use a 21mm socket and breaker bar).
• 🧰 Open the hood and locate the brake fluid reservoir; be ready to remove a little fluid if it rises when you compress pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Chock the front wheels using wheel chocks.
• Lift the rear at a safe lift point using a floor jack (rated 3-ton minimum).
• Set the vehicle onto jack stands (rated 3-ton minimum) and gently shake-test for stability.
• Remove the rear wheels using a 21mm socket.

Step 2: Locate the rear caliper and inspect

• Look at the rear caliper, rotor, and brake hose. Use safety glasses and a flashlight if needed.
• Check rotor condition: deep grooves, heavy rust ridges, or blue heat spots usually mean new rotors are smart.

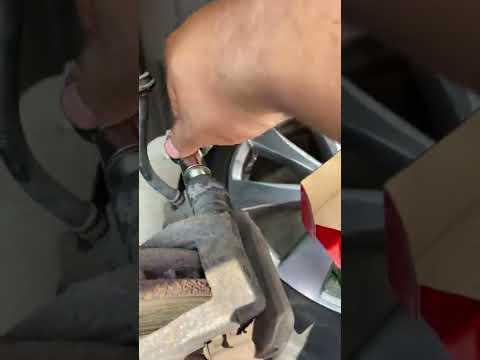

Step 3: Remove the caliper (do not remove the hose)

• Remove the two caliper slide pin bolts using a 14mm socket and ratchet (3/8").
• Lift the caliper off the bracket. If it’s stuck, gently pry with a flathead screwdriver.
• Hang the caliper from the suspension spring using a bungee cord. Never hang by the hose.

Step 4: Remove old pads and hardware

• Slide the old pads out of the bracket by hand; use needle-nose pliers if tight.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the bracket pad lands (where clips sit) using brake cleaner spray and a wire brush. Clean metal helps pads slide freely.

Step 5: Retract the rear caliper piston (push and turn)

• Remove the brake reservoir cap to reduce pressure (under the hood).
• Install a brake caliper piston wind-back tool (specialty) onto the piston.
• Turn the tool while applying gentle inward pressure until the piston fully retracts.
• Watch the brake fluid level; if it gets near “MAX,” remove a little with a clean method to prevent overflow.
• Wind-back tool: a tool that rotates and pushes the piston in.

Step 6: Grease contact points and install new hardware

• Install new pad clips from the rear brake pad hardware kit into the bracket.
• Apply a thin film of high-temp silicone brake grease to:
  • The bracket pad lands (where pads slide)
  • The pad backing plate ears (where they touch the clips)
• Do not get grease on pad friction material or rotor surfaces; clean mistakes with brake cleaner spray.

Step 7: Install the new pads

• Slide the new pads into the bracket by hand.
• If one pad has a wear indicator, match it the same way the old pads were installed.

Step 8: Reinstall the caliper

• Lower the caliper over the new pads.
• Reinstall the slide pin bolts using a 14mm socket.
• Torque to 25 Nm (18 ft-lbs) for the rear caliper slide pin bolts.

Step 9: (If removed) Reinstall the caliper bracket

• If you removed the bracket to replace rotors, reinstall bracket bolts using a 17mm socket.
• Torque to 90 Nm (66 ft-lbs) for the rear caliper bracket bolts.

Step 10: Reinstall wheels

• Reinstall the wheels and hand-thread lug nuts.
• Lower the vehicle off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (1/2" drive, 20-150 ft-lbs range).
• Torque to 100 Nm (74 ft-lbs) for wheel lug nuts.

---

✅ After Repair

• ✅ Pump the brake pedal 10-15 times before driving until the pedal feels firm.
• ✅ Check brake fluid level and top off only if needed (correct DOT rating per cap/owner’s manual).
• ✅ With engine running, test braking at low speed in a safe area.
• ✅ Re-apply and release the parking brake a few times to confirm normal operation.
• ✅ Pad bed-in (recommended): make 6-10 moderate stops from 30-40 mph, allowing short cool-down between stops. Avoid hard stops for 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
