🔧 GLE - Rear Brake Pad Replacement

Replacing the rear brake pads restores safe braking and prevents metal-to-metal damage to the rotors. On your GLE, the rear caliper piston pushes straight in (no electronic parking brake motor retract needed), but you must avoid stressing the brake hose and watch for a rear pad wear sensor (if equipped).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock rear brake system; hardware sizes may vary by package.

---

⚠️ Safety & Precautions

• 🛑 Work on level ground; support with jack stands before going under.
• 🛑 Never hang the caliper by the brake hose; use a hanger.
• 🛑 Brake dust is irritating—use brake cleaner, not compressed air.
• 🛑 Keep grease off pad friction material and rotor faces.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• 7mm hex bit socket
• E18 external Torx socket
• 18mm socket
• Flat trim screwdriver
• Needle-nose pliers
• Brake caliper piston compressor tool (specialty)
• Bungee cord or caliper hanger hook
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad wear sensor (if equipped) - Qty: 1
• Brake lubricant (silicone/ceramic brake grease) - Qty: 1
• Brake cleaner - Qty: 1
• Rear caliper guide pin bolts (recommended) - Qty: 2
• Rear caliper carrier bolts (recommended) - Qty: 2

---

📋 Before You Begin

• Park on a flat surface, shift to Park, and set the parking brake.
• Place wheel chocks at the front wheels.
• Crack the rear wheel lug bolts loose about 1/4 turn using a 17mm socket and breaker bar before lifting.
• Open the hood and check the brake fluid level; as you compress pistons, fluid rises. If it’s near MAX, remove a small amount with a clean method to prevent overflow.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Lift one rear corner with a floor jack (rated 3-ton minimum).
• Set the vehicle onto a jack stands (rated 3-ton minimum) at a proper lift point.
• Remove the wheel using a 17mm socket.

Step 2: Locate the caliper and wear sensor

• Turn the steering wheel slightly if needed for better access (rear access is usually fine).
• Look for a small wire plugged into the pad (often on one rear wheel). That’s the pad wear sensor.
• Unclip the sensor wire from its holders using a flat trim screwdriver.

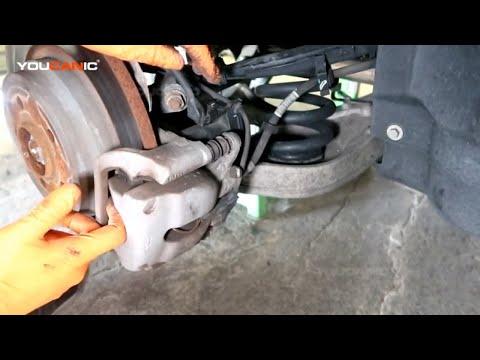

Step 3: Remove the caliper guide bolts

• On the back of the caliper, remove the two guide bolts using a 7mm hex bit socket and breaker bar (then switch to a ratchet if you have one).
• Slide the caliper off the pads and rotor.
• Support the caliper with a bungee cord or caliper hanger hook.

Step 4: Remove the old pads and hardware

• Pull the inner and outer pads out by hand. Use needle-nose pliers gently if they’re tight.
• If your pads have a wear sensor, unplug it from the pad and disconnect it from the vehicle-side connector using a flat trim screwdriver.
• Inspect the stainless pad abutment clips (if present). If they’re heavily rusted or bent, replace them (often included with pads).

Step 5: Compress the caliper piston

• Place the old inner pad against the piston face.
• Use a brake caliper piston compressor tool (specialty) to slowly push the piston straight back into the caliper.
• Go slowly and keep it square. Slow compression protects seals.
• Watch the brake fluid reservoir level while you compress.

Step 6: Clean and prep contact points

• Spray the bracket and pad channels with brake cleaner spray.
• Lightly brush rust from pad slide surfaces using a wire brush.
• Apply a thin film of brake lubricant (silicone/ceramic brake grease) to pad ears/backing plate contact points (not the pad friction material).

Step 7: Install the new pads and wear sensor

• Install the new inner and outer pads into the bracket by hand.
• If equipped, install the new wear sensor into the correct pad, then route and clip the wire back into the factory holders.

Step 8: Reinstall the caliper and torque fasteners

• Slide the caliper over the new pads.
• Install the guide bolts by hand first, then tighten with a 7mm hex bit socket.
• Torque to 30 Nm (22 ft-lbs) for the rear caliper guide bolts.
• If you removed the caliper carrier/bracket (not always required for pads-only), reinstall carrier bolts using an E18 external Torx socket (or 18mm socket, depending on bolt head style) and torque wrench: Torque to 115 Nm (85 ft-lbs).

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug bolts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug bolts in a star pattern using a 17mm socket and torque wrench.
• Torque to 130 Nm (96 ft-lbs).

Step 10: Repeat on the other rear wheel

• Repeat Steps 1–9 on the other side.
• Replace pads as an axle set (both rear sides). Never do just one side.

---

✅ After Repair

• With the engine off, pump the brake pedal 8–12 times until it feels firm (this seats the pistons to the new pads).
• Check brake fluid level and top off only if needed.
• Start the engine and confirm the pedal stays firm.
• Test at low speed first; verify no pulling, grinding, or warning lights.
• Pad bed-in (basic): make 6–10 gentle stops from 30–40 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
