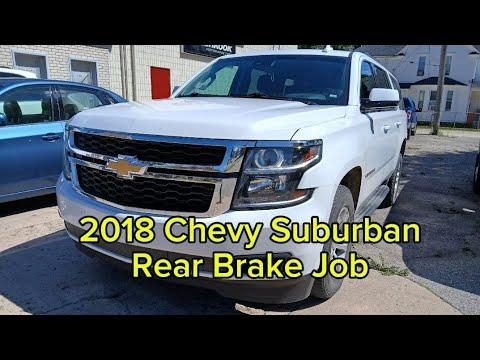

🔧 Suburban - Rear Brake Pad Replacement

On your Suburban, the rear brake pads clamp the rear brake rotor using a floating caliper. Replacing worn pads restores safe stopping power and prevents rotor damage from metal-to-metal contact.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the Suburban with jack stands—never rely on a floor jack alone.
• ⚠️ Release the parking brake before starting (this Suburban uses a mechanical parking brake; it can lock the rear rotors).
• ⚠️ Don’t press the brake pedal with the caliper removed.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ If brake fluid rises near the MAX line when compressing pistons, remove a little with a syringe to prevent overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-250 ft-lbs range)
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• C-clamp (6" minimum)
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad hardware kit (clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the engine off, and chock the front wheels.
• Release the parking brake fully (it’s foot-operated on this Suburban).
• Loosen the rear wheel lug nuts slightly before lifting.
• Open the hood and locate the brake fluid reservoir so you can watch the fluid level while compressing the caliper pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Use wheel chocks on the front wheels.
• Use a floor jack (rated 3-ton minimum) to lift the rear at the rear jacking point.
• Set the Suburban down onto jack stands (rated 3-ton minimum) under the frame.

Step 2: Remove the rear wheels

• Use a 22mm socket and breaker bar to remove the lug nuts.
• Remove both rear wheels to make access easier.

Step 3: Locate the rear caliper and remove the caliper bolts

• Find the rear brake caliper (it wraps around the rotor).
• Use a 13mm socket and 3/8" drive ratchet to remove the two caliper guide pin bolts.
• Guide pins are the sliding bolts the caliper moves on.

Step 4: Support the caliper (do not let it hang)

• Lift the caliper off the bracket by hand (use a flathead screwdriver gently if needed).
• Hang the caliper from the suspension using a bungee cord.
• Never hang it by the brake hose.

Step 5: Remove old pads and hardware

• Slide the old pads out of the bracket by hand.
• Remove the old pad clips from the bracket (use a flathead screwdriver if they’re stuck).
• Spray the bracket pad-contact areas with brake cleaner spray and scrub with a wire brush.

Step 6: Compress the caliper piston

• Place one old pad against the caliper piston.
• Use a C-clamp (6" minimum) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; stop if it’s about to overflow.

Step 7: Install new pad hardware and pads

• Install the new pad clips from the rear brake pad hardware kit (clips) into the bracket by hand.
• Apply a thin film of brake caliper grease (silicone) where the pad “ears” slide on the clips.
• Do not get grease on pad friction material.
• Install the new inner and outer pads into the bracket.

Step 8: Reinstall the caliper

• Lower the caliper over the new pads by hand.
• Install the guide pin bolts using a 13mm socket.
• Torque to 31 Nm (23 ft-lbs).

Step 9: Reinstall wheels

• Put the wheels back on and hand-thread the lug nuts.
• Lower the Suburban off the jack stands using the floor jack.
• Torque the lug nuts in a star pattern using a 22mm socket and 1/2" drive torque wrench: Torque to 190 Nm (140 ft-lbs).

Step 10: Seat the pads before driving

• With the engine off, pump the brake pedal slowly 8–12 times until it feels firm.
• Check brake fluid level and top off only if needed.

---

✅ After Repair

• Test pedal feel in Park first: the pedal should be firm and not sink.
• Do a slow test drive and verify normal braking with no grinding noises.
• Bed-in the pads: make 6–10 moderate stops from ~35 mph to 5 mph, with cool-down driving between stops.
• Recheck for leaks, and recheck lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $110-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
